Detail Information
Model Number::	1/2"-36"	Standard::	Astm A234 Astm A335
Wall Thickness::	SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS	DEGREE::	45° 90° 180°
Material Grade::	WP11, WP22, WP5, P9,P91, P92	Packaging Details::	According To Client Requirements/ Wooden Case Packing
High Light:	Long Diameter Seamless Elbow , Alloy Seamless Elbow , Seamless 45 degree elbow

BUTT-WELDING PIPE FITTINGS DETAILS
MATERIAL	Carbon Steel :
	ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn,
	DIN St37, St45.8, St52.4,St.35.8,St.35.8.
	Stainless Steel:
	1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti
	00Cr17Ni14Mo2 304 304L 316 316L
	Alloy Steel:
	16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,
	A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
STANDARD	ASTM / JIS / DIN / BS / GB/GOST
MODEL	1.Tee(Straight and Reducing) 2.180 DEG Return
	3.Elbow (45/90/180 DEG) 4.Cap
	5. Reducer(Concentric and Eccentric)
TYPE	Seam Or Seamless
ELBOW DEGREE	45 degree, 90 degree, 180 degree
SURFACE	Black Paint, Anti Rust Oil, Hot-Dipped Galvanize
WALL THICKNESS	SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60,
	SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM
SIZE	1/2"-48"(Dn15-Dn1200)
CONNECTION	Welding
SHAPE	Equal, Reducing
CERTIFICATE	ISO9001
APPLICATION	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
RELATED PRODUCTS	1. Carbon steel nipples and sockets	2. Flanges
	3. Malleable iron pipe fittings	4. Pipes
	5. High-pressure fittings	6. Valves
	7. P.T.F.E .thread seal tape	8. Brass fittings
	9. Ductile iron pipe fittings	10. Copper fittings
	11. Sanitary fittings, etc,.	12. Grooved fittings
Customers’ drawings or designs are available.
PACKAGE	1> 1/2" - 2" in cartons.
	2>Above 2" in wooden cases.
	Big size is workable by pallets.
DELIVERY DETAILS	According to the quantities and specifications of each order.
	Normal delivery time is from 15to 20 days after receiving the deposit.

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90o L/R Elbow Center To End A	45o L/R Elbow Center To End B	90o S/R Elbow Center To End A
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00

Grade	C	Mn	P≤	S≤	Si	Cr	Mo
P11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P22	0.05-0.16	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
P5	≤0.15	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
P9	≤0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10
P91	0.08-0.12	0.30-0.60	0.020/0.010	0.020/0.010	0.02-0.50	8.00-9.50	0.85-1.05
P92	0.07-0.13	0.30-0.60	0.020/0.010	0.020/0.010	≤0.50	8.50-9.50	0.30-0.60

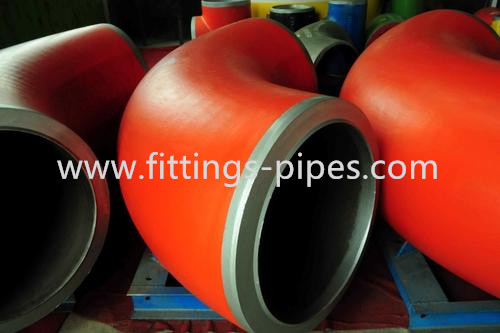

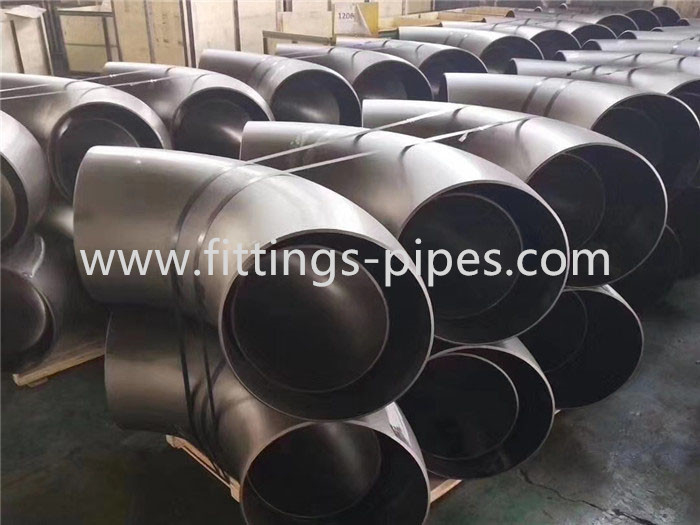

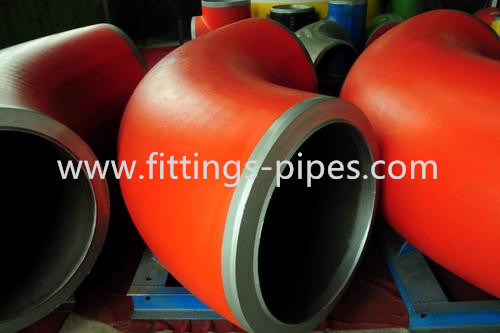

A234GR. WP11-S Long Diameter Alloy Seamless Elbow 20" 45° S60

Long Diameter Seamless Elbow

Alloy Seamless Elbow

Seamless 45 degree elbow

A234GR. WP11-S alloy seamless long diameter elbow 20"*45°*S60 superior material
