Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PC
Price:	Discussion
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	T/T, L/C at sight
Supply Ability:	2 Million Ton/Year

Detail Information
Model Number::	1/2"-36"	Material Grade::	WP11, WP22, WP5, P9,P91, P92
Standard::	ASTM A234	Wall Thickness::	SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
DEGREE::	45° 90° 180°	Packaging Details::	According To Client Requirements/ Wooden Case Packing
High Light:	90 Degree Steel Pipe Elbow , Astm A234 Steel Pipe Elbow , SCH10 90 Degree Pipe Elbow

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.622	0.109	1.5	40	0.16
3/4	1.05	0.824	0.113	1.5	40	0.17
1	1.32	1.049	0.133	1.5	40	0.4
1 1/4	1.66	1.38	0.14	1.88	40	0.55
1 1/2	1.9	1.61	0.145	2.25	40	0.8
2	2.38	2.07	0.154	3	40	1.6
2 1/2	2.88	2.47	0.203	3.75	40	3.2
3	3.5	3.07	0.216	4.5	40	4.8
3 1/2	4	3.55	0.226	5.25	40	6.6
4	4.5	4.03	0.237	6	40	8.9
5	5.56	5.05	0.258	7.5	40	15.1
6	6.62	6.07	0.28	9	40	24
8	8.62	7.98	0.322	12	40	47.8
10	10.75	10.02	0.365	15	40	83.4
12	12.75	12	0.375	18	*	123
14	14	13.25	0.375	21	30	155
16	16	15.25	0.375	24	30	206
18	18	17.25	0.375	27	*	262
20	20	19.25	0.375	30	20	324
24	24	23.25	0.375	36	20	466
30	30	29.25	0.375	45	*	720
36	36	35.25	0.375	54	*	1,039
42	42	41.25	0.375	63	*	1,420
48	48	47.25	0.375	72	*	2,000

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.546	0.147	1.5	80	0.26
3/4	1.05	0.742	0.154	1.5	80	0.29
1	1.32	0.957	0.179	1.5	80	0.48
1 1/4	1.66	1.27	0.191	1.88	80	0.79
1 1/2	1.9	1.5	0.2	2.25	80	1.2
2	2.37	1.93	0.218	3	80	2.1
2 1/2	2.88	2.32	0.276	3.75	80	3.8
3	3.5	2.9	0.3	4.5	80	6.3
3 1/2	4	3.36	0.318	5.25	80	8.6
4	4.5	3.82	0.337	6	80	12.5
5	5.56	4.81	0.375	7.5	80	21.2
6	6.63	5.76	0.432	9	80	34.4
8	8.63	7.63	0.5	12	80	71.3
10	10.75	9.75	0.5	15	60	111
12	12.75	11.75	0.5	18	*	158
14	14	13	0.5	21	*	201
16	16	15	0.5	24	40	270
18	18	17	0.5	27	*	348
20	20	19	0.5	30	30	422
24	24	23	0.5	36	*	604
30	30	29	0.5	45	20	997
36	36	35	0.5	54	20	1,380
42	42	41	0.5	63	*	1,880
48	48	47	0.5	72	*	2,502

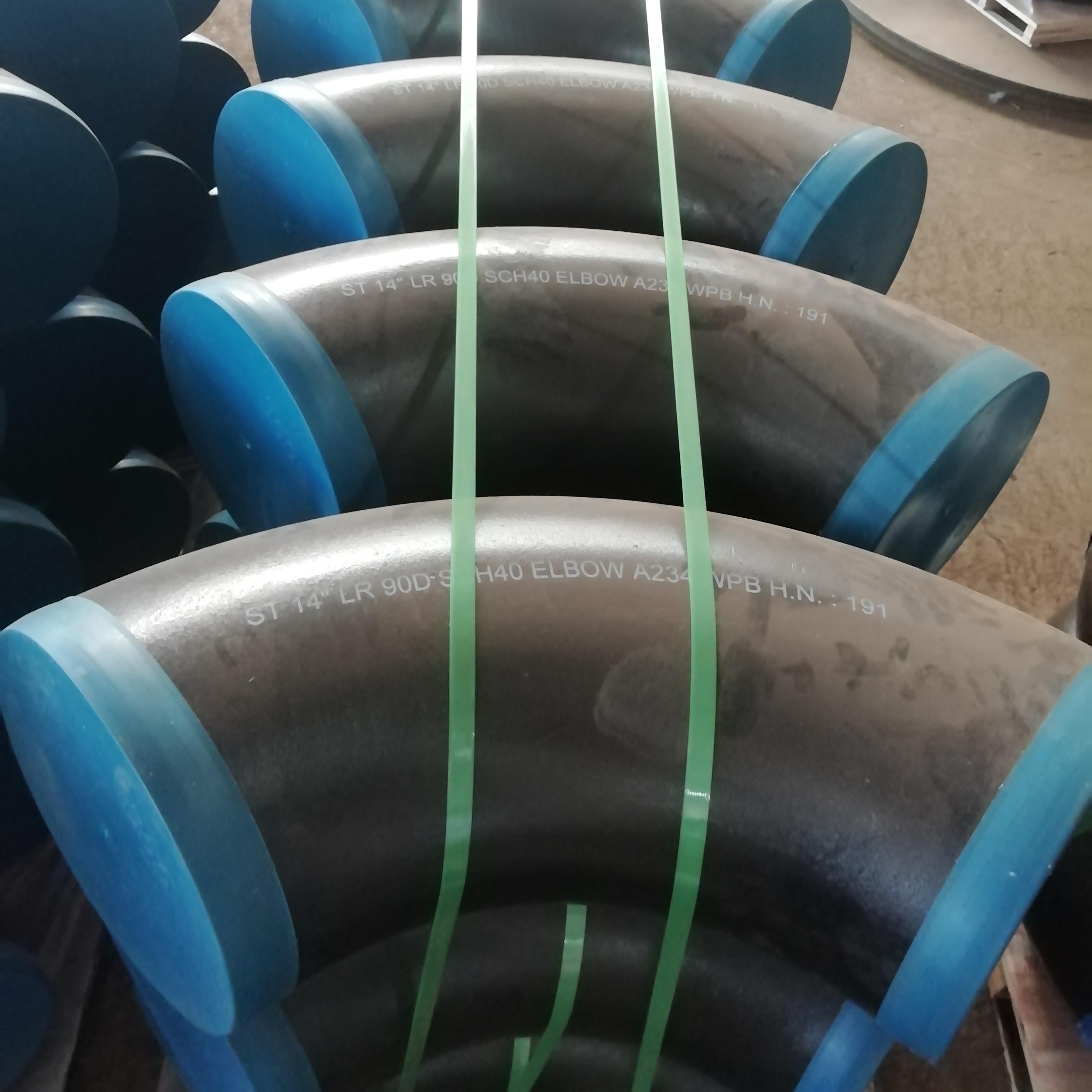

90 Degree Steel Pipe Elbow Astm A234 Asme B16.9 SCH10 SCH20 Thickness

90 Degree Steel Pipe Elbow

Astm A234 Steel Pipe Elbow

SCH10 90 Degree Pipe Elbow

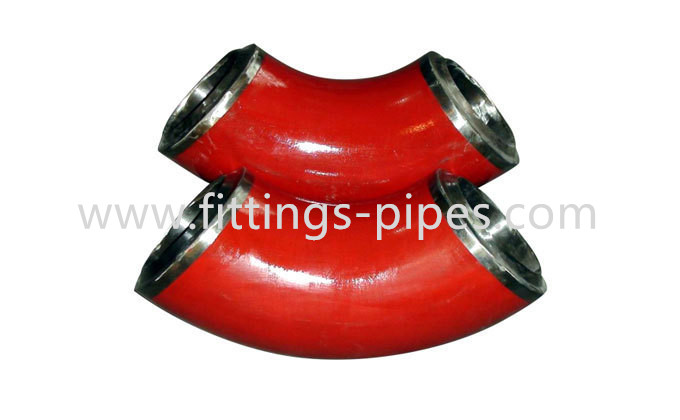

Steel Pipe Elbow Steel Fitting, Elbow 90deg Lr Bw Astm A234 Wp11, Wp22, Asme B16.9

Long Radius Elbow 90DEG

Standard

Nominal Pipe Size

Outside Diameter

Inside Diameter

Wall Thickness

Center To End

Pipe Schedule

Weight Pounds

1/2

0.84

0.622

0.109

1.5

40

0.16

3/4

1.05

0.824

0.113

1.5

40

0.17

1

1.32

1.049

0.133

1.5

40

0.4

1 1/4

1.66

1.38

0.14

1.88

40

0.55

1 1/2

1.9

1.61

0.145

2.25

40

0.8

2

2.38

2.07

0.154

3

40

1.6

2 1/2

2.88

2.47

0.203

3.75

40

3.2

3

3.5

3.07

0.216

4.5

40

4.8

3 1/2

4

3.55

0.226

5.25

40

6.6

4

4.5

4.03

Nominal
Pipe Size

Outside
Diameter

Inside
Diameter

Wall
Thickness

Center
To End

Pipe
Schedule

Weight
Pounds
