Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | hongcheng |
Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
Model Number: | 1/2" TO 44 " |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PC |
Price: | consult |
Packaging Details: | Plywood Cases or Pallets |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 2 Million Ton/Year |
Detail Information |
|||
Model Number :: | Elbow | Price :: | 10-100 Pieces US $2/ Piece;>100 Pieces US $1.5/ Piece |
---|---|---|---|
Standard:: | ANSIB16.9 | Wall Thickness:: | Sch10-sch160 |
Packaging Details :: | Plywood Cases, Pallets, Nylon Bags, Wooden Catron | Size:: | Customized Size |
High Light: | Sch40 Steel Pipe Elbow Hot Pushing,Dn200 Steel Pipe Elbow,Dn200 ODM Pipe Elbow Fitting |
Product Description

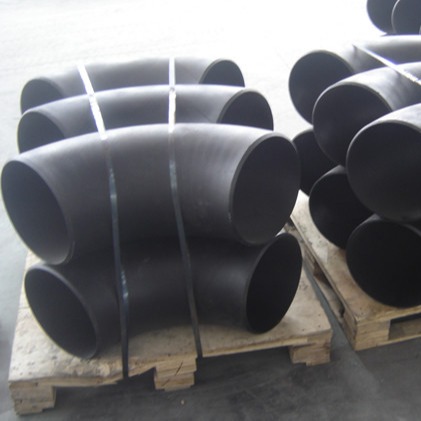

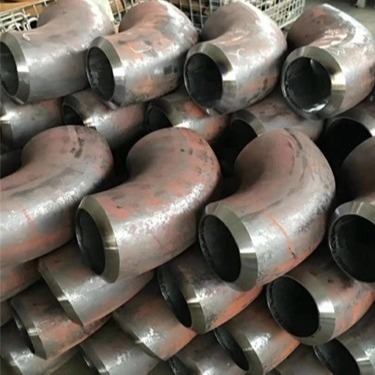

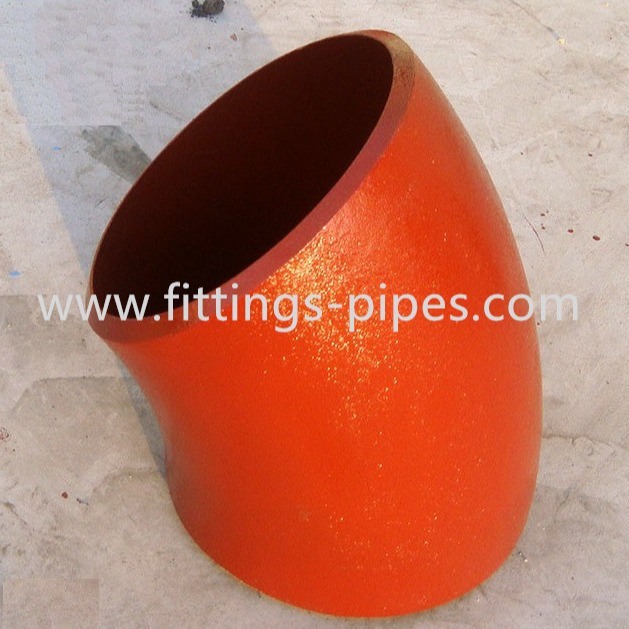

Customized Large Diameter High Pressure High Strength Stainless Steel Pipe Fitting Elbow
Stainless Steel Pipe Fitting Elbow is a key part in a pressure piping system used to change.
the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe and thus the fluid direction turn to a certain direction of 45 degree or 90 degree. This change in fluid flow direction adds pressure losses to the system due to impact, friction and reacceleration.
Customized Large Diameter High Pressure High Strength Stainless Steel Pipe Fitting Elbow
Stainless Steel Pipe Fitting Elbow is a key part in a pressure piping system used to change.
the fluid flow direction. It is used to connect two pipes with same or different nominal diameters, and to make the pipe and thus the fluid direction turn to a certain direction of 45 degree or 90 degree. This change in fluid flow direction adds pressure losses to the system due to impact, friction and reacceleration.
Product Description
Size |
Seamless (SMLS) fittings: 1/2"-24", DN15-DN600. |
|
Butt Welded fittings (seam) 24"-72", DN600-DN1800. |
||
We also accept customized type |
||
Type |
1/2"-72" |
|
DN15-DN1800 |
||
Thickness |
SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS. |
|
Standard |
ASME B16.9, ASTM A234, ASTM A420, ANSI B16.9/B16.25/B16.28; MSS SP-75 |
|
DIN2605-1/2615/2616/2617; |
||
JIS B2311 ,2312,2313; |
||
EN 10253-1 ,EN 10253-2, etc |
||
we can also produce according to drawing and standards providedby customers. |
||
Material |
ASTM |
Carbon steel (ASTM A234WPB, A234WPC, and A420WPL6.) |
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2, ect.) |
||
Alloy Steel: A234WP12, A234WP11, A234WP22, A234WP5,A420WPL6, A420WPL3. |
||
DIN |
Carbon steel:St37.0,St35.8,St45.8; |
|
Stainless steel:1.4301,1.4306,1.4401,1.4571; |
||
Alloy steel:1.7335,1.7380,1.0488(1.0566); |
||
JIS |
Carbon steel:PG370,PT410; |
|
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321; |
||
Alloy steel:PA22,PA23,PA24,PA25,PL380; |
||
GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo. |
|
Surface |
Transparent oil, rust-proof black oil or hot galvanized. |
|
Applications |
Petroleum, chemical, machinery, boiler, electric power, shipbuilding, construction, etc |
|
Warranty |
We guarantee 1 year product quality |
|
Delivery time |
20days after receipt of advanced payment ,Common size large quantity in stock |
|
Payment term |
T/T, L/C, |
Stainless Steel Pipe Fitting ElbowDimensions
90° ELBOW | |||
Size | Dim. | Dim. | Approx. Weight in Pounds |
A | B | ||
1/8″ | 0.69 | 0.66 | 0.06 |
1/4″ | 0.8 | 0.8 | 0.1 |
3/8″ | 0.94 | 0.97 | 0.15 |
1/2″ | 1.11 | 1.17 | 0.22 |
3/4″ | 1.24 | 1.38 | 0.32 |
1″ | 1.43 | 1.74 | 0.52 |
1-1/4″ | 1.72 | 2.07 | 0.76 |
1-1/2″ | 1.87 | 2.36 | 0.99 |
2″ | 2.25 | 2.86 | 1.49 |
2-1/2″ | 2.68 | 3.57 | 2.78 |
3″ | 3.05 | 4.23 | 4.41 |
4″ | 3.72 | 5.24 | 6.72 |
45° ELBOW | |||
Size | Dim. | Dim. | Approx. Weight in Pounds |
A | B | ||
1/8″ | 0.62 | 0.65 | 0.08 |
1/4″ | 0.69 | 0.81 | 0.12 |
3/8″ | 0.75 | 0.96 | 0.19 |
1/2″ | 0.87 | 1.16 | 0.25 |
3/4″ | 0.96 | 1.38 | 0.36 |
1″ | 1.11 | 1.74 | 0.58 |
1-1/4″ | 1.28 | 2.07 | 0.85 |
1-1/2″ | 1.38 | 2.36 | 1.12 |
2″ | 1.61 | 2.85 | 1.61 |
2-1/2″ | 1.93 | 3.57 | 2.36 |
3″ | 2.15 | 4.23 | 3.44 |
4″ | 2.58 | 5.24 | 5.42 |
45° ELBOW | |||
Size | Dim. | Dim. | Approx. Weight in Pounds |
A | B | ||
1/8” | 0.76 | 0.62 | 0.05 |
1/4” | 0.84 | 0.81 | 0.1 |
3/8” | 0.98 | 0.96 | 0.17 |
1/2” | 1.13 | 1.16 | 0.27 |
3/4” | 1.31 | 1.4 | 0.39 |
1” | 1.45 | 1.74 | 0.65 |
1-1/4” | 1.75 | 2.07 | 1.03 |
1-1/2” | 0.8 | 2.36 | 1.28 |
2” | 2.27 | 2.9 | 1.92 |
2-1/2” | 2.69 | 3.57 | 0.29 |
3” | 3.09 | 4.2 | 4.46 |
4” | 3.85 | 5.24 | 6.9 |
