Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity:	10PC
Price:	consult
Packaging Details:	wooden cases, wooden or steel pallet, plastic bag or customized
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Detail Information
Elbow::	45 And 90°, LR And SR, From 1/2 To 72 Inches	Price ::	10-100 Pieces US $2/ Piece;>100 Pieces US $1.5/ Piece
Process Method::	Bending, Squeezing, Pressing, Forging And Machining	Wall Thickness::	SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
Packaging Details ::	Plywood Cases, Pallets, Nylon Bags, Wooden Catron	Packing::	Wooden Cases, Wooden Or Steel Pallet, Plastic Bag Or Customized
High Light:	180Degree Carbon Steel Elbow , Squeezing A234 Carbon Steel Elbow , Bending Elbow Astm A234 Squeezing

BUTT-WELDING ELBOW PIPE FITTINGS DETAILS
MODEL	Elbow
MATERIAL	Carbon steel
STANDARD	ASME B16.9,ASME B16.28,DIN2605,JISB2311 etc.
SURFACE	Black Paint, Electrogalvanizing, Hot-Dipped Galvanize, Anti Rust Oil.
WALL THICKNESS	SCH10-SCHXXS
SIZE	Seamless Fittings 1/2"-24" (DN15-DN600), Welded Fittings 26"-80" (DN650-DN2000)
CONNECTION	Butt Welding
CERTIFICATE	ISO9001,PED.
APPLICATION	Petroleum, gas, chemical, shipbuilding, metallurgy, construction, etc.
PACKAGE	Plywood Pallets/ Wooden Case Or As Per Your Specification.
DELIVERY DETAILS	According to the quantities and specifications of each order.
DELIVERY DETAILS	Normal delivery time is from 30 to 45 days after receiving the deposit.
Customers’ drawings or designs are available.

Grade	Carbon	Managa nese	Posp horus , max	Sulfur. max	Silicon	Chro mium	Molyb denum	Nickel	Cop per	Others
WPB	0.30 max	0.29-1.06	0.050	0.058	0.10 min	0.40 max	0.15 max	0.40 max	0.40 max	Vanadium 0.08 max; Columbium 0.02 max
WPC	0.35 max	0.29-1.09	0.050	0.058	0.10 min	0.40 max	0.15 max	0.40 max	0.40 max	Vanadium 0.08 max; Columbium 0.02 max
WP1	0.28 max	0.30-0.90	0.045	0.045	0.10-0.50		0.44-0.65
WP12CLI; WP12 CL2	0.05-0.20	0.30-0.80	0.045	0.045	0.60 max	0.80-1.25	0.44-0.65
WP11 CL1	0.05-0.15	0.30-0.60	0.030	0.030	0.50-1.00	1.00-1.50	0.44-0.65
WP11 CL2; WP11 CL3	0.05-0.20	0.30-0.80	0.040	0.040	0.50-1.00	1.00-1.50	0.44-0.65
WP22 CL1; WP22 CL3	0.05-0.15	0.30-0.60	0.040	0.040	0.50 max	1.90-2.60	0.87-1.13
WP5 CL1; WP5 CL3	0.15 max	0.30-0.60	0.040	0.030	0.5 max	4.0-6.0	0.44-0.65
WP9 CL1; WP9 CL3	0.15 max	0.30-0.60	0.030	0.030	1.00 max	8.0-10.0	0.90-1.10
WPR	0.20 max	0.40-1.06	0.045	0.050				1.60-2.24	0.75-1.25
WP91	0.08-0.12	0.30-0.60	0.020	0.010	0.20-0.50	8.0-9.5	0.85-1.05	0.40 max		Vanadium 0.18-0.25; Columbium 0.06-0.10; nitrogen 0.03-0.07; Aluminum 0.04 max
WP911	0.09-0.13	0.30-0.60	0.020	0.010	0.10-0.50	8.5-10.5	0.90-1.10	0.40 max		Vanadium 0.18-0.25; Columbium 0.060-0.10; Nitrogen 0.04-0.09; Aluminum 0.04 max; Boron 0.0003-0.006; Tungsten 0.90-1.10

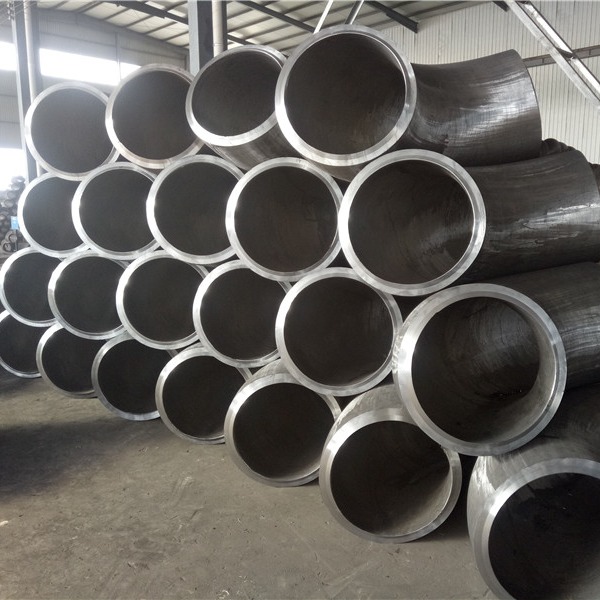

180 Degree Carbon Steel Elbow Astm A234 With Bending Squeezing Process

180Degree Carbon Steel Elbow

Squeezing A234 Carbon Steel Elbow

Bending Elbow Astm A234 Squeezing

Astm A234 Wp5 Alloy Steel Pipe Fittings 180 Deg Sr Elbow Seamless Carbon Steel Elbow Steel Pipe Elbow

A234 WP5 Alloy Steel Elbow : Material:carbon steel,stainless steel and alloy steel Standard:ASME/ASTM/DIN/JIS/GOST/EN

A234 WP5 Alloy Steel Elbow

BUTT-WELDING ELBOW PIPE FITTINGS DETAILS

MODEL

Elbow

MATERIAL

Carbon steel

STANDARD

ASME B16.9,ASME B16.28,DIN2605,JISB2311 etc.

SURFACE

Black Paint, Electrogalvanizing, Hot-Dipped Galvanize, Anti Rust Oil.

WALL THICKNESS

SCH10-SCHXXS

SIZE

Seamless Fittings 1/2"-24" (DN15-DN600), Welded Fittings 26"-80" (DN650-DN2000)

CONNECTION

Butt Welding

CERTIFICATE

ISO9001,PED.

APPLICATION

Petroleum, gas, chemical, shipbuilding, metallurgy, construction, etc.

PACKAGE

Plywood Pallets/ Wooden Case Or As Per Your Specification.

DELIVERY DETAILS

According to the quantities and specifications of each order.

Normal delivery time is from 30 to 45 days after receiving the deposit.

Customers’ drawings or designs are available.

Name:A234 Pipe Fittings,butt welded pipe fittings,elbow,tee,reducer,cap etc

A234 Pipe Fittings,butt welded pipe fittings,elbow,tee,reducer,cap etc

1. Elbow, reducer, tee, cross, pipe cap and bend. 2. Superior quality 3. Reasonable price

A234 Pipe Fittings

Standard Specification: Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High

Temperature Service. The material for fittings shall consist of killed steel, forgings, bars, plates, seamless

or fusion-welded tubular products with filler metal added and shall conform to the chemical requirements.

Manufacture

Forging or shaping operations may be performed by hammering, pressing, piercing, extruding, upsetting, rolling,

bending, fusion welding, machining, or by a combination of two or more of these operations.

Chemical Requirements

Grade

Carbon

Managa

nese

Posp

horus

, max

Sulfur.

max

Silicon

Chro

mium

Molyb

denum

Nickel

Cop

per

Others

WPB

0.30

max

0.29-1.06

0.050

0.058

0.10

min

0.40

max

0.15

max

0.40

max

0.40

max

Vanadium

0.08 max;

Columbium

A234 WP5 Alloy Steel Elbow :
Material:carbon steel,stainless steel and alloy steel
Standard:ASME/ASTM/DIN/JIS/GOST/EN

1. Elbow, reducer, tee, cross, pipe cap and bend.
2. Superior quality
3. Reasonable price
