Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | Pcoc, Reach, Iecee, Scoc, Epa, Gs |
| Model Number: | 1/2" TO 24 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10PC |
| Price: | consult |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Certification :: | ASME, ANSI, DIN, JIS, BS, KS | Material :: | Alloysteel |
|---|---|---|---|
| Wall Thickness: | Sch5-Sch160 XXS,STD,XS, SGP | Angle: | 30° 45° 90 ° 180°,etc |
| Material:: | Stainless Steel | Surface:: | Sandblasting, Sand Rolling, Painting Or As Needed |
| Purpose:: | Turning Or Turning Corners | Supply Ability:: | 5000 Tons/Month |

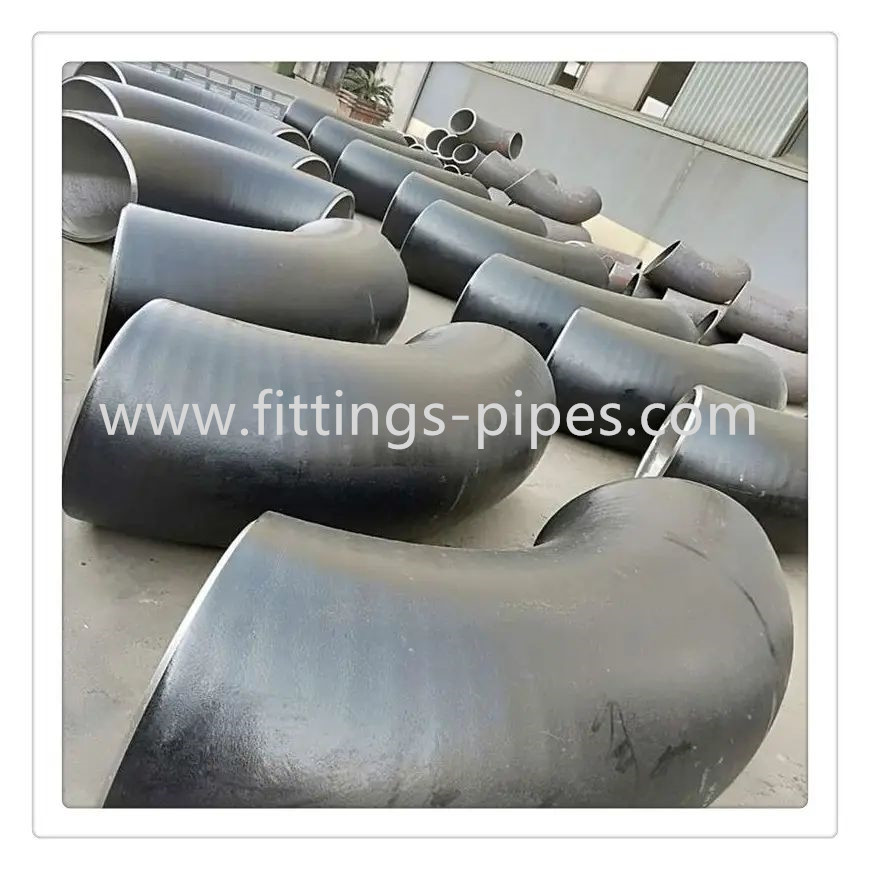

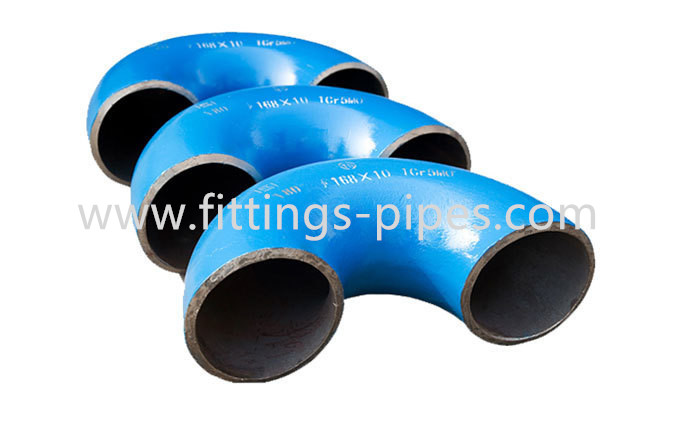

| High Light: | Seamless 90 degree elbow,Long Diameter Elbow Fitting,Alloy Steel 90 degree elbow |
||
Product Description
Hebei Hongcheng Pipe Industry Co., Ltd. was established in 1992 and is located in the Development Zone of Yanshan County, Hebei Province. We are one of the largest steel product manufacturers on the coast of the Bohai Sea. A three-dimensional comprehensive transportation network has been formed. Our geographical position is superior and the transportation is very convenient.
We are one of the biggest manufacturer for steel products with a 80, 000-square-meter workshop,covers an area more than 120,000 square meters in size ,and well over 50 million USD in assets.our main products including stainless steel pipe ,stainless steel plate,stainless steel bar,seamless steel pipe ,low temperature steel pipe ,alloy steel pipe ,boiler pipe ,carbon steel plate ,alloy steel plate ,pipe fitting,copper products,titanium products and nickel products.our company has the most advanced production equipment which guarantee the most advantageous product quality.Based on highly quality products and best service,we have develop clients all round the world ,our products are widely used in industry in USA ,Germany ,India ,Dubai,Iraq,Viet Nam,Ireland,Sinagpore,and so on .
Our goal is offer the best quality products with the lowest price and best service . We believe that our company will have a speed develop with the support from both at home and at abroad
We warmly welcome and looking forward to have a nice cooperation with company both at home and at abroad.
Product Description
Item
Alloy pipes and fittings made in China
Standard
JISG3467-88,JISG3458-88,GB3087,GB6479-2000,GB9948-2006, GB5310-95,GB9948-88,ASME SA210,ASME SA213,ASTM SA335, ASTMA335/A335m,ASTMA213/A213m,DIN 17175
Model No.
12Cr1MoV,P2(10CrMo910),T91,P91,P9,T9,Cr5Mo,15CrMo,P11,P12, 13CrMo44,25CrMo,30CrMo,40CrMo,12CrMo,X12CrMo91,12Cr2Mo
Characteristics and scope of application:
High strength and hardenability of 20Mng. The plasticity during cold deformation is medium and the machinability is good, but the weldability is poor. It is suitable for quenching and tempering. It is suitable for rotating shafts, bolts, nuts, screws, etc., mandrels, gears
It is used for manufacturing bolts, nuts, levers, etc. in heavy machinery, with slightly higher hardenability, low weldability, hypersensitivity and temper brittleness, easy to crack after water quenching, and suitable for fatigue resistance.
| Product name | Material | Standard | Size(mm) | Application |
|
Low temperature tube |
16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333 |
GB/T18984-2003 ASTM A333 |
OD:8-1240* WT:1-200 |
Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe |
|
High-pressure boiler tube |
20G ASTMA106B ASTMA210A ST45.8-III |
GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79 |
OD:8-1240* WT:1-200 |
Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc |
| Petroleum cracking tube |
10 20 |
GB9948-2006 |
OD: 8-630* WT:1-60 |
Used in oil refinery furnace tube, heat exchanger tube |
|
Low medium pressure boiler tube |
10# 20# 16Mn,Q345 |
GB3087-2008 |
OD:8-1240* WT:1-200 |
Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler |
|
General structure of the tube |
10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345 |
GB/T8162- 2008 GB/T17396- 1998 ASTM A53 |
OD:8-1240* WT:1-200 |
Apply to the general structure, engineering support, mechanical processing, etc |
|
Oil casing |
J55,K55,N80,L80 C90,C95,P110 |
API SPEC 5CT ISO11960 |
OD:60-508* WT:4.24-16.13 |
Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall |
| Product name | Material | Standard | Size(mm) | Application |
|
Low temperature tube |
16MnDG 10MnDG 09DG 09Mn2VDG 06Ni3MoDG ASTM A333 |
GB/T18984-2003 ASTM A333 |
OD:8-1240* WT:1-200 |
Apply to - 45 ℃ ~ 195 ℃ low temperature pressure vessel and low temperature heat exchanger pipe |
|
High-pressure boiler tube |
20G ASTMA106B ASTMA210A ST45.8-III |
GB5310-1995 ASTM SA106 ASTM SA210 DIN17175-79 |
OD:8-1240* WT:1-200 |
Suitable for manufacturing high pressure boiler tube, header, steam pipe, etc |
| Petroleum cracking tube |
10 20 |
GB9948-2006 |
OD: 8-630* WT:1-60 |
Used in oil refinery furnace tube, heat exchanger tube |
|
Low medium pressure boiler tube |
10# 20# 16Mn,Q345 |
GB3087-2008 |
OD:8-1240* WT:1-200 |
Suitable for manufacturing various structure of low and medium pressure boiler and locomotive boiler |
|
General structure of the tube |
10#,20#,45#,27SiMn ASTM A53A,B 16Mn,Q345 |
GB/T8162- 2008 GB/T17396- 1998 ASTM A53 |
OD:8-1240* WT:1-200 |
Apply to the general structure, engineering support, mechanical processing, etc |
|
Oil casing |
J55,K55,N80,L80 C90,C95,P110 |
API SPEC 5CT ISO11960 |
OD:60-508* WT:4.24-16.13 |
Used for extraction of oil or gas in oil Wells casing, used in oil and gas well sidewall |
Mechanical Property:
| Standard | Grade | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| ≤16 | >16-30mm | ||||
| GB/T8162-1999 | 10 | 335 | 205 | 195 | 24 |
| 20 | 390 | 245 | 235 | 20 | |
| 35 | 510 | 305 | 295 | 17 | |
| 45 | 590 | 335 | 325 | 14 | |
| 16Mn | 490 | 325 | 315 | 21 | |
| GB/T8163 | 10 | 335~475 | ≥205 | ≥24 | |
| 20 | 410~550 | ≥245 | ≥20 | ||
| Q345 | 490~665 | ≥325 | ≥21 | ||
| GB/T3087 | 10 | 333-475 | ≥196 | ≥24 | |
| 20 | 392-588 | ≥245/226 | ≥20 | ||
| GB/T5310 | 20G | 410-550 | ≥245 | ≥24 | |
| 12CrMoG | 410-560 | ≥205 | ≥21 | ||
| 15CrMoG | 450-640 | ≥235 | ≥21 | ||
| 12Cr1MoVG | 470-640 | ≥255 | ≥21 | ||
| GB/T9948 | 10 | 330-490 | ≥205 | ≥24 | |
| 20 | 410-550 | ≥245 | ≥21 | ||
| 12CrMoG | 410-560 | ≥205 | ≥21 | ||
| 15CrMoG | 410-640 | ≥235 | ≥21 | ||
| GB/T6479 | 10 | 330-490 | ≥205 | ≥24 | |
| 20 | 410-500 | ≥245 | ≥21 | ||
| 12CrMo | 410-560 | ≥205 | ≥21 | ||
| 15CrMo | 440-640 | ≥235 | ≥21 | ||
Product Parameters
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B | 90° Center to End A | 45° Center to End B |
| 1/2 | 21.3 | 38 | 16 | ||
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1¼ | 42.2 | 48 | 25 | 95 | 39 |
| 1½ | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2½ | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3½ | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
3.1 MTC IS OFFERED AFTER THE ORDER PLACED AND SHIPPED TOGETHER WITH THE CARGO.
DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
| NPS | O.D. at Bevel (1), (2) |
I.D. at End |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ |
0.06 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 |
0.09 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 |
0.16 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 |
0.25 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 |
0.25 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 |
0.25 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
