Hebei Hongcheng Pipe Fittings Co., Ltd.

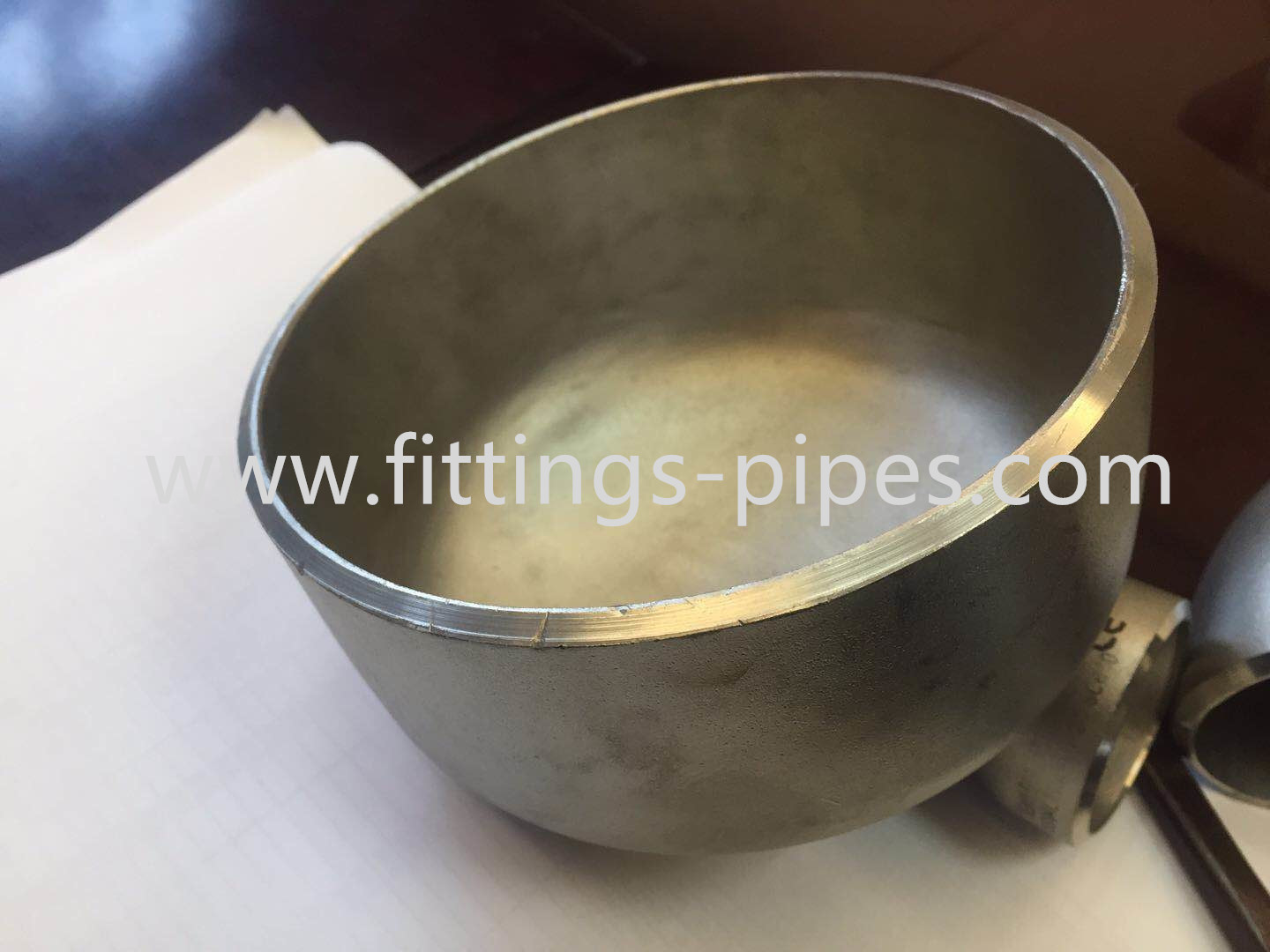

ASTM A105 SCH80 14inch Carbon Steel End Cap Hot Rolled And Cold Rolled

Product Details:
Place of Origin: China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 36 "
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: Discuss on request
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Standard: ASTM A335,ASTM A213,JIS G3458,JIS A3462,DIN17175,GB5310,GB9948 Download: Hot Rolled Cold Rolled Erw
Thickness :: SCH5S, SCH10S, SCH20S,SCH20, SCH30,STD, SCH40, SCH60, SCH80, SCH100, SCH140, SCH160,XS End Protector:: Carbon Steel Pipe Cap
Payment Terms :: L/C, D/A, D/P, T/T, Western Union, MoneyGram Pipe Cap:: Hot Press Molding
Material:: Carbon Steel Alloy Stainless Steel Surface:: Sandblasting, Bright Mouth Painting
High Light:

14inch carbon steel end cap

,

SCH80 carbon steel end cap

,

14inch carbon steel pipe cap

Product Description

ASTM A105 SCH80 14 inch carbon steel end cap hot rolled and cold rolled

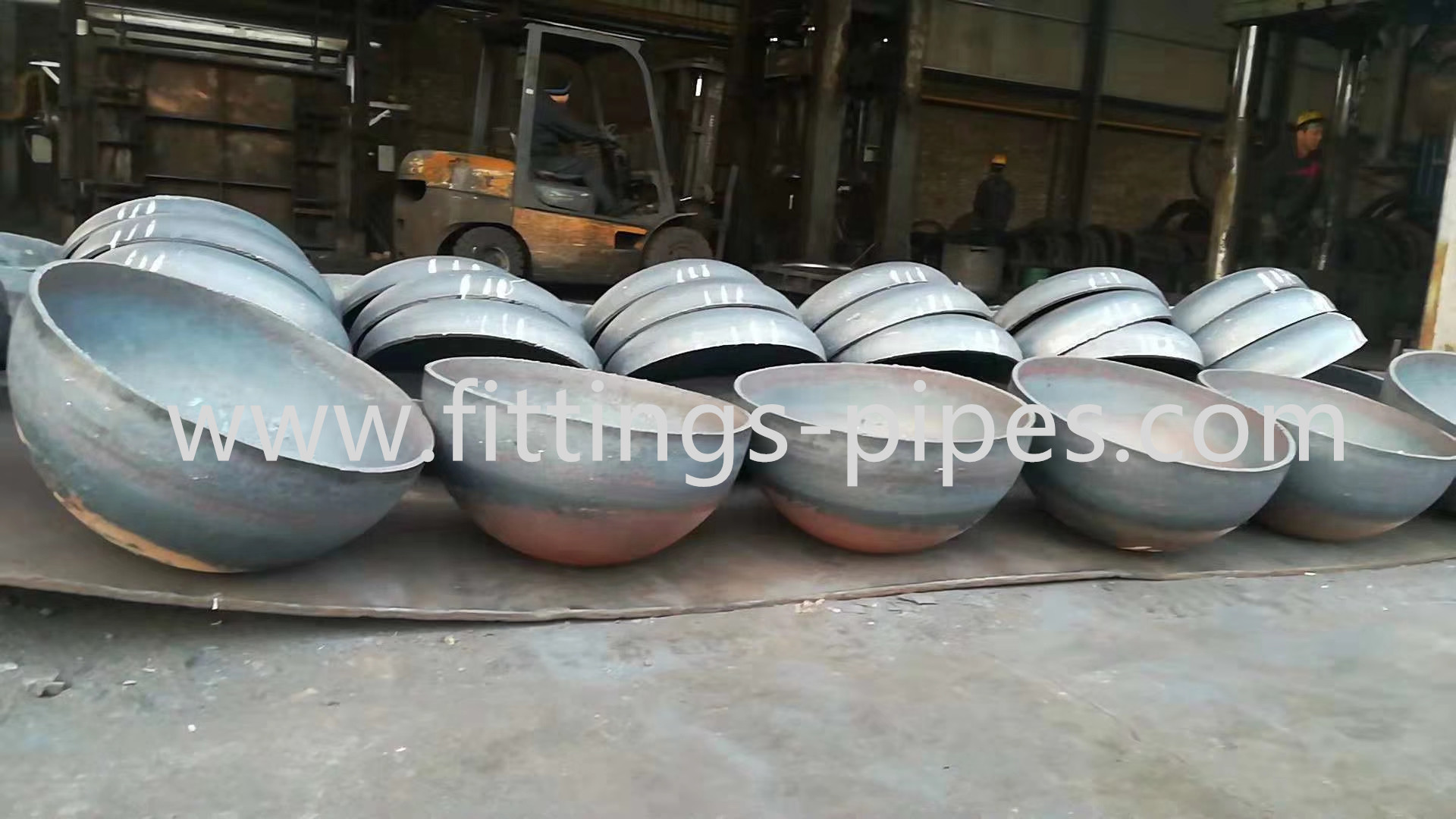

The head is a component of a container that connects the cylinder by welding. (As shown in the figure below) According to different geometric shapes, they can be divided into spherical, elliptical, dished, spherical crown, conical shell, and flat cap types, among which spherical, elliptical, dished, and spherical crown type heads are collectively referred to as convex heads. In welding, it is divided into butt welding heads and socket welding heads. Used for various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers, and separation equipment. Materials include carbon steel (A3, 20 #, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3, 15CrMoV, 35CrMoV, 45CrMo), aluminum, titanium, copper, nickel, and nickel alloys, etc



Executive standards

Executive standard of head:

Pressure Vessel Head GB/T25198-2010

Piping Standards

GB/T12459-2005

GB/T13401-2005

Electricity standards

DL/T695-1999

D-GD87-0607

Petrochemical standards

SH3408-1996

Alloy hemispherical head

Alloy hemispherical head

SH3409-1996



ASTM A105 SCH80 14inch Carbon Steel End Cap Hot Rolled And Cold Rolled 0



ASTM A105 SCH80 14inch Carbon Steel End Cap Hot Rolled And Cold Rolled 1



Name Carbon steel pipe fittings, plastic caps
Products Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange
Size

Seamless(SMLS) : 1/2"-24" ,DN15-DN600

Butt Welded (seam) :24”-72",DN600-DN1800

Type

LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree

1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

Thickness SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard ASME,ANSI B16.9;
DIN2605,2615,2616,2617,
JIS B2311 ,2312,2313;
EN 10253-1 ,EN 10253-2
Material ASTM Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.)

Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,

A420WPL6,A420WPL3

DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,

12CrMo, 12CrMoG, 12Cr1Mo

Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing In wooded cases or pallets, or as for clients' requirements
Certification API and ISO 9001:2000
Payment Term T/T ,West Union,
Trade Term FOB,CIF,CFR(30% down payment in advance, balance should before shipment)



ASTM A105 SCH80 14inch Carbon Steel End Cap Hot Rolled And Cold Rolled 2



Design standards: national standard, German standard, Japanese standard, American standard (ASME DIN JIS BS GB/T JB SH HG)

Pressure range: 5s-120s Size range: 15-900mm

Nominal diameter: 1-10 (mm) (diameter: DN15-DN1200)

Wall thickness: 1-100 (mm) (SCH5-SCH160)

Materials: stainless steel 304, 304L, 316, 316L, 310, 317, 321, etc

Uses: water, beverage, beer, food, petrochemical industry, nuclear power, machinery, medical equipment, fertilizer, shipbuilding, waterproof treatment, pipeline, etc

Packaging: wooden box, carton service: technical consultation, installation guidance, etc

The r part of the dished pipe cap shall not be spliced, which will reduce the thickness and high stress.



ASTM A105 SCH80 14inch Carbon Steel End Cap Hot Rolled And Cold Rolled 3

FAQ



1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

4. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.

5.Q: After sales service.

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
