Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 72 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PCS |
| Price: | FOB USD 1-100/PCS |
| Packaging Details: | In wooden case, pallets or as per customers’ requirement |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Place Of Origin:: | China | Application :: | Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines |
|---|---|---|---|
| Standard:: | ASTM, AISI, GB, DIN, JIS | Thickness/Tube: | Sch10,sch20,sch30,std,sch40,sch60,xs,sch80, Sch100,sch120,sch140,sch160,xxs |
| Size:: | 1/2”-120” | Payment Terms: | T/T, L/C At Sight |
| High Light: | Steel Pipe End Cap ASTM AISI,ASTM Steel Pipe End Cap,AISI End Cap Fitting |
||

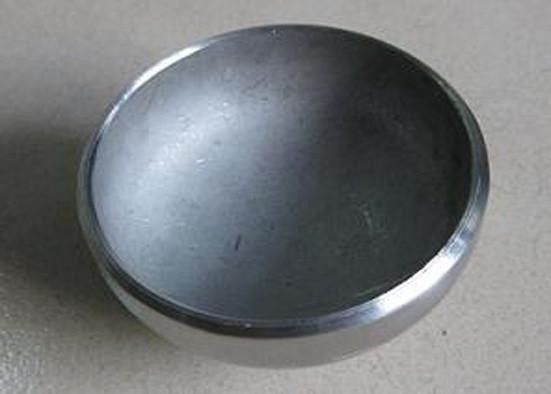

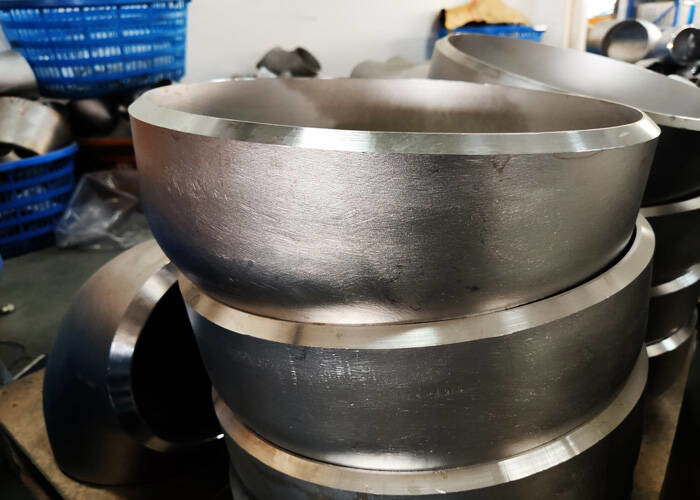

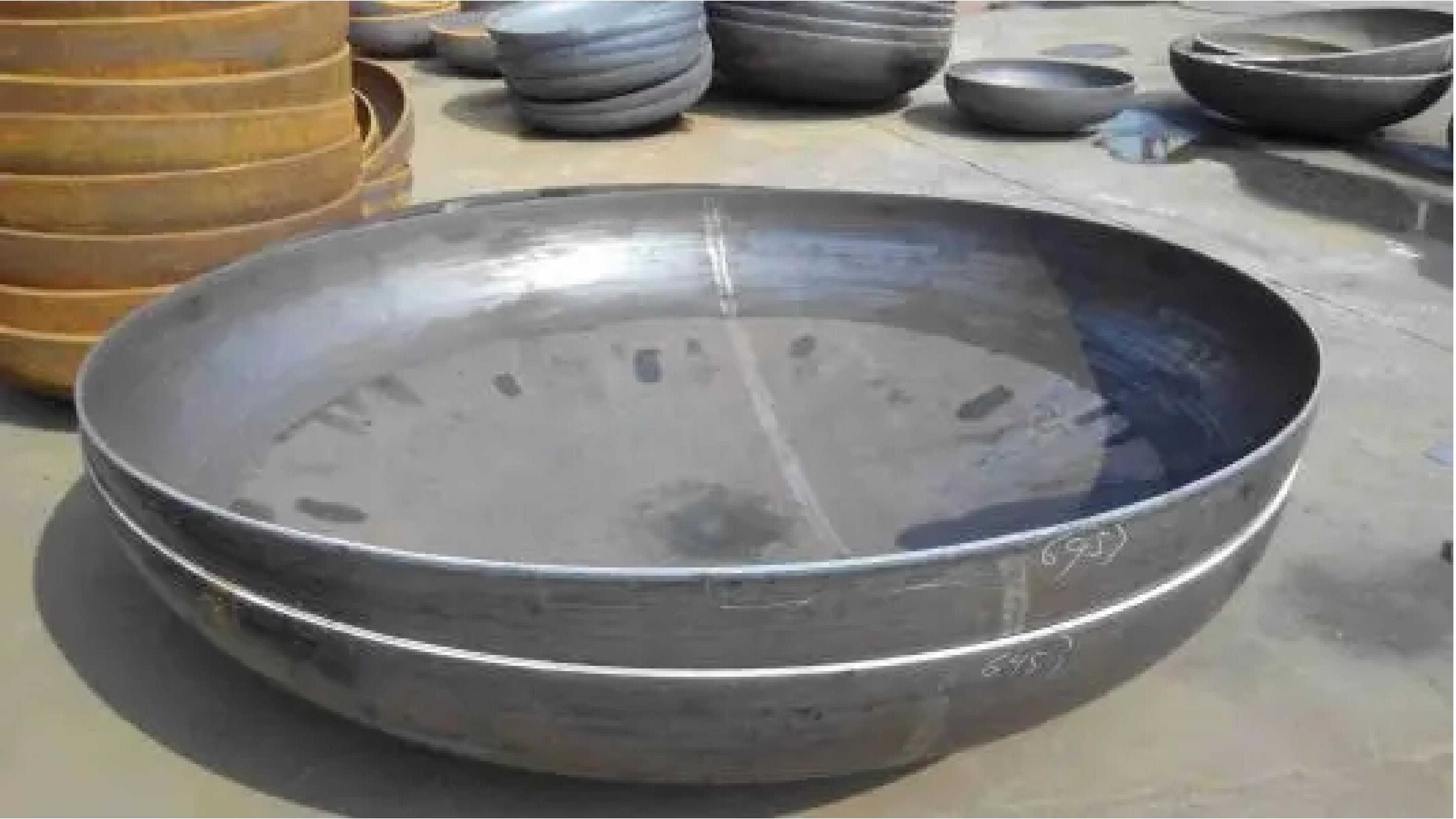

Product Description
| Standards: | ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: | 1/2” TO 36” (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
| Materials: | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| DIMENSIONAL TOLERANCES – CAPS | ||||
| For all fittings | Caps | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4 -3 | 3,2 | 7 | |
| 20 a 24 | +6 -5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 | |
CAPS – Weights
| WEIGHTS OF FITTINGS | ||||
| NPS inches |
CAPS | |||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.04 | 0.04 | 0.05 | 0.05 |
| 3/4 | 0.05 | 0.05 | 0.06 | 0.08 |
| 1 | 0.09 | 0.09 | 0.13 | 0.17 |
| 1 1/4 | 0.11 | 0.11 | 0.15 | 0.18 |
| 1 1/2 | 0.15 | 0.15 | 0.20 | 0.22 |
| 2 | 0.17 | 0.17 | 0.25 | 0.30 |
| 2 1/2 | 0.25 | 0.25 | 0.45 | 0.50 |
| 3 | 0.40 | 0.40 | 0.70 | 0.90 |
| 4 | 0.60 | 0.60 | 1.20 | 1.60 |
| 5 | 1.00 | 1.00 | 1.90 | 2.70 |
| 6 | 1.40 | 1.40 | 2.90 | 4.30 |
| 8 | 2.50 | 2.50 | 5.10 | 7.60 |
| 10 | 3.90 | 3.90 | 9.00 | 12.0 |
| 12 | 6.50 | 6.50 | 13.5 | 17.5 |
| 14 | 8.00 | 8.00 | 16.0 | 20.5 |
| 16 | 14.5 | 14.5 | 20.5 | 26.0 |
| 18 | 17.0 | 17.0 | 26.0 | 34.0 |
| 20 | 18.0 | 18.0 | 32.0 | 43.0 |
| 24 | 26.0 | 26.0 | 46.0 | 60.0 |
| Approximate weights in kg, density 8 kg/dm3 | ||||
