Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 72 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | In wooden case, pallets or as per customers’ requirement |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Place Of Origin:: | China | Payment Terms: | T/T, L/C At Sight |
|---|---|---|---|
| Standard:: | ASTM, AISI, GB, DIN, JIS | Caps:: | BW End Caps |
| Type:: | Seamless ,Welded | Application :: | Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines |

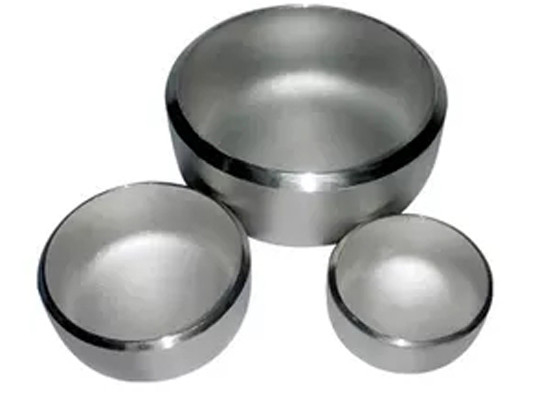

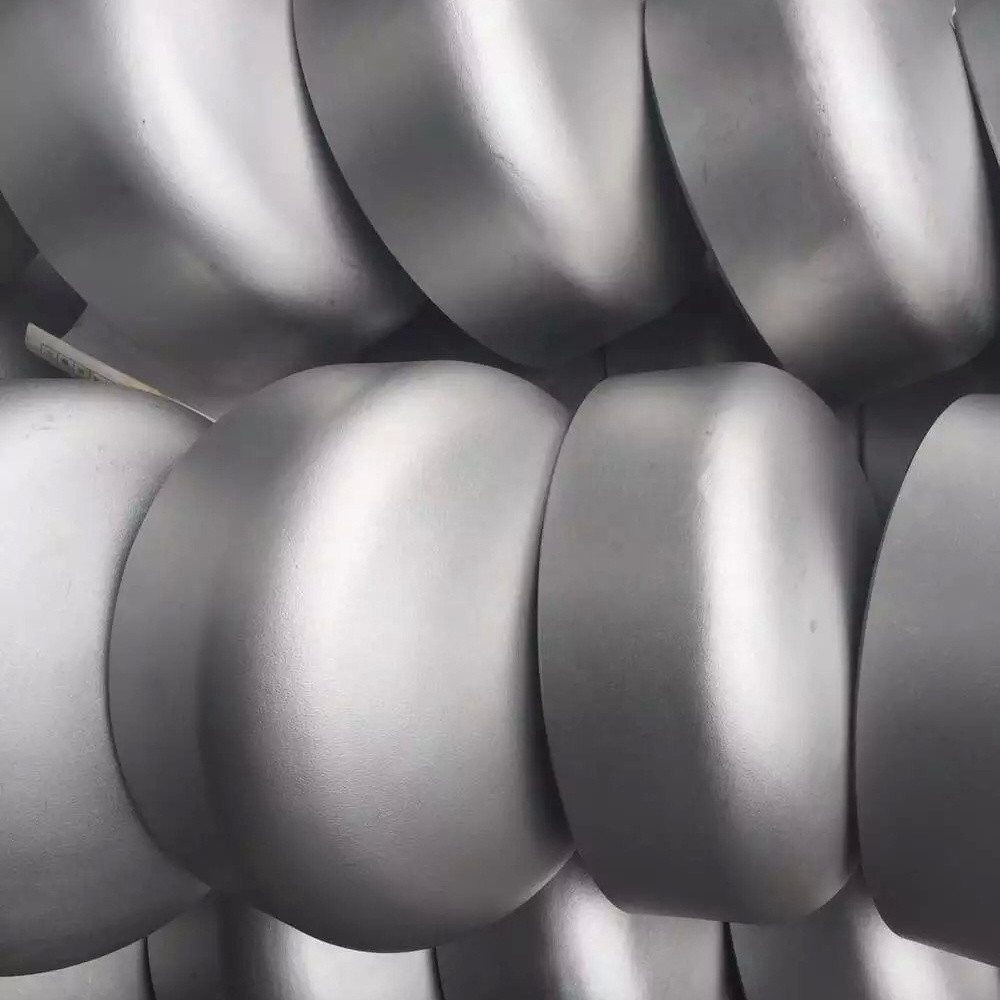

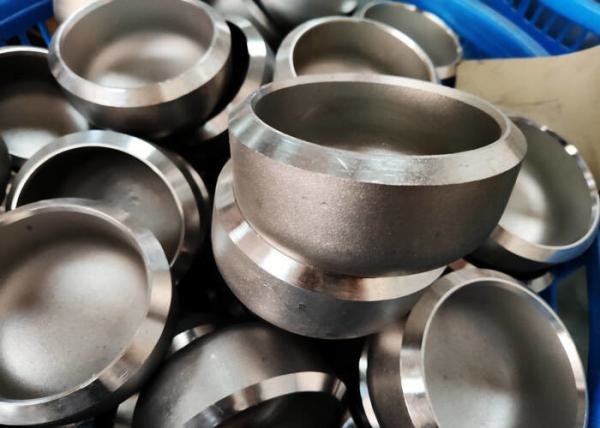

| High Light: | Wp304 Steel Pipe End Cap,A403 Steel Pipe End Cap,Wp304l welded pipe caps |
||
Product Description
What is ASME B16.9 Cap?
ASME B16.9 Cap act as defensive devices and are planned to secure ANSI B16.9 cap of different shapes. The main reason for utilizing ASME B16.9 Cap is to waterproof the associations. They are too utilized to shut the closes of water-powered or pneumatic channels and tubes. SS End Caps are utilized within the plumbing device of residential, commercial and mechanical water supply lines, machinery and preparing hardware, etc. They are moreover fitted on water pump lines with the sole reason for expelling air blocks.
ASME B16.9 end cap dimensions
| Code FOSTD - FOXS | Nominal Diameter | Wall Th. S mm | Height H mm | Theoretical Weight kg | |||
| Poll. | D mm | STD | XS | STD | XS | ||
| 5 | 1/2 | 21.34 | 2.77 | 3.73 | 25.4 | 0.03 | - |
| 7 | 3/4 | 26.67 | 2.87 | 3.91 | 25.4 | 0.06 | 0.08 |
| 10 | 1 | 33.40 | 3.38 | 4.55 | 38.1 | 0.10 | 0.14 |
| 12 | 1'' 1/4 | 42.16 | 3.56 | 4.85 | 38.1 | 0.14 | 0.18 |
| 15 | 1'' 1/2 | 48.26 | 3.68 | 5.08 | 38.1 | 0.16 | 0.23 |
| 20 | 2 | 60.32 | 3.91 | 5.54 | 38.1 | 0.27 | 0.32 |
| 25 | 2'' 1/2 | 73.02 | 5.16 | 7.01 | 38.1 | 0.41 | 0.45 |
| 30 | 3 | 88.90 | 5.49 | 7.62 | 50.8 | 0.65 | 0.82 |
| 40 | 4 | 114.30 | 6.02 | 8.56 | 63.5 | 1.15 | 1.54 |
| 50 | 5 | 141.30 | 6.55 | 9.52 | 76.2 | 1.90 | 2.59 |
| 60 | 6 | 168.27 | 7.11 | 10.97 | 88.9 | 2.92 | 4.10 |
| 80 | 8 | 219.07 | 8.18 | 12.70 | 101.6 | 5.07 | 7.3 |
| 100 | 10 | 273 | 9.27 | 12.70 | 127 | 9.1 | 12.0 |
| 120 | 12 | 323.9 | 9.52 | 12.70 | 152 | 13.6 | 17.0 |
| 140 | 14 | 355.6 | 9.52 | 12.70 | 165 | 14.42 | 19.8 |
| 160 | 16 | 406.4 | 9.52 | 12.70 | 178 | 18.86 | 25.89 |
| 180 | 18 | 457.2 | 9.52 | 12.70 | 203 | 27.65 | 36.52 |
| 200 | 20 | 508 | 9.52 | 12.70 | 229 | 35.60 | 46.98 |
| 240 | 24 | 609.6 | 9.52 | 12.70 | 267 | 46 | 64.60 |
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3. Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5. Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
