Hebei Hongcheng Pipe Fittings Co., Ltd.

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: FOB USD 1-100/PCS
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: China Standard:: ASTM, AISI, GB, DIN, JIS
Wall Thickness: SCH5S To SCHXXS Supply Ability:: ACCORDING TO CUSTOMER'S REQUEST
Usage:: Petroleum, Chemical, Power, Gas, Industrial, Shipping Building, Construction Payment Terms: T/T, L/C At Sight
High Light:

Alloy Steel Pipe End Cap SCH5S

,

Petroleum Steel Pipe End Cap

,

Petroleum SCH5S Steel Pipe Caps

Product Description

Steel Pipe End Cap Pipe Cap, Steel Pipe Cap, Alloy Steel Pipe Cap, Stainless Steel Pipe Cap​

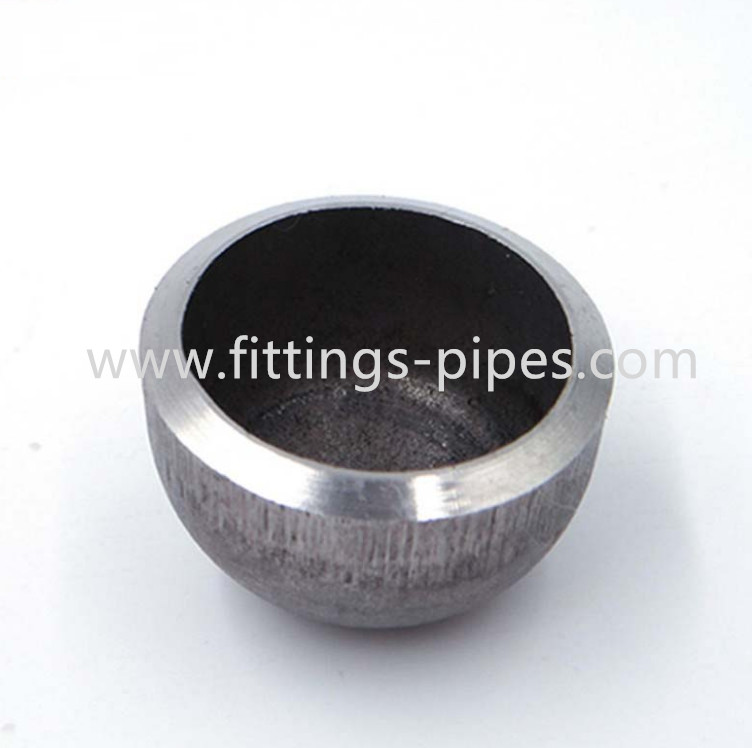

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 0

Specification:

NPS O.D.
D
LENGTH
H
LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267
28 711 267
30 762 267
32 813 267
34 864 237
36 914 267
38 965 305
40 1016 305
42 1067 305
44 1118 343
46 1168 343
48 1219 343



Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85
12 13.61 16.33 43.09
14 16.33 20.41
16 18.14 24.49
18 24.49 32.66
20 34.02 39.01
22 42.64 56.7
24 43.54 58.97
26 53.98 72.12
30 78.02 103.87
NPS STD XS SCH 160 XXS

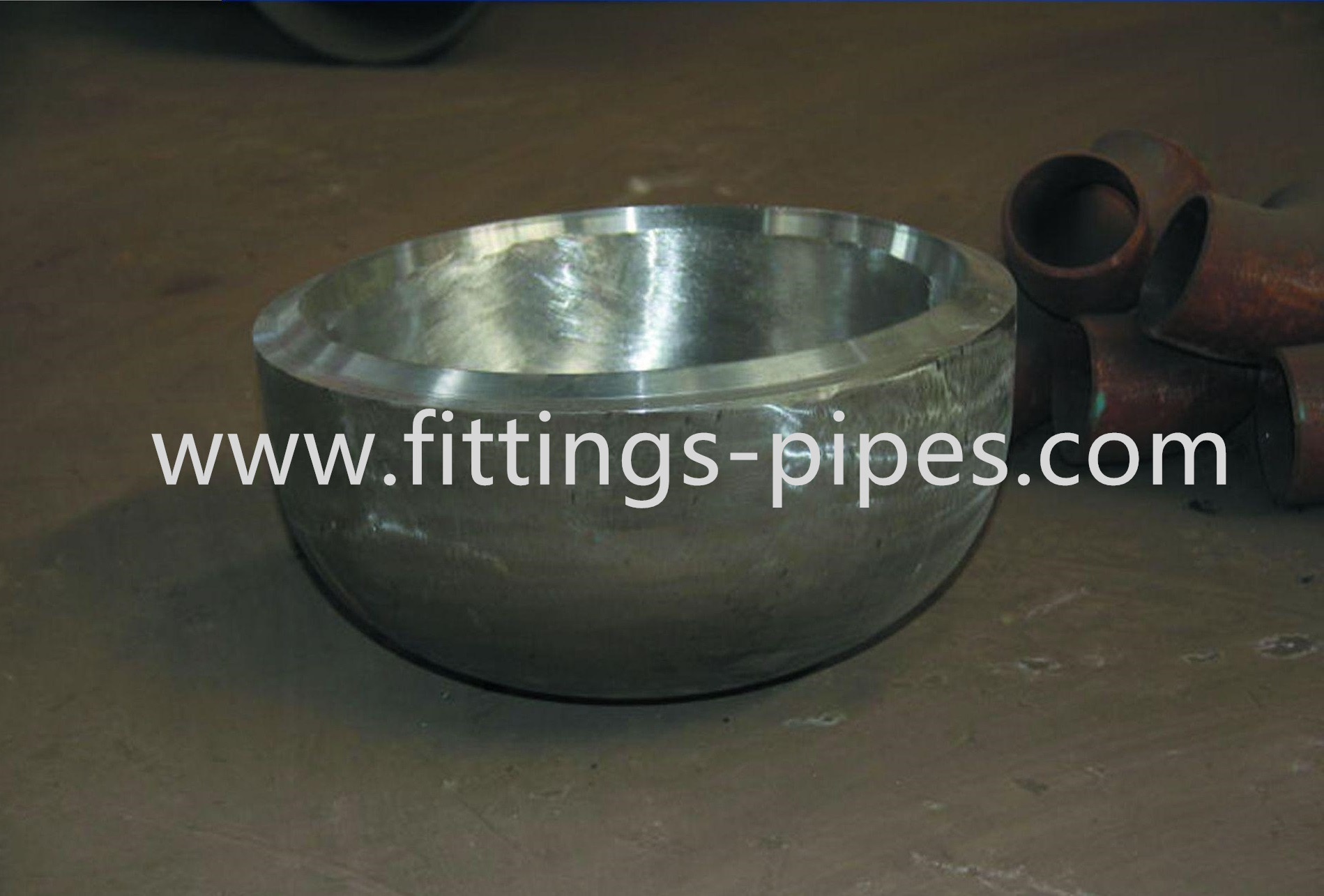

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 1

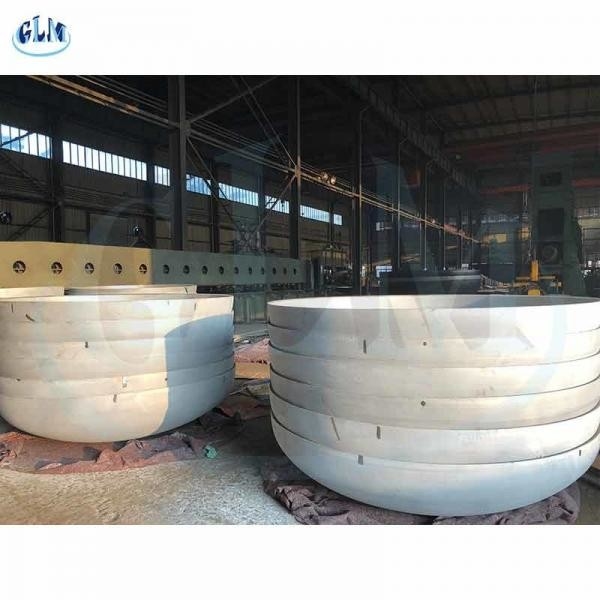

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 2

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 3

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 4

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness 5
