Hebei Hongcheng Pipe Fittings Co., Ltd.

ASTM P22/P5 10 Inch Alloy Steel Seamless Pipe Elbow SCH80 High Pressure Elbow Fitting

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Model Number: 1/2" TO 36"
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Discussion
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Model Number:: 1/2"-36" Standard:: Astm A234 Astm A335
Packaging Details:: According To Client Requirements/ Wooden Case Packing Wall Thickness:: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
DEGREE:: 45° 90° 180° Material Grade:: WP11, WP22, WP5, P9,P91, P92
Manufacturing Method:: Pushing, Pressing, Forging, Casting, Etc Production Standards:: National Standard, Electrical Standard, Ship Standard, Chemical Standard, Water Standard, American Standard,
High Light:

ASTM P22 Seamless Pipe Elbow

,

ASTM P22 Seamless Steel Pipe

,

SCH80 high pressure elbow fitting

Product Description

ASTM P22/P5 10-inch alloy steel seamless elbow SCH80 high-pressure pipe welding and bending

WE SPECIALIZED IN PRODUCING AND EXPORTING CARBON STEEL SEAMLESS PIPES AND WELDED STEEL PIPES, BLACK AND HOT-DIPPED GALVANZIED, MEDIUM AND LOW PRESSURE BOILER TUBES, OIL CASING TUBING AND LINE PIPES, QUALIFY THE INTERNATIONAL STANDARD, SUCH AS API 5CT J55/55/N80/P110, API 5L/ASTM A53/A106 GRADE A/B, ASME A179/A192, DIN 2440/2448, BS1387, etc. SIZES AVAILABLE IN RANGE: 1/4"-48".

astm a335 p91 seamless pipe manufactuer ,p91 seamless steel pipe exporter, p91 seamless black pipes stockholder ,black seamless alloy pipe supplier in china

ASTM A335 Steel Ferritic Alloy Tubes Pipe for High-Temperature and Boilers

ASTM A335 Seamless ferritic and alloy steel pipe for high temperature service

Applications: for Boilers,Superheaters,Heat-Exchangers

Size range: O.D.:6-420mm W.T.:1-50mm L: according to customer requirement

Production details:

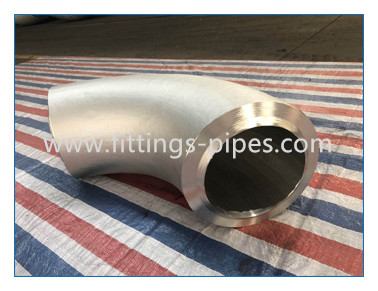

ASTM P22/P5 10 Inch Alloy Steel Seamless Pipe Elbow SCH80 High Pressure Elbow Fitting 0


seamless steel pipe chemical composition:

Grade C Si Mn P S Cr Mo
P5 Max.0.15 Max.0.50 0.3-0.6 Max.0.025 Max.0.025 4--6 0.45-0.65
P11 0.05-0.15 0.5-1.0 0.3-0.6 Max.0.025 Max.0.025 1.0-1.5 0.44-0.65
P12 0.05-0.15 Max.0.50 0.3-0.61 Max.0.025 Max.0.025 0.8-1.25 0.44-0.65
P22 0.05-0.15 Max.0.50 0.3-0.6 Max.0.025 Max.0.025 1.9-2.6 0.87-1.13
Mechanical properties
Grade Yield point (Mpa) Tensile strength (Mpa) Elongation(%) Impact value(J)
P5 ≥205 ≥415 See table ≥35
P11 ≥205 ≥415 See table ≥35
P12 ≥220 ≥415 See table ≥35
P22 ≥205 ≥415 See table ≥35

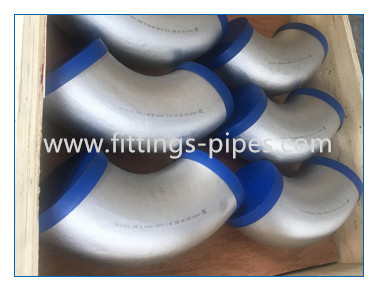

ASTM P22/P5 10 Inch Alloy Steel Seamless Pipe Elbow SCH80 High Pressure Elbow Fitting 1





ASTM P22/P5 10 Inch Alloy Steel Seamless Pipe Elbow SCH80 High Pressure Elbow Fitting 2

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.
