Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: Pcoc, Reach, Iecee, Scoc, Epa, Gs
Model Number: 1/2" TO 48 "
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: consult
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Size :: Customized Size,2"~24" Certification:: ASME DNV BV API CE ABS CE
Material:: Stainless Steel Butt Welding Thickness:: SCH20 SCH40 STD SCH60 SCHXS SCH80 SCH160 SCHXXS
DEGREE:: 15° 30° 45° 60° 90° 180° Standard:: Astm A234 / Ansi B16.9
Application:: Supply Water/oil System
High Light:

Seamless A304 stainless steel elbow


Seamless A304 elbow pipe fittings


Pcoc stainless steel elbow Fittings

Product Description

Seamless A304 stainless steel elbow pipe fittings 15 ° - 180 ° thick wall
Hot forming
The hot push elbow forming process is to use a special elbow push machine, core mold and heating device, so that the blank sleeved on the mold moves forward under the push of the push machine, and is heated, expanded and bent during the movement. the process of. The deformation characteristic of the hot push elbow is to determine the diameter of the tube blank according to the law of constant volume before and after the plastic deformation of the metal material. The diameter of the tube blank is smaller than the diameter of the elbow, and the deformation process of the blank is controlled by the core mold, so that the inner arc is compressed The metal flow is compensated to other parts that are thinned due to diameter expansion, thereby obtaining an elbow with uniform wall thickness.
The hot push elbow forming process has the characteristics of beautiful appearance, uniform wall thickness and continuous operation, and is suitable for mass production. Therefore, it has become the main forming method for carbon steel and alloy steel elbows, and is also applied to certain specifications of stainless steel elbows. Is forming.
ASTM A234 is the standard specification for pipe fittings of wrought carbon and alloy steel for high temperature service.
This specification covers wroght carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ANSI B16.9, ANSI B16.11, ANSI B16.28, MSS SP-79 and MSS SP-95.
The fittings are for use at moderate and elevated temperature.

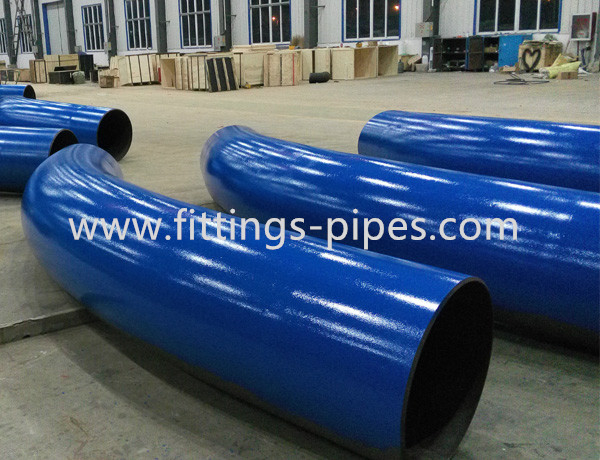

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 0


Porduct Name800 / 800H inconloy elbow
Size1/2"-24" seamless, 26"-60" welded
StandardANSI B16.9, EN10253-4, DIN 2605, GOST 17375-2001, JIS B2313, MSS SP 75, etc.
Wall thicknessSCH5S, SCH10S, SCH10, SCH40S, STD, XS, SCH80S, XXS, SCH20, SCH30, SCH40,
 SCH60, SCH80, SCH160, XXS and etc.
Elbow30° 45° 60° 90° 180°,etc
RadiusLR/long radius/R=1.5D,SR/Shrot radius/R=1D, various radius: 3D,4D,5D,6D,7D,
 10D,20D etc.
EndBevel end/BE/buttweld
SurfacePickled,sand blasting, rolling blast,brighten,matt polished,mirror polished,vanished,
MaterialStainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S,
 A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,
 1.4541, 254Mo and etc.
 Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
 UNS32760, 1.4462,1.4410,1.4501 and etc.
 Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
 C22, C-276,Monel400, Alloy20 etc.

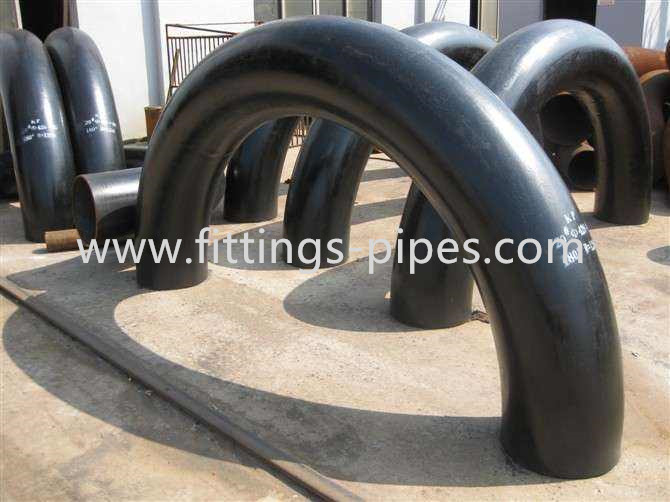

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 1

Pipe Fittings Elbow 90° Alloy Pipe Fitting Elbow DN15-1200 Is Very Versatile
Alloy elbow is a general term for a variety of elbows. It is used to connect two pipes with the same nominal diameter to make the pipe bend at 90° or other angles. It is made of various materials and alloy elbows are very versatile.
Ordinary bronze alloy elbows are more common in general tap water pipes, but with the improvement of living standards, many tap water pipes use stainless steel elbows.

Sfenry ANSI B16.9 LR BW ASTM A234 GR.WPB SCH40 Butt Weld 90 Degree Pipe Elbow

We Sfenry has been engaged producing and supplying all kinds of flanges & pipe fittings over 16 years.


SMLS ---1/2"-24"



22.5deg, 30deg, 45deg, 60deg, 90deg, 180deg


sch5, sch5s, sch10s, sch10, sch20, sch30, sch40, sch40s, sch80s,STD, SCH60, XS, sch80, sch100, sch120, sch140, sch160, XXS, or as per your requirement


ASME B16.9, ASME B16.28, ASME B16.25, MSS SP 75, DIN 2605, JISB2311 JISB2312 JISB2313, BS, GB, etc


  1. carbon steel: A106 GR.B, A234 WPB, A234 WPC, A420 WPL6, 20#, 10#, Q235 etc.

  2. Stainless steel: ASTM A403 WP304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.

  3. Alloy steel: ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,12 Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1, ect


usually paint black, galv., for carbon steel and alloy steel, and for stainless steel bends we usually dont do anything on the surface


ISO 9001:2015


plywood cases, pallets, or as per your request.


Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc

Port of delivery

Shanghai port, Xingang port, Xiamen port, Ningbo port etc.

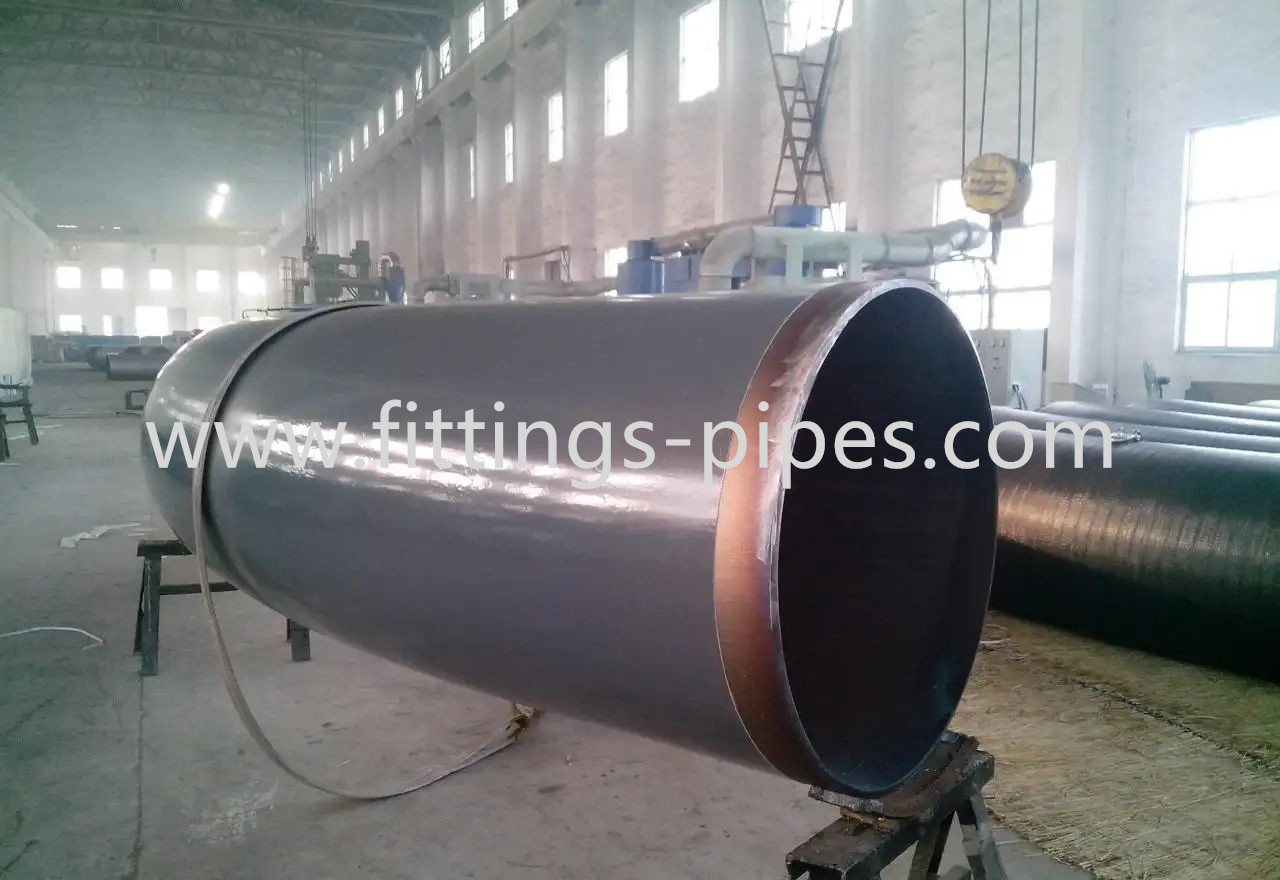

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 2

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 3

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 4

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 5

Best service for our clients is our aim with our high quality products and the best protection for our products, to make sure the cargo in perfect condition once arriving our customs' hand.

At the same time, our price is competitive among our competitors!

Pcoc Seamless A304 Stainless Steel Elbow Pipe Fittings 15 ° - 180 ° Thick Wall 6
