Hebei Hongcheng Pipe Fittings Co., Ltd.

14 Inch SCH80 WP11 WP22 Stainless Steel Long Radius Elbow Connector

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Model Number: 1/2" TO 36"
Payment & Shipping Terms:
Minimum Order Quantity: 1Ton
Price: Discussion
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Model Number:: 1/2"-36" Standard:: Astm A234 Astm A335
Packaging Details:: According To Client Requirements/ Wooden Case Packing Production Standards:: National Standard, Electrical Standard, Ship Standard, Chemical Standard, Water Standard, American Standard,
Material Grade:: WP11, WP22, WP5, P9,P91, P92 Manufacturing Method:: Pushing, Pressing, Forging, Casting, Etc
DEGREE:: 45° 90° 180° Wall Thickness:: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
High Light:

WP22 stainless steel long radius elbow

,

WP11 stainless steel long radius elbow

,

WP22 stainless steel elbow connector

Product Description

A234GR. WP22-S 14 inch SCH80 P22/P5 pipe fitting elbow

The advantages of heat treatment process of stainless steel elbow are as follows:



1. The preheating of stainless steel elbow is helpful to reduce the large hardness of medium carbon steel heat affected zone and prevent cold cracking. This is the main process measure for welding medium carbon steel. Preheating can also improve the plasticity of welded joints and reduce the residual stress after welding.

2. Generally, when the preheating temperature of 35 and 45 steel is 150~250 ℃, due to the relationship between thickness and stiffness, if the carbon content is good or the crack tendency is large, the preheating temperature can be increased to 250~400 ℃.

3. If the weldment is too large and the overall preheating is difficult, local preheating can be carried out. The heating range of local preheating on both sides of the weld is 150~200mm. When conditions permit, alkaline electricity should be used.

4. In the form of groove, U-shaped groove welding shall be adopted for weldments as far as possible. If it is a casting defect, the groove excavated with a shovel shall be smooth. The purpose is to reduce the proportion of base metal melted into weld metal, so as to reduce the carbon content in the weld and prevent cracks.

5. Post weld heat treatment is a good method to remove stress immediately after welding, especially for weldments with large thickness, good stiffness and poor working conditions (dynamic load or impact load). The tempering temperature for removing stress is 600~650 ℃.

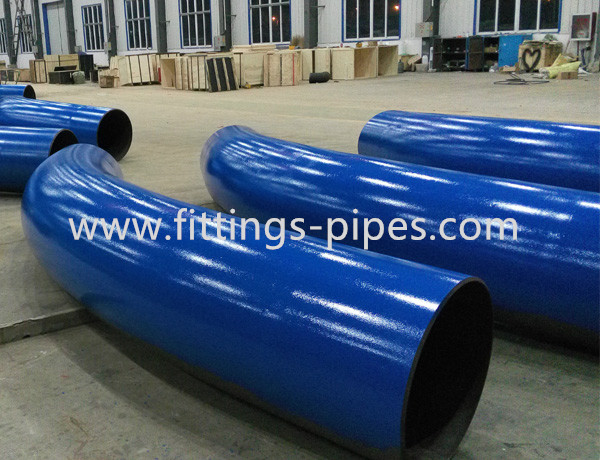

14 Inch SCH80 WP11 WP22 Stainless Steel Long Radius Elbow Connector 0

Product Name Stainless Steel Elbow



Production method

Customize by:

1)clients provide product pictures

2)client provide design drawings (Size according to customer needs)

3)client send samples to us

Material Grade 201,202,301,302,303,304,304L,304N1,309S,310S,316,316L,316Ti,316N,317,317L,321,409L,410,420,430,904,904L,etc
Size 1/2" to 48" Sch 5S to XXS
Standard ASTM A403 etc .
Process Method Forged / Casting
Advantage

a) Connect pipes

a) High technology; good surface; high quality etc

Price Item FOB , CFR , CIF or as negotiation
Payment T / T , LC or as negotiation
Delivery Time 20 working days after received your deposit and design ( according to the order quantity )
Package Standard industrial packaging or as per customer’s requirement
Quality Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Product Name Stainless Steel Elbow



Production method

Customize by:

1)clients provide product pictures

2)client provide design drawings (Size according to customer needs)

3)client send samples to us

Material Grade 201,202,301,302,303,304,304L,304N1,309S,310S,316,316L,316Ti,316N,317,317L,321,409L,410,420,430,904,904L,etc
Size 1/2" to 48" Sch 5S to XXS
Standard ASTM A403 etc .
Process Method Forged / Casting
Advantage

a) Connect pipes

a) High technology; good surface; high quality etc

Price Item FOB , CFR , CIF or as negotiation
Payment T / T , LC or as negotiation
Delivery Time 20 working days after received your deposit and design ( according to the order quantity )
Package Standard industrial packaging or as per customer’s requirement
Quality Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable

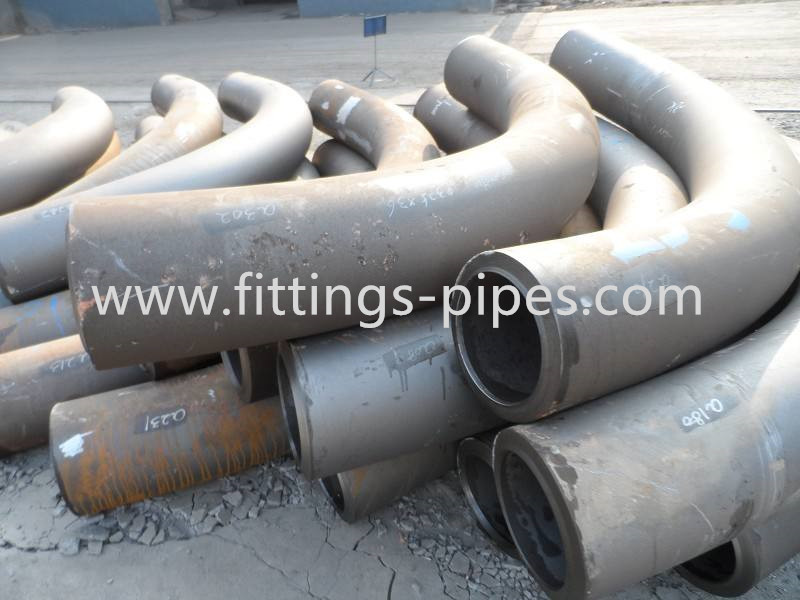

14 Inch SCH80 WP11 WP22 Stainless Steel Long Radius Elbow Connector 1

Common Chemical Composition

Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤ 0.03 3.5-5.5 16.0-18.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 16 .0-1 8.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.013 17.0-1 9.0 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤ 0.03 ≤0.60 16.0-18.0 -

Alloy bends are used in different places. For example, alloy bends made of manganese steel are usually used in concrete transmission pipelines, mud transmission pipelines and other pipelines with serious wear consumption because of their excellent performance of withstanding impact, extrusion, material wear, etc. The high manganese steel alloy elbow is used in the pipeline where the fluid flow is relatively intense and the impact is relatively strong; Alloy bends made of nickel steel are usually used in normal temperature transmission pipelines with high concentration of oxidizing acid (nitric acid, sulfuric acid), but will be severely corroded in transmission pipelines with reducing acid (hydrochloric acid, dilute sulfuric acid, etc.), unless the concentration of hydrochloric acid is very low; Martensitic alloy elbow has high high temperature strength, oxidation resistance and water vapor corrosion resistance below 650 ℃, but its weldability is poor. Therefore, it is often used in high-temperature steam transmission pipeline and water gas pipeline.



Materials: carbon steel, alloy, stainless steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon asphalt, PVC, PPR, RFPP (reinforced polypropylene), etc



Manufacturing method: pushing, pressing, forging, casting, etc



Production standards: national standard, electrical standard, ship standard, chemical standard, water standard, American standard, German standard, Japanese standard, Russian standard, etc

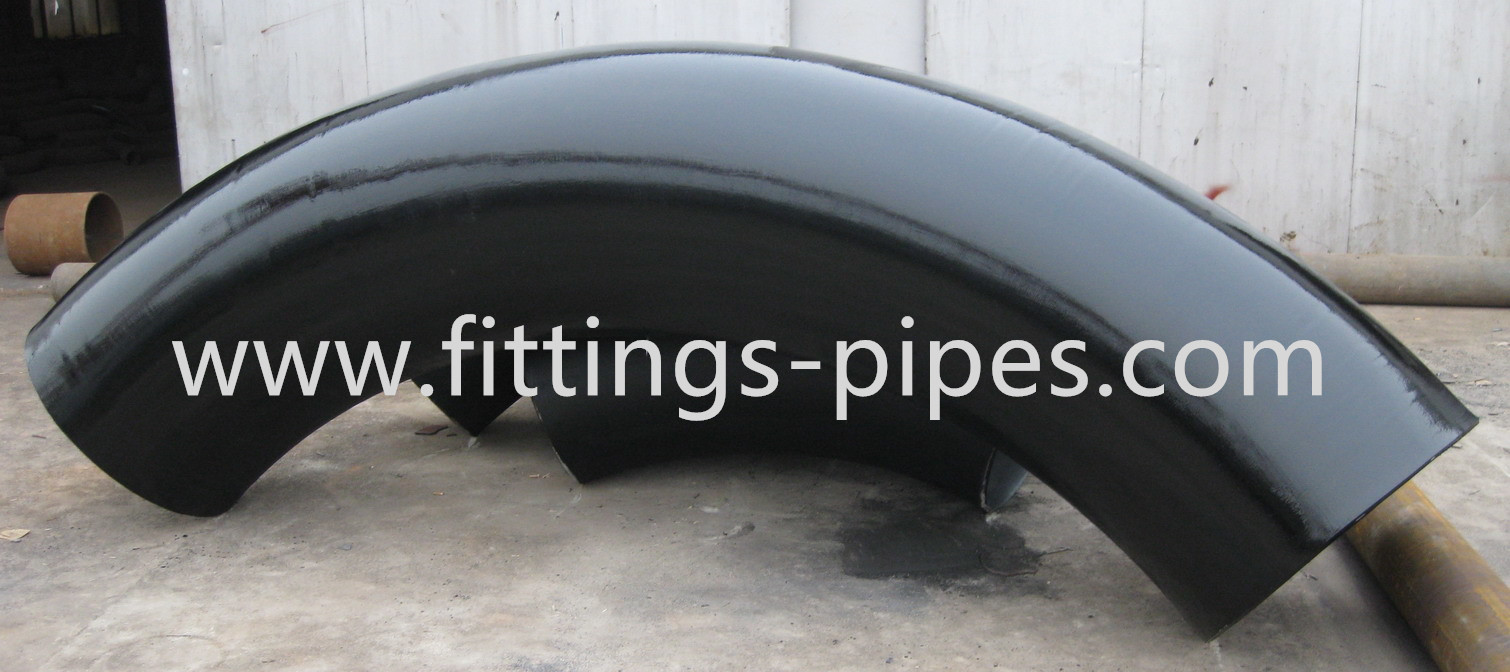

14 Inch SCH80 WP11 WP22 Stainless Steel Long Radius Elbow Connector 2

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.
