electrical Standard 10inch Alloy Steel Pipe Elbow SCH80 P22/P5

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015, IEI
Model Number: 1/2" TO 36"
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Discussion

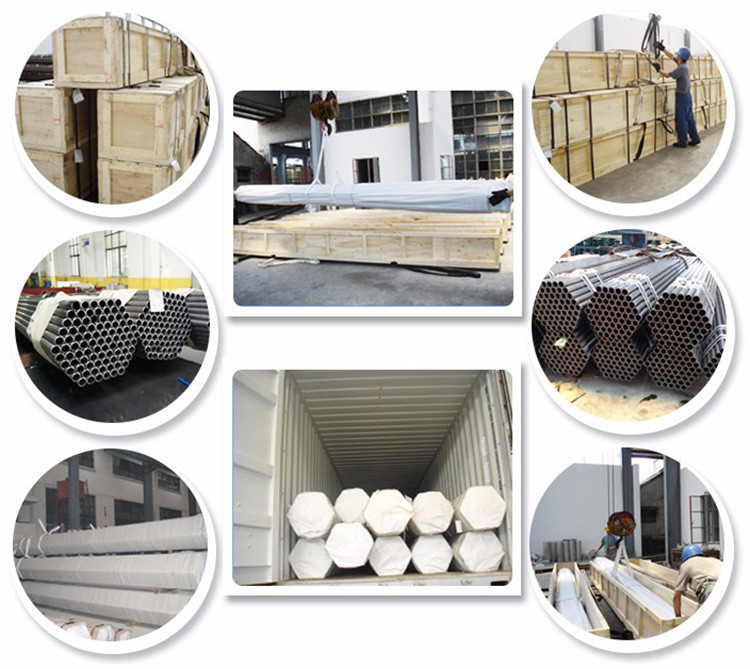

Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C at sight
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Model Number:: 1/2"-36" Standard:: Astm A234 Astm A335
Packaging Details:: According To Client Requirements/ Wooden Case Packing Wall Thickness:: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
DEGREE:: 45° 90° 180° Material Grade:: WP11, WP22, WP5, P9,P91, P92
Manufacturing Method:: Pushing, Pressing, Forging, Casting, Etc Production Standards:: National Standard, Electrical Standard, Ship Standard, Chemical Standard, Water Standard, American Standard,
High Light:

10inch Alloy Steel Pipe Elbow

,

Electrical Standard Alloy Steel Pipe Elbow

,

Electrical Standard Steel tube Elbow

Product Description

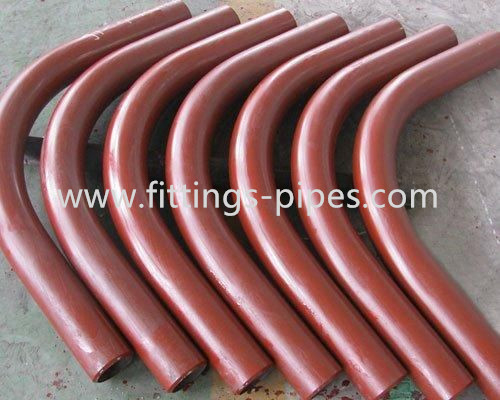

High quality alloy material SCH80 P22/P5 steel pipe elbow size 10“

Alloy bends are used in different places. For example, alloy bends made of manganese steel are usually used in concrete transmission pipelines, mud transmission pipelines and other pipelines with serious wear consumption because of their excellent performance of withstanding impact, extrusion, material wear, etc. The high manganese steel alloy elbow is used in the pipeline where the fluid flow is relatively intense and the impact is relatively strong; Alloy bends made of nickel steel are usually used in normal temperature transmission pipelines with high concentration of oxidizing acid (nitric acid, sulfuric acid), but will be severely corroded in transmission pipelines with reducing acid (hydrochloric acid, dilute sulfuric acid, etc.), unless the concentration of hydrochloric acid is very low; Martensitic alloy elbow has high high temperature strength, oxidation resistance and water vapor corrosion resistance below 650 ℃, but its weldability is poor. Therefore, it is often used in high-temperature steam transmission pipeline and water gas pipeline.

Materials: carbon steel, alloy, stainless steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon asphalt, PVC, PPR, RFPP (reinforced polypropylene), etc

Manufacturing method: pushing, pressing, forging, casting, etc

Production standards: national standard, electrical standard, ship standard, chemical standard, water standard, American standard, German standard, Japanese standard, Russian standard, etc



electrical Standard 10inch Alloy Steel Pipe Elbow SCH80 P22/P5 0

Unit : inch

Nominal

Pipe

Size

Outside Dia.

(OD)

Wall Thickness (T)

90o L/R Elbow Center To End A

45o L/R Elbow Center To End B

90o S/R Elbow Center To End A

Sch.5S

Sch.10S

Sch.40S

Sch.80S

1/2

0.840

0.065

0.083

0.109

0.147

1.50

0.625



3/4

1.050

0.065

0.083

0.113

0.154

1.12

0.438



1

1.315

0.065

0.109

0.133

0.179

1.50

0.875

1.00

1-1/4

1.660

0.065

0.109

0.140

0.191

1.88

1.00

1.25

1-1/2

1.900

0.065

0.109

0.145

0.200

2.25

1.12

1.50

2

2.375

0.065

0.109

0.154

0.218

3.00

1.38

2.00

2-1/2

2.875

0.083

0.120

0.203

0.276

3.75

1.75

2.50

3

3.500

0.083

0.120

0.216

0.300

4.50

2.00

3.00

4

4.500

0.083

0.120

0.237

0.337

6.00

2.50

4.00

5

5.563

0.109

0.134

0.258

0.375

7.50

3.12

5.00

6

6.625

0.109

0.134

0.280

0.432

9.00

3.75

6.00

8

8.625

0.109

0.148

0.322

0.500

12.00

5.00

8.00

10

10.750

0.134

0.165

0.375

0.500

15.00

6.25

10.00

12

12.750

0.156

0.180

0.375

0.500

18.00

7.50

12.00

14

14.000

0.156

0.250

0.375

0.500

21.00

8.75

14.00

16

16.000

0.165

0.250

0.375

0.500

24.00

10.00

16.00

18

18.000

0.165

0.250

0.375

0.500

27.00

11.25

18.00

20

20.000

0.188

0.250

0.375

0.500

30.00

12.50

20.00

24

24.000

0.218

0.250

0.375

0.500

36.00

13.50

24.00

Chemical composition(%):

Grade

C

Mn

P≤

S≤

Si

Cr

Mo

P11

0.05-0.15

0.30-0.60

0.025

0.025

0.50-1.00

1.00-1.50

0.44-0.65

P22

0.05-0.16

0.30-0.60

0.025

0.025

≤0.50

1.90-2.60

0.87-1.13

P5

≤0.15

0.30-0.60

0.025

0.025

≤0.50

4.00-6.00

0.45-0.65

P9

≤0.15

0.30-0.60

0.025

0.025

0.25-1.00

8.00-10.00

0.90-1.10

P91

0.08-0.12

0.30-0.60

0.020/0.010

0.020/0.010

0.02-0.50

8.00-9.50

0.85-1.05

P92

0.07-0.13

0.30-0.60

0.020/0.010

0.020/0.010

≤0.50

8.50-9.50

0.30-0.60



electrical Standard 10inch Alloy Steel Pipe Elbow SCH80 P22/P5 1

Company Profile

The epidemic has brought challenges to the global metal pipe fitting industry, but also new development opportunities. Hebei Hongcheng will be based on the global market, closely combined with the characteristics of the industry, dig deep into customer applications, solve users' pain points, rely on strong R & D strength, integrate cutting-edge technical ideas, quickly respond to the changing needs of customers, and provide reliable, safe, high-quality, high-quality and high-quality products for customers in the industry Easy to expand customized requirements and pipeline system engineering solutions.





electrical Standard 10inch Alloy Steel Pipe Elbow SCH80 P22/P5 2

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.
