Certification ::	ASME, ANSI, DIN, JIS, BS, KS	Material ::	Alloy
Supply Ability::	5000 Tons/Month	Wall Thickness:	Sch5-Sch160 XXS,STD,XS, SGP
Angle:	45° 90 ° 180°,etc	Material::	Stainless Steel
Highlight:	a335 p11 steel pipe elbow , seamless lr steel pipe elbow , a335 p22 seamless pipe elbow

Product Description

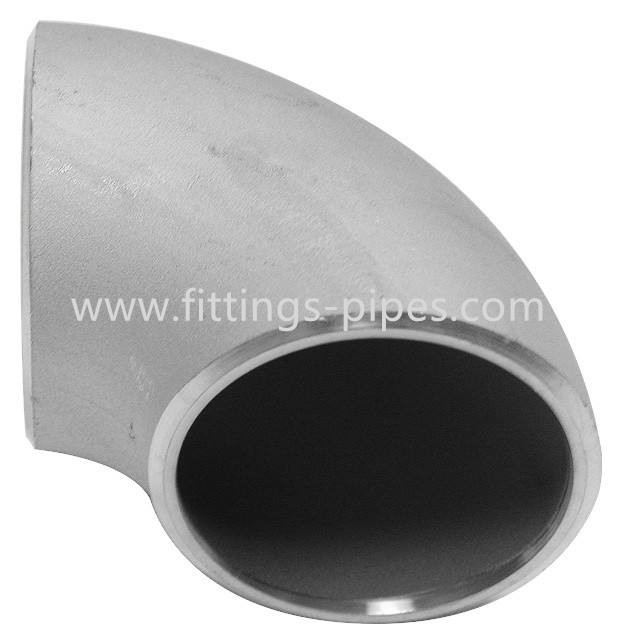

A335 P11 P22 Sch40 90 degree Lr seamless steel pipe elbow fitting

ASME SB366 WPNCMC REDUCER ASTM B366 WPNCMC SEAMLESS BUTT WELD FITTINGS 90 DEGREE SCH40 STEEL PIPE REDUCER
WHAT IS ASTM B366 GRADE WPNCMC FITTINGS?
ASTM B366 GRADE WPNCMC FITTINGS are a kind of a weldable pipe fitting which permits a change in the direction of flow, to branch off or to reduce the size of the pipe.
SPECIFICATION OF ASTM B366 GRADE WPNCMC FITTINGS~

SIZE	ASTM B366 WPNCMC Seamless Butt Weld Fittings: 1/2" - 10" ASTM B366 GRADE WPNCMC Welded Butt Weld Fittings: 1/2" - 48"
DIMENSIONS	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
THICKNESS	SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
TYPES	ASTM B366 GRADE WPNCMC Buttweld Fitting ASME SB366-WPNCMC Seamless Fittings B366 gr WPNCMC ERW Fittings ASME SB366-WPNCMC Welded Fittings B366 WPNCMC Fabricated Pipe Fittings ASTM B366 GRADE WPNCMC Bevel Ends Pipe Fittings
OD	DN15-DN1200
CONNECTION	Welding
BEDING RADIUS	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASME SB366 WPNCMC Pipe Fitting
RANGE	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366-WPNCMC Buttweld Fitting
DEGREE OF ELBOW	Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
PROCESS	Push, Press, Forge, Cast, etc.
TEST	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report(charged)

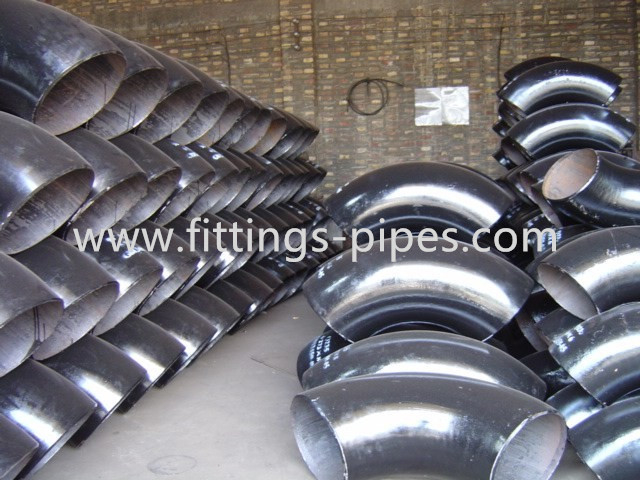

A335 P11 P22 Sch 40 Steel Pipe Elbow 90 Degree Lr Seamless Fitting 0

Product Parameters

NPS	O.D. D	90° Long Rad Center to End A	45° Long Rad Center to End B	90° Center to End A	45° Center to End B



1/2	21.3	38	16
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1¼	42.2	48	25	95	39
1½	48.3	57	29	114	47
2	60.3	76	35	152	63
2½	73	95	44	190	79
3	88.9	114	51	229	95
3½	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505

A335 P11 P22 Sch 40 Steel Pipe Elbow 90 Degree Lr Seamless Fitting 2
3.1 MTC IS OFFERED AFTER THE ORDER PLACED AND SHIPPED TOGETHER WITH THE CARGO.
DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~

Nominal Pipe Size	All Fittings	All Fittings	All Fittings	Elbows/ Tees	180° Return Bends	180° Return Bends	180 Deg Return Bends	Reducers	Caps
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38

A335 P11 P22 Sch 40 Steel Pipe Elbow 90 Degree Lr Seamless Fitting 3
