Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 28"
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiation
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin :: CHINA Material:: Alloy Steel
Standard:: Arsenic Petroleum Corporation B16.9 Application:: Pressure Vessel
Productivity:: 50,000 Pieces Per Month Certificate:: API Ccs Iso9001:2008
Authentication: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API Product Name:: Hemispherical Dome Hemispherical End Caps For Boilers
High Light:

q345b alloy steel pipe end cap

,

sch60 steel pipe end cap

Product Description

Q345B Alloy High Pressure Head Cover 1/2"-22" Sch60-100 Steel Pipe End Cover



The alloy steel butt welding head is the end cover on the pressure vessel, which is a main pressure-bearing component, and its function is to seal. The alloy steel butt welding head is used to make the upper and lower bottoms of the pressure vessel body, and the second is that the pipe is at the end, and it is not ready to extend forward, then a head is used to seal the pipe in the form of welding. Products with similar functions to the head include blind plates and caps, and the blind plates and threaded caps can be disassembled. After the head is welded, it cannot be disassembled. The quality of the head is directly related to the long-term safe and reliable operation of the pressure vessel. According to different geometric shapes, the heads can be divided into spherical, elliptical, dish-shaped, spherical cap, conical shell and flat cover, among which spherical, elliptical, dish, and spherical cap heads are collectively referred to as convex. header. Alloy steel butt welding head is an indispensable and important part of pressure vessel equipment in petrochemical, nuclear energy, water conservancy, food, machinery, medical equipment, fertilizer, shipbuilding and many other industries. Carbon steel butt welding head is used in various container equipment. Such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment.

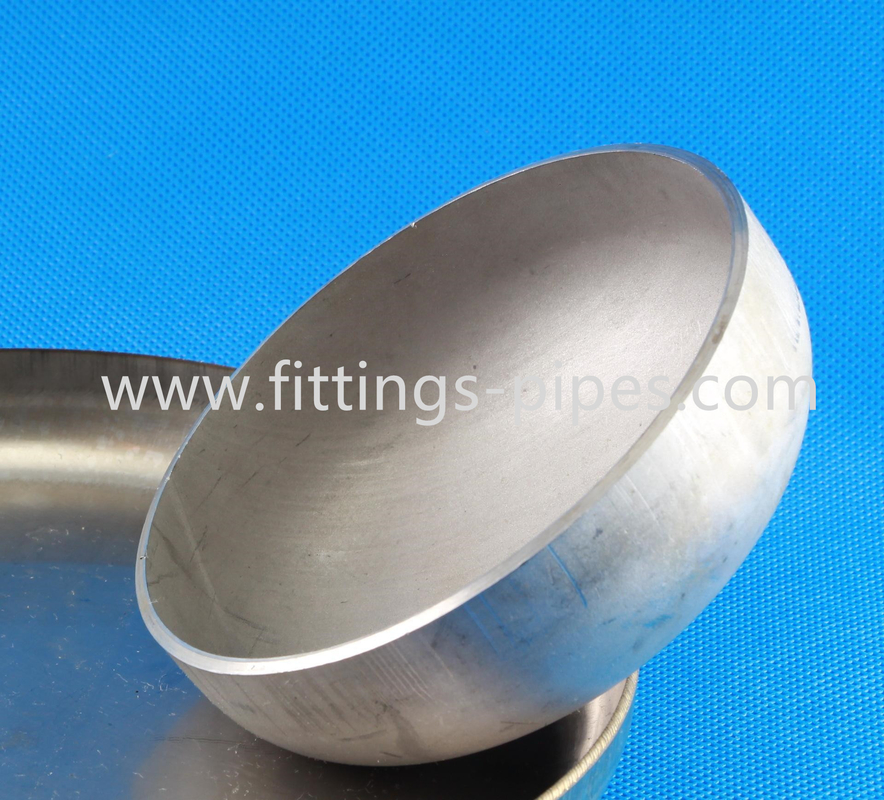

Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100 0

Brand Name HONG CHENG
Product Name pipe cap,steel cap, alloy steel pipe cap
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin China (Mainland)
OD 1/8-28"
Wall Thickness

SCH20,SCH30,SCH40,SCH80,SCH100.SCH120,SCH160,STD,XS,XXS,

CLASS A, CLASS B, CLASS C,

Length Less than 12m (as buyer's requirements)
Material Carbon steel(ASTM A105,A350LF2,A350LF3,)


Stainless steel(ASTM A182 F304, F304L,F316,F316L,F321,F347,F310F44F51,A276 S31803, A182,

F43, A276 S32750,A705 631,632,A961, A484,



Alloy steel(ASTM A694 F42,F46,F52,F56,F60,F65,F70, A182

F12,F11,F22,F5,F9,F91,F1ECT)

Application Petroleum Chemical,Refinery, Pharmacy Industry, Food & Beverage Industry, Sea Water Desalination,Paper Making, Shipbuilding Industry, Electric power, Offshore & onshore oil&gas, Mining Industry, Water Treatment, Mechanical Making, Chemical fertilizer etc.
Equipment Pushing machine,beveling machine,sand blasting machine,etc
Testing

Direct-reading Spectrograph,Hydrostatic testing machine,X-ray

detector,Ultrasonic flaw detector,Magnetic particle detector,etc

Connection Thread NPT, BSPT, BSP ,Socket Welding
Surface Sand blasting, Galvanized
Temperature -10°C to +150°C
Standards DIN,3A,SMS,ISO,IDF
Shape Equal





Specification:

NPS

O.D.

D

LENGTH

H

LENGTH

H1

1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267
28 711 267
30 762 267
32 813 267
34 864 237
36 914 267
38 965 305
40 1016 305
42 1067 305
44 1118 343
46 1168 343
48 1219 343

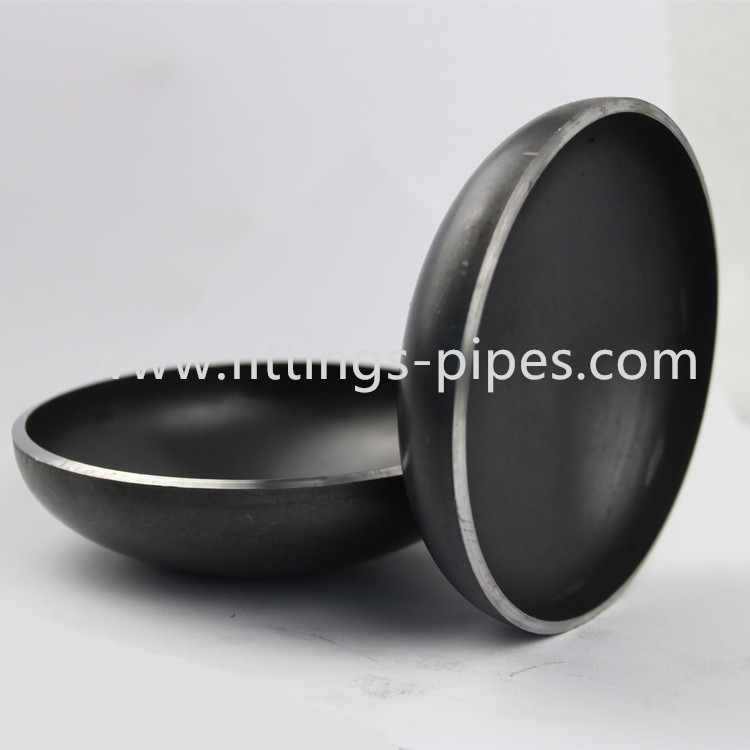

Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100 1



Supply Ability 3,0000pcs per month
Price Depending on quantity
Payment Terms T/T or Western Union or LC
Supply Ability 3,0000pcs per month
Delivery Time 10-50 days depending on quantity
Packing PLY-wooden case or pallet or as for clients' requirements
Advantages

1. 20 + years of production experience at your service.

2. The fastest delivery

3. The lowest price

4. Most comprehensive standards and materials for your choice.

5. 100% export.

6. Our products EXPORT to Africa, Oceania, mid east, eastern Asia, Western Europe etc.

Special design available as the requirement of customer



Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85
12 13.61 16.33 43.09
14 16.33 20.41
16 18.14 24.49
18 24.49 32.66
20 34.02 39.01
22 42.64 56.7
24 43.54 58.97
26 53.98 72.12
30 78.02 103.87
NPS STD XS SCH 160 XXS





Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100 2















Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100 3





Q345b Alloy Steel Pipe End Cap High Pressure Head Cover 1/2"-22" Sch60-100 4

FAQ:



  1. Are you a factory or trading company?

  We are a factory.we also have cooperated factory doing other steel business.

  2. How can I get a quotation from you ?

  You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.

  And you can also find our contact information on contact page.

  3.Can I get samples before order ?

  Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

  4. what is your delivery time ?

  The time of delivery is usually around 20 days(1*20FT as usual).

  We can send out in 2 days, if it has stock.

  5.What is your payment terms?

  Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.

  6.How does your factory do regarding quality control?

  Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.

  And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,

  we will make the last test to pick up the unqualified products
