Detail Information
Product Description

Detail Information
Size ::	Customized Size,1/2"~48"	Certification::	ASME DNV BV API CE ABS CE
Material::	Stainless Steel Butt Welding	Model Number::	90 Degree Elbow
Thickness::	SCH20 SCH40 STD SCH60 SCHXS SCH80 SCH160 SCHXXS	DEGREE::	15° 30° 45° 60° 90° 180°
Standard::	Astm A234 / Ansi B16.9	Application::	Supply Water/oil System
Supply Ability::	10,000 Pieces/month
High Light:	butt weld 304 stainless steel elbow , 304 stainless steel elbow 15 degrees , butt weld elbow stainless steel 304

Product Description

Steel Pipe Elbow ASTM 45 Degree 90 Degree LR DN500 SCH160 Butt WeldingAlloy Steel A234 WPB,A234 WP5 WP11 WP9 Elbow

Pipe Fittings Elbow 90° Alloy Pipe Fitting Elbow DN15-1200 Is Very Versatile
Alloy elbow is a general term for a variety of elbows. It is used to connect two pipes with the same nominal diameter to make the pipe bend at 90° or other angles. It is made of various materials and alloy elbows are very versatile.
Ordinary bronze alloy elbows are more common in general tap water pipes, but with the improvement of living standards, many tap water pipes use stainless steel elbows.
Hot forming
The hot push elbow forming process is to use a special elbow push machine, core mold and heating device, so that the blank sleeved on the mold moves forward under the push of the push machine, and is heated, expanded and bent during the movement. the process of. The deformation characteristic of the hot push elbow is to determine the diameter of the tube blank according to the law of constant volume before and after the plastic deformation of the metal material. The diameter of the tube blank is smaller than the diameter of the elbow, and the deformation process of the blank is controlled by the core mold, so that the inner arc is compressed The metal flow is compensated to other parts that are thinned due to diameter expansion, thereby obtaining an elbow with uniform wall thickness.
The hot push elbow forming process has the characteristics of beautiful appearance, uniform wall thickness and continuous operation, and is suitable for mass production. Therefore, it has become the main forming method for carbon steel and alloy steel elbows, and is also applied to certain specifications of stainless steel elbows. Is forming.
ASTM A234 is the standard specification for pipe fittings of wrought carbon and alloy steel for high temperature service.
This specification covers wroght carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ANSI B16.9, ANSI B16.11, ANSI B16.28, MSS SP-79 and MSS SP-95.
The fittings are for use at moderate and elevated temperature.

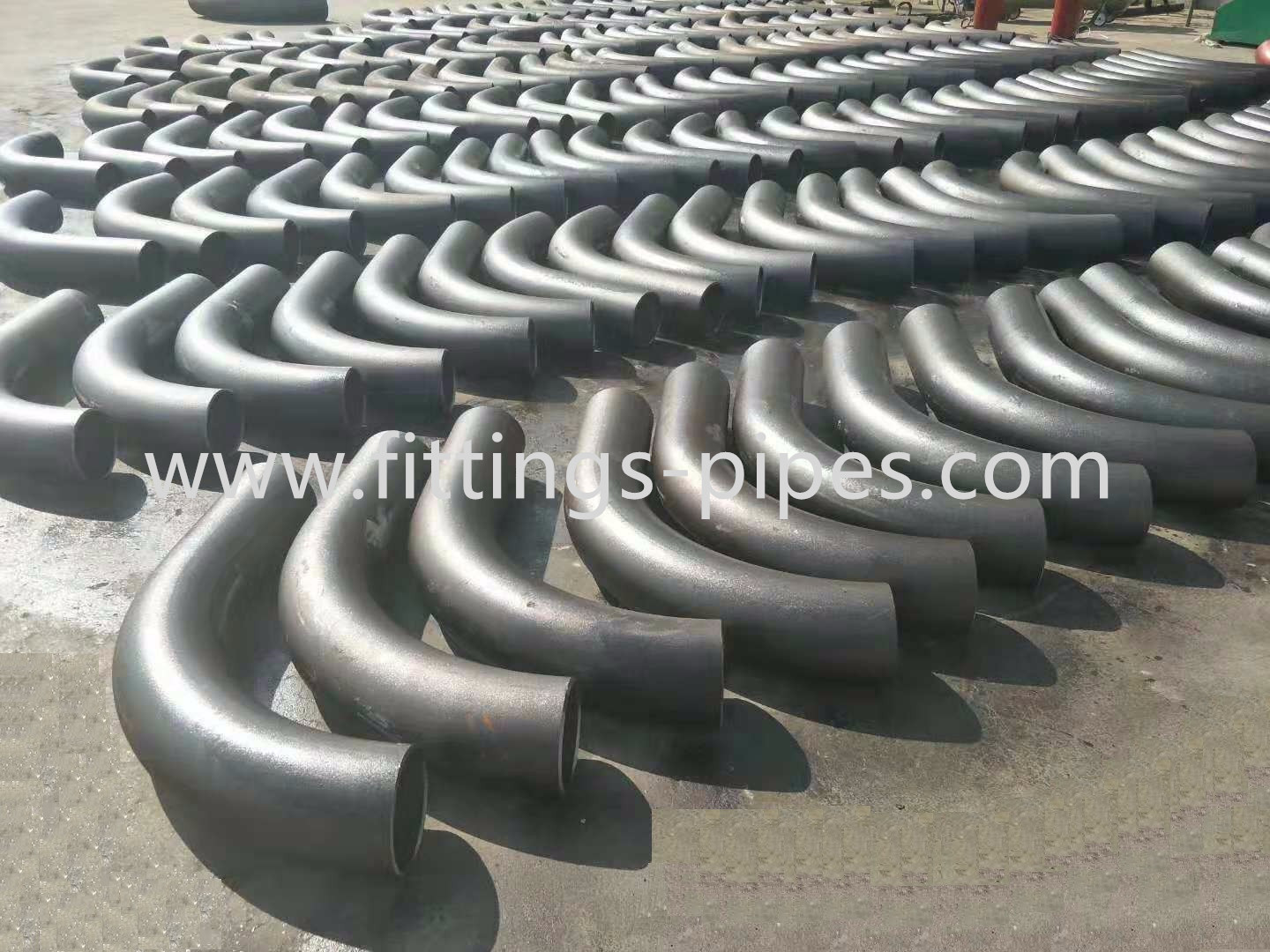

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 0

Material NO.

Chemical component content

Mechanical properties

Tensile Strength

Yield strength

elongation

carbon steel

A234WPB

≤0.3

0.29-1.06

≥0.1

≤0.058

≤0.05

415-585

≥240

≥30

A420 WPL6

≤0.3

0.6-1.35

0.15-0.3

≤0.04

≤0.035

415-585

≥240

≥30

alloy steel

A234 WP5

≤0.15

≤0.6

≤0.5

≤0.04

≤0.03

4-6

0.44-0.65

415-585

≥205

≥20

A234 WP11

0.05-0.2

0.3-0.8

0.5-1

≤0.030

1-1.5

0.44-0.65

415-585

≥205

≥20

A234 WP22

0.05-0.15

0.3-0.6

≤0.5

≤0.04

2-2.5

0.87-1.13

415-585

≥205

≥20

A234 WP91

0.08-0.12

0.3-0.6

0.2-0.5

≤0.02

≤0.015

8-9.5

0.85-1.05

≥590

≥415

≥20

pipeline steel

A860 WPHY42

≤0.20

1-1.45

0.15-0.4

≤0.015

≤0.030

≥415

≥290

A860 WPHY52

≤0.20

1-1.45

0.15-0.4

≤0.015

≤0.030

≥455

≥360

A860 WPHY60

≤0.20

1-1.45

0.15-0.4

≤0.015

≤0.030

≥515

≥415

A860 WPHY65

≤0.20

1-1.45

0.15-0.4

≤0.015

≤0.030

≥530

≥450

A860 WPHY70

≤0.20

1-1.45

0.15-0.4

≤0.015

≤0.030

≥550

≥485

stainless steel

A403 WP 304

≤0.08

≤2

≤1

≤0.04

≤0.03

18-20

8-11

≥515

≥205

≥30

A403 WP 304L

≤0.03

≤2

≤1

≤0.04

≤0.03

18-20

8-13

≥485

≥170

≥30

A403 WP 316

≤0.08

≤2

≤1

≤0.045

≤0.03

16-18

2-3

10-14

≥515

≥205

≥30

A403 WP 316L

≤0.03

≤2

≤1

≤0.045

≤0.03

16-18

2-3

10-15

≥485

≥170

≥30

A403 WP 321

≤0.08

≤2

≤1

≤0.045

≤0.03

17-19

9-12

≥515

Sfenry ANSI B16.9 LR BW ASTM A234 GR.WPB SCH40 Butt Weld 90 Degree Pipe Elbow

We Sfenry has been engaged producing and supplying all kinds of flanges & pipe fittings over 16 years.

Size	SMLS ---1/2"-24" WELDED--24"-48"
Degree	22.5deg, 30deg, 45deg, 60deg, 90deg, 180deg
Thickness	sch5, sch5s, sch10s, sch10, sch20, sch30, sch40, sch40s, sch80s,STD, SCH60, XS, sch80, sch100, sch120, sch140, sch160, XXS, or as per your requirement
Standard	ASME B16.9, ASME B16.28, ASME B16.25, MSS SP 75, DIN 2605, JISB2311 JISB2312 JISB2313, BS, GB, etc
Mterial	carbon steel: A106 GR.B, A234 WPB, A234 WPC, A420 WPL6, 20#, 10#, Q235 etc. Stainless steel: ASTM A403 WP304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc. Alloy steel: ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,12 Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1, ect
Surface	usually paint black, galv., for carbon steel and alloy steel, and for stainless steel bends we usually dont do anything on the surface
Certification	ISO 9001:2015
Packing	plywood cases, pallets, or as per your request.
Application	Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc
Port of delivery	Shanghai port, Xingang port, Xiamen port, Ningbo port etc.

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 3

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 4

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 6

Best service for our clients is our aim with our high quality products and the best protection for our products, to make sure the cargo in perfect condition once arriving our customs' hand.

At the same time, our price is competitive among our competitors!

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 7

Butt Weld 304 Stainless Steel Elbow Pipe Fittings 15 Degrees -180 Degrees 8
