Home ProductsHigh Pressure Boiler Steel PipeAstm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length
Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length
Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length

Product Details:
Place of Origin: China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1"TO36 "
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: 0.5 Ton US $2843/ Ton；>3 Tons US $2510/ Ton
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name:: High Pressure Boiler Steel Pipe Standard:: ASTM
Payment Terms:: 30%TT Advance + 70% Balance Surface Treatment:: Cold Rolled
Section Shape:: Round Length:: 12M, 6m, 6.4M, 6M, 12M/Customed
End Protector:: Plastic Pipe Cap Supply Ability：: 15000 Ton/Tons Per Month
Highlight:

Astm A335 Alloy Steel Pipe

,

6m Alloy Steel Pipe

,

12m High Pressure Boiler Pipe

Product Description

Astm A335 P22 Alloy Steel Pipe, High Pressure Boiler Pipe Astm A335 P22

about us:

Hebei Hongcheng Pipe Industry Co., Ltd. was established in 1992 and is located in the Development Zone of Yanshan County, Hebei Province. We are one of the largest steel product manufacturers on the coast of the Bohai Sea. A three-dimensional comprehensive transportation network has been formed. Our geographical position is superior and the transportation is very convenient.

We are one of the biggest manufacturer for steel products with a 80, 000-square-meter workshop,covers an area more than 120,000 square meters in size ,and well over 50 million USD in assets.our main products including stainless steel pipe ,stainless steel plate,stainless steel bar,seamless steel pipe ,low temperature steel pipe ,alloy steel pipe ,boiler pipe ,carbon steel plate ,alloy steel plate ,pipe fitting,copper products,titanium products and nickel products.our company has the most advanced production equipment which guarantee the most advantageous product quality.Based on highly quality products and best service,we have develop clients all round the world ,our products are widely used in industry in USA ,Germany ,India ,Dubai,Iraq,Viet Nam,Ireland,Sinagpore,and so on .

Our goal is offer the best quality products with the lowest price and best service . We believe that our company will have a speed develop with the support from both at home and at abroad

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 0

Standard:
GB5310----seamless steel pipe for high pressure boiler
GB6479----high pressure seamless steel pipe fertilizer facility
GB9948----seamless steel pipe for petroleum cracking
ASTM A213----Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A335----Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
JIS G3458----Alloy Steel Pipes (STPA 12/ 20/ 22/ 23/ 24/ 25/ 26)
JIS G3462----Alloy Steel for Boiler and Heat Exchanger Tubes (STBA12/ 13/ 20/ 22)
JIS G3467----Steel Tubes for Fired Heater (STF 410/STFA 12/ 22/ 23/ 24/ 25/ 26)
DIN17175-79III----Electrical Resistance Or Induction Welded Steel Tubes for Elevated Temperature
Main product:
Cr5Mo (STFA25 STPA25 STBA25 T5 P5)
15CrMo (STFA22 STPA22 STBA22 T12 P12)
1.25Cr0.5Mo (STFA23 STPA23 STBA23 T11 P11)
Cr9Mo (STFA26 STPA26 STBA26 T9 P9)
12Cr1MOV
12Cr2Mo (10CrMo910 T22 P22)
10Cr9Mo1VNb T91 (P91)
12Cr2MoWVTiB (R102)&
v id="StyleTableProd">

No. Mechanical properties in normal temperature
standard number Steel No. σ s σ b δ s α k
  (mpa) (mpa) (%) (J/cm2)
GB5310 12CrMo 206 412~559 21 69u
15CrMo 235 441~638 21 59u
12Cr1MoV 255 471~638 21 59u
12Cr2Mo 280 450~600 20
ASTM A335 P1 207 379 22
P11 207 413 22
P12 207 413 22
P2 207 379 22
P22 207 413 22
P5 207 413 22
P9 207 413 22
DIN17175 19Mn5 300~310 510~610 19
13CrMo44 280~290 440~590 22
14MoV63 310~319 460~610 20
10CrMo910 269~280 450~600
JIS G3458 STPA12 206 382
STPA20 206 412
STPA22 206 412
STPA23 206 412
STPA24 206 412
STPA25 206 412
STPA26 206 412
JIS G3462 STBA12 206 382
STBA13 206 412
STBA22 206 412
STBA20 206 412
STBA23 206 412

chemical constitution:

No. chemical constitution (%)
Standard No. Steel No. C Mn Si Cr Mo V S P

GB5310 12CrMo 0.08~0.15 0.40~0.70 0.17~0.37 0.40~0.70 0.40~0.55   ≤ 0.035 ≤ 0.035
15CrMo 0.12~0.18 0.40~0.70 0.17~0.37 0.80~1.10 0.40~0.55   ≤ 0.035 ≤ 0.035
12Cr1MoV 0.08~0.15 0.40~0.70 0.17~0.37 0.90~1.20 0.25~0.35 0.15~0.30 ≤ 0.035 ≤ 0.035
12Cr2Mo 0.08~0.15 0.40~0.70 ≤ 0.50 2.00~2.50 0.90~1.20   ≤ 0.035 ≤ 0.035
ASTM A335 P1 0.10~0.20 0.30~0.80 0.10~0.50   0.44~0.65   ≤ 0.045 ≤ 0.045
P11 ≤ 0.15 0.30~0.60 0.50~1.00 1.00~1.50 0.44~0.65   ≤ 0.030 ≤ 0.030
P12 ≤ 0.15 0.30~0.61 ≤ 0.50 0.80~1.25 0.44~0.65   ≤ 0.045 ≤ 0.045
P2 0.10~0.20 0.30~0.61 0.10~0.30 0.50~0.81 0.44~0.65   ≤ 0.045 ≤ 0.045
P22 ≤ 0.15 0.30~0.60 ≤ 0.50 1.90~2.60 0.87~1.13   ≤ 0.030 ≤ 0.030
P5 ≤ 0.15 0.30~0.60 ≤ 0.50 4.00~6.00 0.45~0.65   ≤ 0.030 ≤ 0.030
P9 ≤ 0.15 0.30~0.60 0.25~1.00 8.00~10.00 0.90~1.10   ≤ 0.030 ≤ 0.030
DIN17175 19Mn5 0.17~0.22 1.00~1.30 0.30~0.60 ≤ 0.30     ≤ 0.04 ≤ 0.04
13CrMo44 0.10~0.18 0.40~0.70 0.10~0.35 0.70~1.10 0.45~0.65   ≤ 0.035 ≤ 0.035
14MoV63 0.10~0.18 0.40~0.70 0.10~0.35 0.30~0.60 0.50~0.70 0.22~0.32 ≤ 0.035 ≤ 0.035
10CrMo910 0.08~0.15 0.40~0.70 ≤ 0.50 2.00~2.50 0.90~1.20   ≤ 0.035 ≤ 0.035
JIS G3458 STPA12 0.10~0.20 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STPA20 0.10~0.20 0.30~0.60 0.10~0.50 0.50~0.80 0.40~0.65   ≤ 0.035 ≤ 0.035
STPA22 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.035 ≤ 0.035
STPA23 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.030 ≤ 0.030
STPA24 ≤ 0.15 0.30~0.60 ≤ 0.50 1.90~2.60 0.87~1.13   ≤ 0.030 ≤ 0.030
STPA25 ≤ 0.15 0.30~0.60 ≤ 0.50 4.00~6.00 0.45~0.65   ≤ 0.030 ≤ 0.030
STPA26 ≤ 0.15 0.30~0.60 0.25~1.00 8.00~10.00 0.90~1.10   ≤ 0.030 ≤ 0.030
JIS G3462 STBA12 0.10~0.20 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STBA13 0.15~0.25 0.30~0.80 0.10~0.50   0.45~0.65   ≤ 0.035 ≤ 0.035
STBA22 ≤ 0.15 0.30~0.60 ≤ 0.50 0.80~1.25 0.45~0.65   ≤ 0.035 ≤ 0.035
STBA20 0.10~0.20 0.30~0.60 0.10~0.50 0.50~0.80 0.40~0.65   ≤ 0.035 ≤ 0.035
STBA23 ≤ 0.15 0.30~0.60 0.50~1.00 1.00~1.50 0.45~0.65   ≤ 0.035 ≤ 0.030

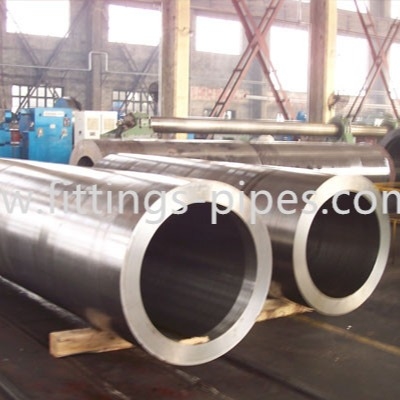

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 1

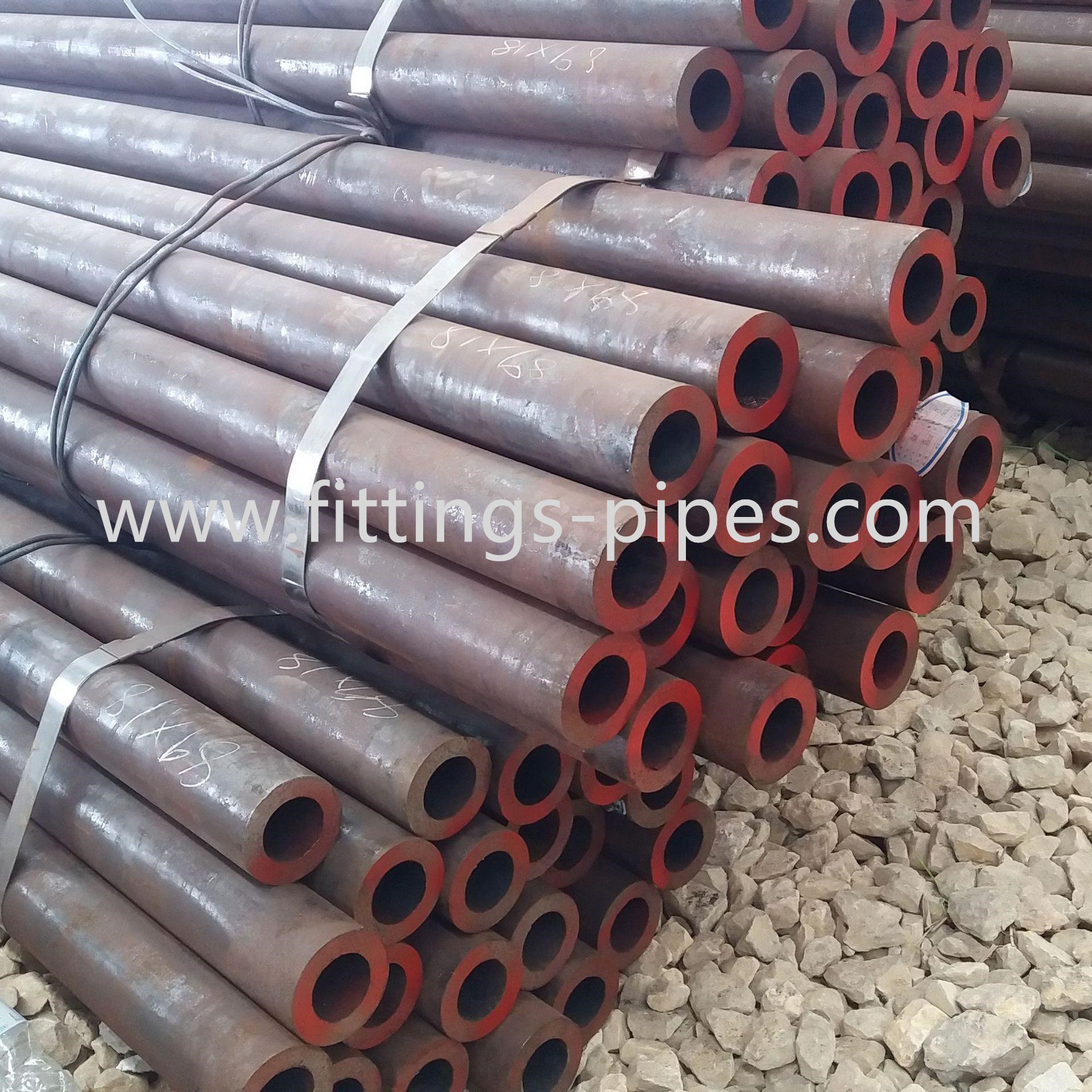

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 2

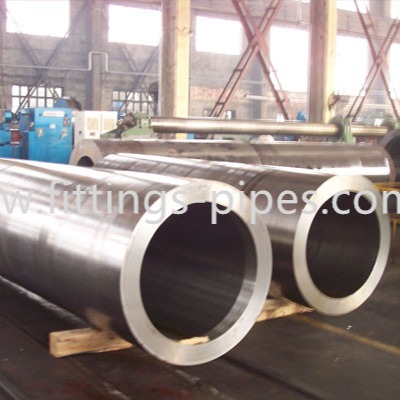

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 3

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 4

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 5

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 6

Astm A335 P22 Alloy Steel Pipe , High Pressure Boiler Pipe 6m 12m Length 7
