Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PCS
Price:	10-50 pieces US $86 / Piece;>50 pieces US $ 74/ Piece
Packaging Details:	Standard export seaworthy package,or as required
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Contact Now

Detail Information
Product Description

Detail Information
Certification ::	ISO TUV BV SGS,etc.	Standard::	ASME B16.11
Model Number::	WB36	Payment Terms::	T/T， L/C， Western Union， Paypal
Supply Ability ::	Annual Output Of 3 Million-5 Million Pieces	Special Function ::	Anti-rust And Anti-corrosion Performance Forged
Highlight:	Forged Steel Lateral Tee Pipe Fitting , WB36 Lateral Tee Pipe Fitting , ASME Lateral Tee Fitting

Product Description

Forged Steel Pipe Fittings Wb36(T36/P36,15nicumonb5-6-4,1.6368)Forging/Forged Steel Eccentric Laterals Tees Fittings

We are professional WB36(T36/P36,15NiCuMoNb5-6-4,1.6368)Forging/Forged Steel Eccentric Laterals Tees Fittings factory from china

WB36 is a bainitic Ni-Cu-Mo steel micro-alloyed with niobium. It is also known as 15NiCuMoNb5-6-4 according to EN 10216-2 and VdTÜV377/2, T36 according to ASTM A 213 and P36 according to ASTM A 335.

This grade is mainly used in high-pressure, medium-temperature feedwater lines (close to 400 °C

WB36 exhibits excellent high-strength properties up to 450 °C. The reduced weight of the feedwater piping components compared with conventional carbon steel allows improved resistance to thermal fatigue and very good heat transfe

Heat treatment:
Normalized / Annealed / Quenched / tempered
Surface Treatment:
painting,plating,polishing,black oxide,transparent anti-rust oil
Quality control:
UT,MT,RT,PT,chemical composition test,mechanical property test,etc.
Inspection:
1, Raw material certificate(material chemical composition) 2, Heat treatment sheet report
3, Dimension inspection report 4, UT test report
Delivery condition:
Hot forged +Rough machined (black surface after Q /T)+ Turned
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, "in-time" delivery

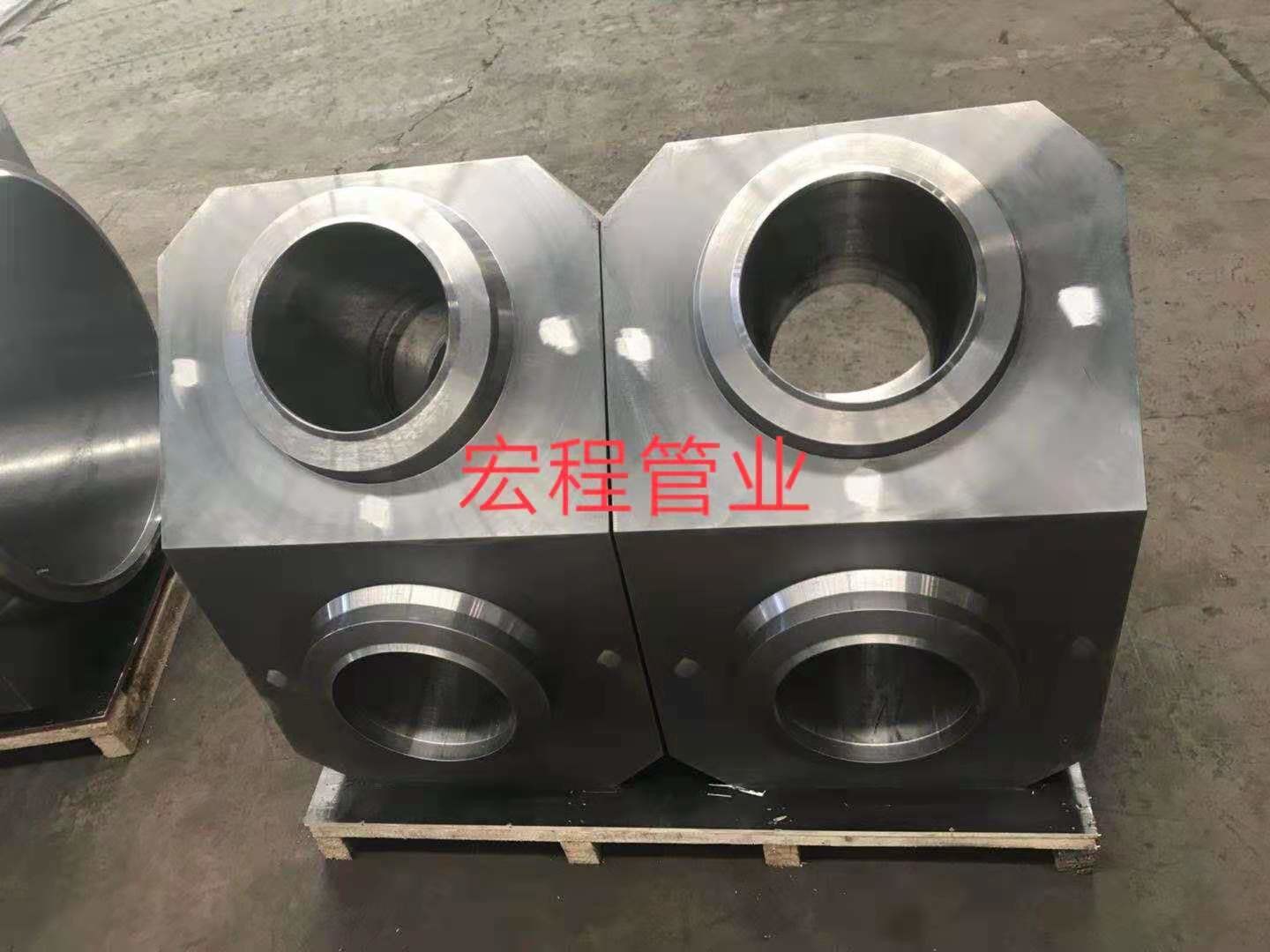

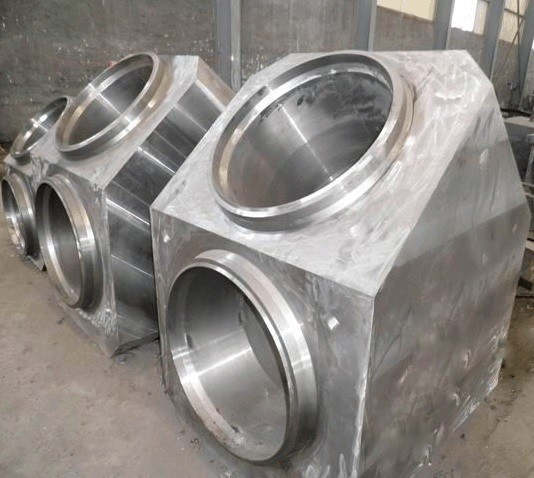

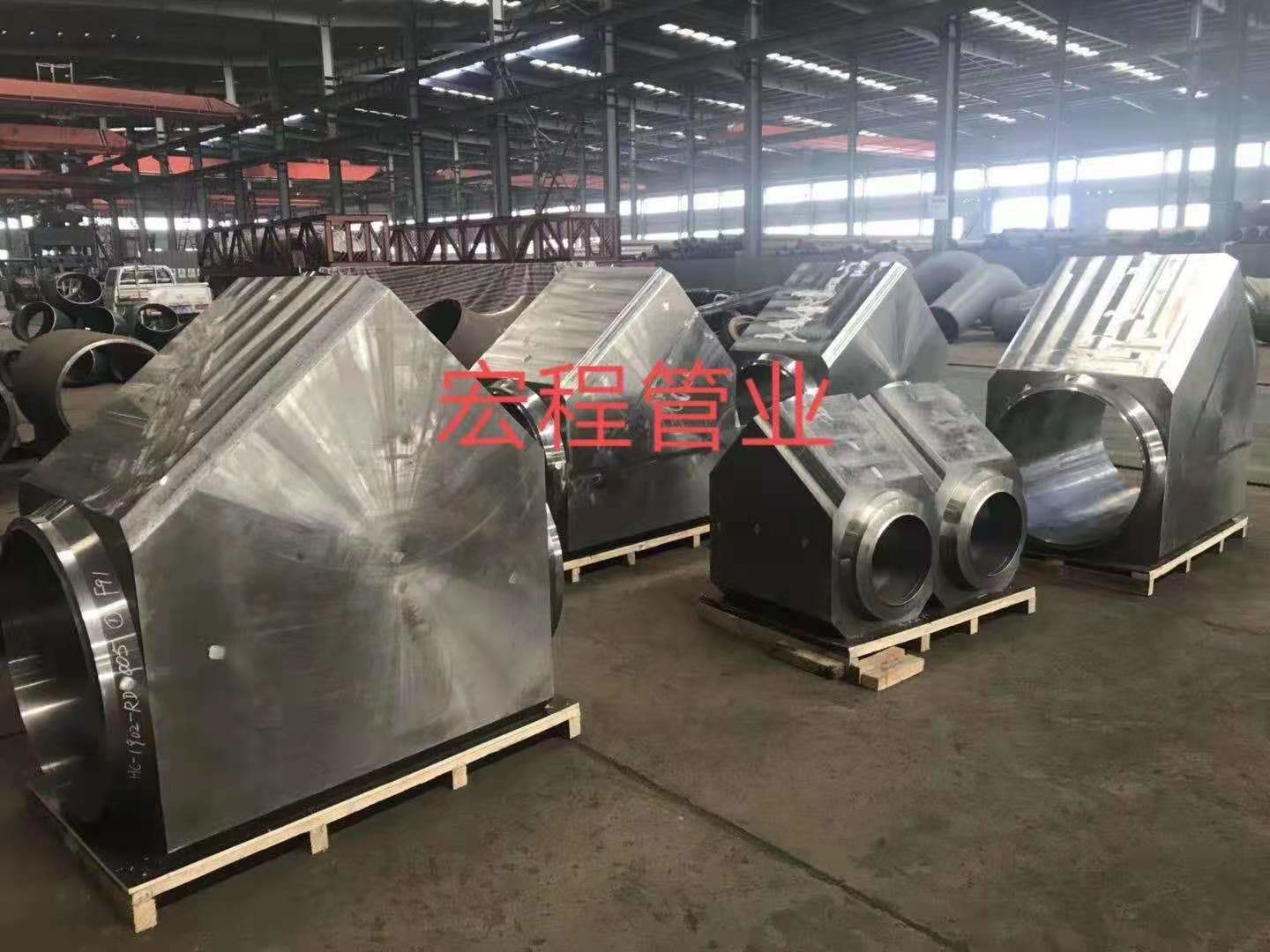

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard 0

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard 1

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard 2

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard 3

FAQ:

Q1: How to order?

1. To specity standard and the thickness.

2. To specity surface treatment.

3. To specity figure size and quantity.

Q2: After sales service?

Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.

Q3: Can I have a sample order for pipe fittings?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q4: Do you offer guarantee for the products?

Yes, we offer almost 20 years warranty to our products.

Forged Steel Lateral Tee Pipe Fitting WB36 ASME B16.11 Standard 4
