Anti Rust Painting Stainless Steel Pipe Tee , Ansi B 16.11 Pipe Fittings Zinc Coated

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 10-50 pieces US $86 / Piece;>50 pieces US $ 74/ Piece
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Size Range: From ½” Up To 24” Certification:: PED .TUV. ISO
Pressure Rating: 2000LB/3000LB/6000LB Type :: Elbow,Tee, Bushing,Cap,union
Material :: Carbon Steel/ Staniless Steel /Alloy Steel Painting: Anti-rust Painting/ Zinc Coated/ Upon Requirement
High Light:

Ansi Zinc Stainless Steel Pipe Tee

,

Anti Rust Stainless Steel Pipe Tee

,

Coated Ansi B 16.11 Pipe Fittings

Product Description

Forged Steel Pipe Fittings Ansi B16.11 Stainless Steel Forged Fittings Welded Stainless Steel Pipe Tee

1. Quality Control and Detection Equipment

Our QC department work is inspection and final inspection. We promise you as below:

1. Check the raw material before the production..

2. Have inspection during the production.

3. Make 100% inspection before the shipment.

2.What is the details of Stainless Steel pipe fittings

Socket Weld Dimensional Data
1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld
Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E 7/16 7/16 17/32 5/8 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 5/8



Class 6000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E - - - 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 1/2 2 3/4



Class 9000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 1/2 1 3/4 2 2 3/8 2 1/2 3 - - -
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 3 11/16 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 - - -
E - - - 1 1 1/8 1 1/4 1 3/8 1 1/2 2 1/8 - - -





Type stainless steel forged fitting scoket welded tee hight pressure stinless steel pipe fitting ANSI B16.11
Size 1/2' ~ 4'
Standards
Material Stainless Steel: 304, 316L
Packing Wooden Case,as customers’ requirement
Applications Chemical,Food,Beer.Decorate.Fluid
Min order 10 pieces
Delivery time 10 after receipt of advanced payment
Productivity 20000 Pcs/Month
Keywords: sw tee scoket welded stainless steel ss304/304L 316L pipe fitting ANSI B16.11







Anti Rust Painting Stainless Steel Pipe Tee , Ansi B 16.11 Pipe Fittings Zinc Coated 0

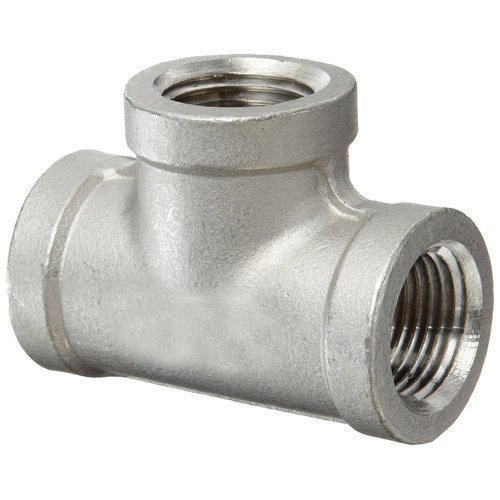

Anti Rust Painting Stainless Steel Pipe Tee , Ansi B 16.11 Pipe Fittings Zinc Coated 1

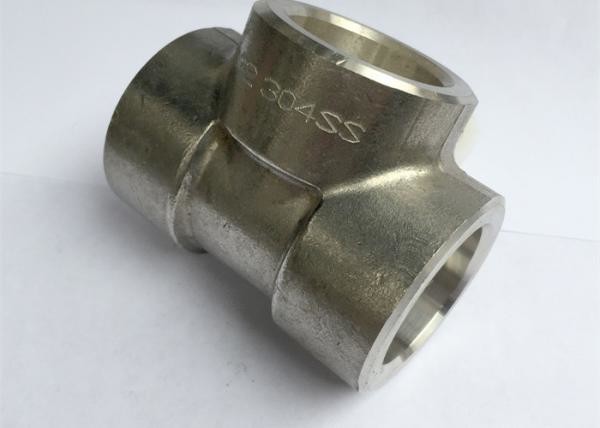

Anti Rust Painting Stainless Steel Pipe Tee , Ansi B 16.11 Pipe Fittings Zinc Coated 2


FROGED FITTING ASME B16.11

Hot Dipped Galvanized Fitting ASME B16.11 ASTM A105 Elbow Cap Tee 3000LB

High Pressure Forged Fitting ASME B16.11 ASTM A105 Elbow Cap Tee 3000LB 2000LB

90DEG 45DEG Forged Steel Elbow ASME B16.11 Elbow Cap Tee 3000LB Threaded SW

3000LBS Forged Fitting ASME B16.11 Screwed Socket Welded Elbow Tee Coupling

Carbon Steel Forged Fittings ASME B16.11 3000# Threaded SS Forged Fitting

3000LB 2000LB Threaded SW Fitting ASME B16.11 ASTM A105 Elbow Cap Tee



Anti Rust Painting Stainless Steel Pipe Tee , Ansi B 16.11 Pipe Fittings Zinc Coated 3

FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in wenzhou City, zhejiang Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
