Detail Information
Product Description

Detail Information
Size Range:	From ½” Up To 24”	Certification::	PED .TUV. ISO
Standard::	ANSI/ASME, JIS, EN, MSS, DIN, BS,GB, SH, HG ETC.	Pressure Rating:	2000LB/3000LB/6000LB
Packaging Details::	Standard Export Seaworthy Package Or As Required.	Steel Grade::	Alloy
Download:	Also Can Supply IBR Fittings And Specialized NACE & HIC Fittings.ement	Material ::	Carbon Steel/ Staniless Steel /Alloy Steel
End ::	Socket / Threaded	Painting:	Anti-rust Painting/ Zinc Coated/ Upon Requirement
Highlight:	Elbow Forged Carbon Steel Pipe Fittings , N00825 Forged Carbon Steel Pipe Fittings , INCOLOY carbon steel forged pipe fittings

Product Description

Forged Steel Pipe Fittin ASME B16.11 Forged pipe fitting Nickel alloy UNS N00825 INCOLOY 825 street elbows NPT BSPP BSPT

1. Standard

Standard	Types	Class Rating/Schedule	Ends	Size
ASME B16.11	90°Elbow/ 45°Elbow/ Tee/ Cross	2000LB	Threaded	1/4''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Pipe Cap/ Half Coupling/Full Coupling	3000LB/6000LB	Threaded	1/4''~4''
		3000LB/6000LB	Socket-welding	1/8''~4''
	90°Elbow/ 45°Elbow/ Tee/ Cross/Half Coupling/Full Coupling	9000LB	Socket-welding	1/2''~2''
	Street Elbow	3000LB	Threaded	1/8''~2''
	Street Elbow	6000LB	Threaded	1/8''~1-1/2''
	Lateral Tee	3000LB	Socket-welding	1/4''~2''
		6000LB	Socket-welding	1/2''~1-1/2''
		3000LB	Threaded	3/8''~2‘’
		6000LB		1/2''~2''
		9000LB		1/2''~1-1/2''
	Flush Bushing/Hex Bushing/Hex Plug/Round Plug/Square Plug	3000LB/6000LB	Threaded	1/8''~4''
MSS SP79	Reducer Inserts	3000LB/6000LB/9000LB	Socket-welding	3/8‘’x1/4''~2x1/2''
MSS SP83	Union	3000LB	Socket-welding/Threaded	1/8''~3''
MSS SP95	Concentric/Eccentric Swaged Nipples		See Below Note1	1/4‘’~12''
MSS SP95	Bull Plugs		Threaded	1/8''~12''
MSS SP97	Weldolet	STD, XS, Sch 160/XXS	Butt-welding	1/8''~36‘’ or larger
	Sockolet	3000LB/6000LB	Socket-welding	1/8''~6''
	Threadolet	3000LB/6000LB	Threaded	1/8''~6''
	Nipolet	XS/XXS	Plain/Threaded	1/2''~2''
	Elbolet	3000LB/6000LB	Socket-welding/Threaded	1/4''~2''
	Elbolet	STD/XS/160/XXS	Butt-welding	1/4''~2-1/2'' or larger
	Latrolet	3000LB/6000LB	Socket-welding/Threaded	1/2''~2''
	Latrolet	STD/XS/160/XXS	Butt-welding	1/2''~2-1/2''
	Flangolet,Nipolet,Sweepolet,etc. available as per client' demands.
BS3799	Hex Nipple	3000LB/6000LB	Threaded	1/8''~2''x1/2''
	Bosses	3000LB	Threaded	1/8''~2''
	Bosses	6000LB	Threaded	1/8''~4''
	Pipe Nipple	40/STD/80/XS /160/XXS	See Below Note1	1/8''~6''
Material Grade	Nickel Alloy	ASTM / ASME B/SB 564 UNS N02200 (NICKEL200), UNS N04400 (MONEL 400), UNS N08825(INCOLOY825), UNS N06600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS N06625 (INCONEL 625), UNS N10276 ( HASTELLOY C 276), ASTM / ASME B/SB 160 UNS N02201 (NICKEL 201) ASTM / ASME B/SB 472 UNS N08020 ( ALLOY20 / 20CB3)
	Copper Alloy	ASTM / ASME B/SB 151 UNS C70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30)
	Stainless Steel	ASTM / ASME A/SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
	Duplex and Super Duplex Steel	ASTM / ASME A/SA 182 F44, F45, F51, F53, F55, F60, F61,F904L
	Carbon Steel	ASTM / ASME A/SA 105(N)
	Low Temp Carbon Steel	ASTM / ASME A/SA 350 LF 2.
	High Yield Carbon Steel	ASTM / ASME A/SA694 F52 F56 F60, F65, F70
	Alloy Steel	ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.
	Titanium	ASME ASTM SB/B381 Grade 2, Grade 5, Grade 7
Note1	PBE:Plain Both Ends BBE Bevel Both Ends TBE: Threaded Both Ends PSE:Plain Small End BSE:Bevel Small End TSE:Threaded Small End PLE:Plain Large End BLE:Bevel Large End TLE:Thread Large End
Note2	For the swage nipples,pipe nipples,the material can be referred to the pipe standard.
Note3	NPT(National Pipe Thread) FPT(Female Pipe Thread) MPT(Male Pipe Thread) BSPT(British Standard Pipe Thread)

2.Equivalent Grades of ASME SB564 Incoloy 825 Forged Fittings

STANDARD	UNS	WERKSTOFF NR.	JIS	AFNOR	BS	GOST	EN	OR
Incoloy Alloy 825	N08825	2.4858	NCF 825	NFE30C20DUM	NA 16	ЭП703	NiCr21Mo	XH38BT

Incoloy 825 Forged Fittings Specification

Specifications : ASTM B564 / ASME SB564

Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799

Size : 1/8" NB to 4" NB (Socketweld & Screwed-Threaded)

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)

Rating Pressure : Threaded End - 2000 /3000/ 6000 LBS. Socket-weld End - 3000 / 6000/ 9000 LBS.

Incoloy 825 Forged Pipe Fittings Chemical Properties

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Forged Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

3..ASME B16.11

ASME issues written replies to inquiries concerning interpretations of technical aspects of this Standard. Periodically certain actions of the ASME B16 Committee may be published as Cases. Cases and interpretations are published on the ASME Web site under the Committee Pages at http://cstools.asme.org/ as they are issued, and will be published within the next edition of the standard. Errata to codes and standards may be posted on the ASME Web site under the Committee Pages to provide corrections to incorrectly published items, or to correct typographical or grammatical errors in codes and standards. Such errata shall be used on the date posted. The Committee Pages can be found at http://cstools.asme.org/. There is an option available to automatically receive an e-mail notification when errata are posted to a particular code or standard. This option can be found on the appropriate Committee Page after selecting “Errata” in the “Publication Information” section.

ASME/ANSI B16.1 - 1998 - Cast Iron Pipe Flanges and Flanged Fittings

This Standard for Classes 25, 125, 250 Cast Iron Pipe Flanges and Flanged Fittings covers:

(a) pressure-temperature ratings,

(b) sizes and method of designating openings of reducing fittings,

(c) marking,

(d) minimum requirements for materials,

(e) dimensions and tolerances,

(f) bolt, nut, and gasket dimensions and

(g) tests.

3. ASME B16.11 Standard Scope

This standard contains pressure-temperature ratings, dimensions, tolerances, markings and material requirements for forged and threaded forged fittings. The relevant contents will be shown in below tables in this article.

Fitting Types and configuration

The types of pipe fittings ( differentiated by grade and specification) included in this standard is shown as below:

Including socket weld fittings and threaded fittings size in NPS inch. For example the 45 and 90 degree elbow, its size range is 1/2” to 4”, and the classes of the product are ranging in 3000, 6000 and 9000 lbs.

Table 1.

Notes: Plug and bushings are not identified by class designation. They may be used for ratings up to Class 600 designation.

Special Fitting

Pipe fittings with special threads or special flares can be manufactured upon negotiation between the supplier and the buyer. These fittings shall be considered to be in particular conformity to the standard if they are properly marked (see Chapter 4 in ASME B16.11) and comply with all other provisions of this standard.

Welding

Installation welding requirements are outside the scope of this standard. Installation welding shall be in accordance with the applicable piping code or the operating procedures of the piping system in which the fitting is installed.

Standard Measurement Units.

The standard measurement unit for linear dimensions is inches. Values in millimeters are only for reference .

3.Why chose us?

1.We have exported the below products for 10years,we have ability to deal with every In the process of delivery
Flange, Pipe fittings / Pipe tube / bar / forgings / plate sheet / bolts nuts gaskets
2.The products are manufactured in our own factory and our quality is strictly controlled.
3. We can provide any certificate that needs to be exported
4.We can offer the best price and high quality products.
5.We go to the conference every year to open customers and visit customers once a year.
6.We have one year after sales service for our products,and you can contact us if you have any questions within one years

FAQ:
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the beginning to the end.Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
Q:May I have some samples before bulk order?
A:Yes, of course. samples are free but you have to pay the courier.
Q:Can we visit your Company?
A:Surely. Welcome to China and we will be honored to have a customer and friend.
Q:What is the payment terms?
A:T/T, L/C ,Western Union,etc.
Q:What's your delivery time?
A:For stocks, we can send the goods to loading port within 7 days after receiving your deposit.
For production period, it usually needs about 10days- 60days after receiving the deposit.
Q:Is it OK to mark my logo on your products?
A:Yes. OEM and ODM are available for us

Tag:

Zinc Coated Forged Steel Pipe Fittings

A182 Forged Steel Pipe Fittings

Forged Steel Pipe Fittings Coupling

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PCS
Price:	10-50 pieces US $86 / Piece;>50 pieces US $ 74/ Piece
Packaging Details:	Standard export seaworthy package,or as required
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

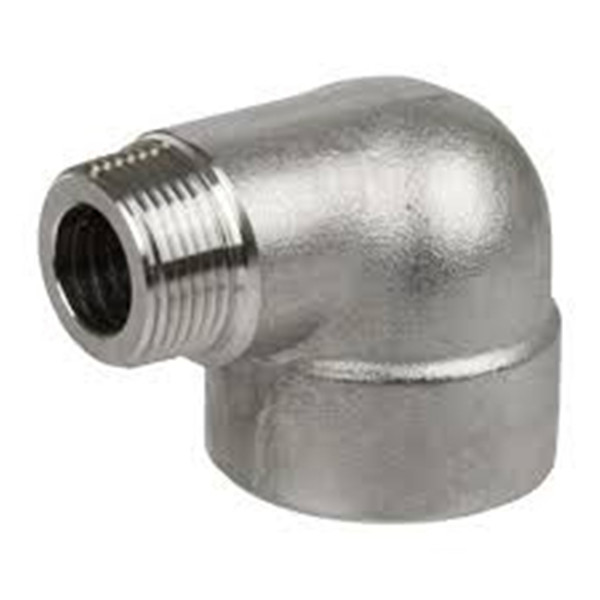

Street Elbow Forged Carbon Steel Pipe Fittings UNS N00825 INCOLOY 825 Material

Elbow Forged Carbon Steel Pipe Fittings

N00825 Forged Carbon Steel Pipe Fittings

INCOLOY carbon steel forged pipe fittings

Forged Steel Pipe Fittin ASME B16.11 Forged pipe fitting Nickel alloy UNS N00825 INCOLOY 825 street elbows NPT BSPP BSPT
