Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: FOB USD 1-100/PCS
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: China Certification: API CE And ISO 9001:2008
Stainless Steel:: ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, Ect. Wall Thickness: SCH5S To SCHXXS
Packaging Details:: PLY-WOODEN CASE OR PALLET Payment Terms: T/T, L/C At Sight
High Light:

A234 Stainless Buttweld Caps

,

CE Stainless Buttweld Caps

,

Buttweld SS End Cap

Product Description

Astm A234 Pipe Cap/Stainless Steel Cap /Steel Pipe Fittings/ Stainless Steel Pipe End Cap Steel Pipe End Cap

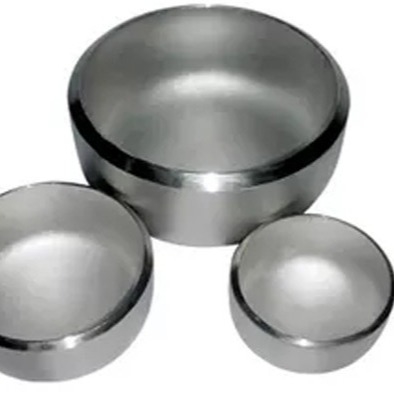

Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 0

Products Seamless Butt-Welded Carbon Steel Pipe Fittings
Brand: Kingmetal OEM Brand is avaliable
Item Elbow L/R S/R,Equal Tee,Reducing Tee,Concentric Reducer,Eccentric Reducer,Cap, Bend
Standard ASME ANSI B16.9,ANSI B16.28,MSS-SP-75
DIN DIN2605,DIN2615, DIN2616, DIN2617, DIN28011
SGP JISB2313
EN EN10253-1 EN10253-2
Material ASME A234 WPB,A234 WP1,A234 WP5,A234,WP9,
A234 WPB11,A234 WPB12,A234 WPB22,WP91,
A420,WPHY42,WPHY52,WPHY60,WPHY65,
WPHY70,WP304,WP304L,WP304H,WP316,
WP316L,WP321,WP347,WP347H
DIN ST37.0,ST35.8,ST45.8,S235JR,P235GH,P265GH,
10CrMo910,15CrMo,12Cr1MoV
JIS JIS G3454,STPG370,TPG410
Surface Black paint/bright paint/Galvanized
Marking As customer’s requirements
Package By strong plywood cases
Delivery Within 30 days
Certificate PED, ISO9001:2008

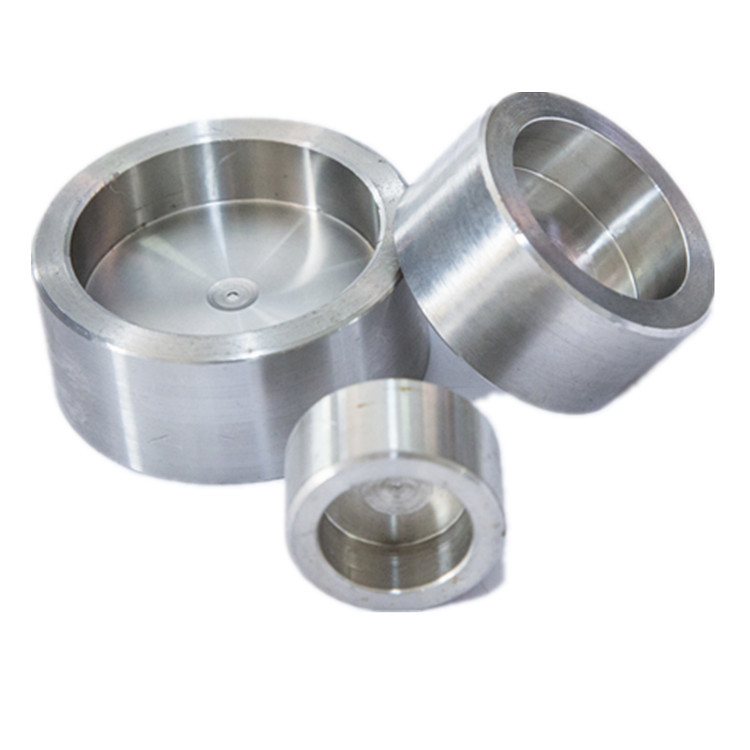

Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 1

The convex cap have several shapes: a hemispherical cap, an elliptical cap, a dish cap, and a spherical cap. From the point of view of force, the hemispherical cap is gradually not good to manufacture, but it is gradually manufactured from the viewpoint of manufacturing difficulty.

Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T1340
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil

Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection

Thickness:

cap : 1/2″~40″ DN15~DN1016

Welded cap: 24 “~72” DN600~DN1800

Wall Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s

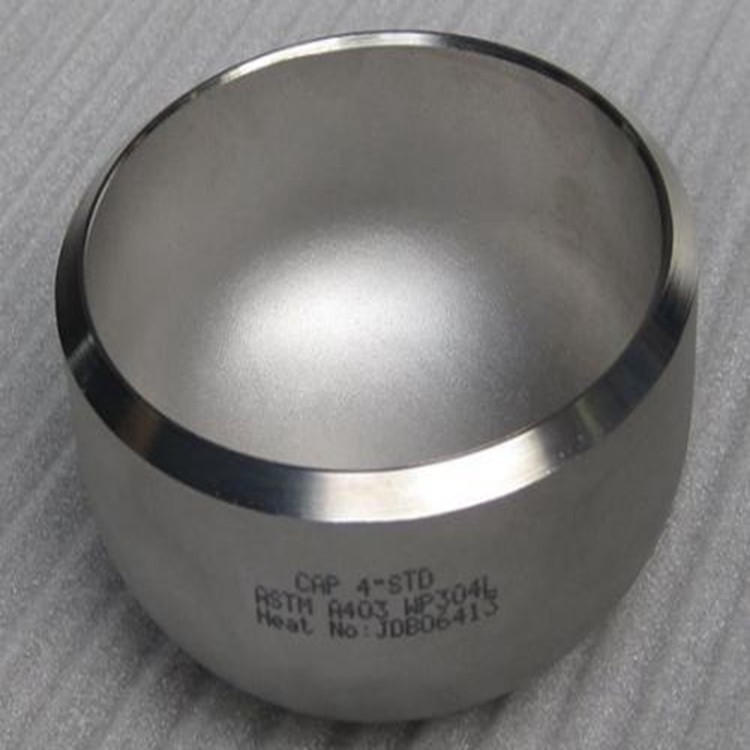

Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 2



Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 3

COMPANY INFORMATION:

HONGCHENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.

Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 4

1. Q: I haven't done business with you guys before,how can I trust your company?

A: We've got quite a lot authority certificates, for example, CE, ISO9001.

2. Q: What is the minimum order?

A: Yes, our company mainly deals with wholesale deals,more quantity, more discount. Minimum order quantity is 5ton

3. Q: How can I get a sample to check your quality? How long can I get the sample?

A: After price confirmed, FREE SAMPLE could be provided for your evaluation. After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.

4. Q: What payment methods your company accept?

A: We accept T/T, L/C, D/P.

5. Q: What's the shipment terms and delivery time of your company?

A: 30days

Astm A234 Stainless Buttweld Caps , SS End Cap API CE Certificate 5
