Home ProductsSteel Pipe End CapSCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum

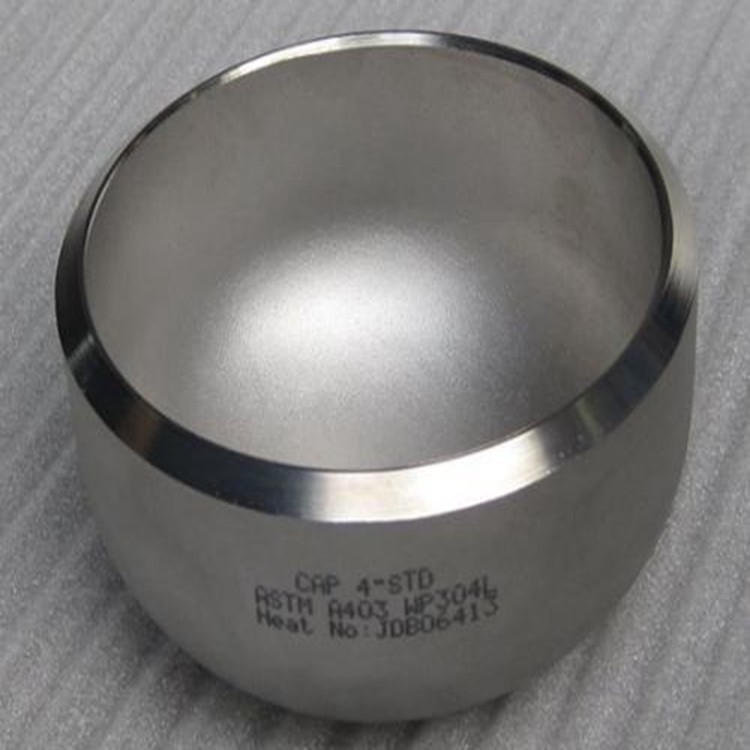

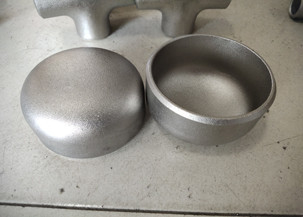

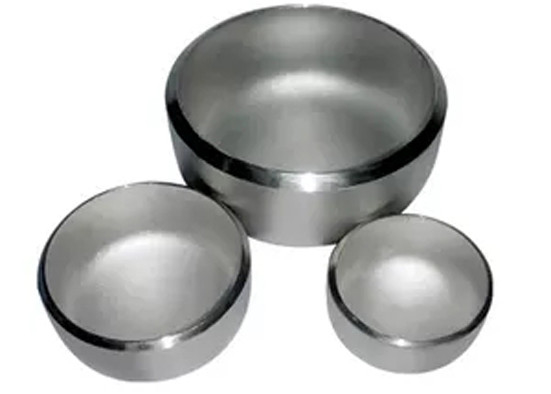

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum
SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Place Of Origin:: China Caps:: BW End Caps
Payment Terms: T/T, L/C At Sight Standard:: ASTM A403/ASME B16.11/ANSI/DIN/MSS-SP-97/ JIS B2316
Thickness:: SCH5-SCH160 Application :: Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines
High Light:

SCH160 Pipe End Cap Stainless Steel

,

A403 Pipe End Cap Stainless Steel

,

Petroleum Stainless Steel Pipe Cap

Product Description

Steel Pipe End Cap Stainless Steel Pipe Fitting/Pipe End Cap/301 321 304 304l 316 316l

Specification:

NPS O.D.
D		 LENGTH
H		 LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267 …
28 711 267 …
30 762 267 …
32 813 267 …
34 864 237 …
36 914 267 …
38 965 305 …
40 1016 305 …
42 1067 305 …
44 1118 343 …
46 1168 343 …
48 1219 343 …



Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 – 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85 –
12 13.61 16.33 43.09 –
14 16.33 20.41 – –
16 18.14 24.49 – –
18 24.49 32.66 – –
20 34.02 39.01 – –
22 42.64 56.7 – –
24 43.54 58.97 – –
26 53.98 72.12 – –
30 78.02 103.87 – –
NPS STD XS SCH 160 XXS

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum 0

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum 1

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum 2

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum 3

FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.

SCH160 Pipe End Cap Stainless Steel ASTM A403 Standard For Petroleum 4
