Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material
Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: FOB USD 1-100/PCS
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Place Of Origin:: China Material:: Carbon Steel Stainless Steel Duplex Steel Alloy Steel
Thickness/Tube: STD, DIN, SCH40, SGP, SCH10-XXS(2-160mm) Standard:: ANSI/MSS/JIS/GOST/EN/DIN
Supply Ability:: 20000 Tons Per Month Payment Terms: T/T, L/C At Sight
Highlight:

Stainless Steel Pipe End Cap 304l

,

Stainless Steel Pipe End Cap 316l

,

2 Inch SS Pipe End Caps

Product Description

Asme B16.9 304/304l/316/316l Seamless Stainless Steel Butt Weld Pipe End-Cap 2 Inch Steel Pipe End Cap

Product name : stainless steel pipe cap
Item : buttweld-Cap
Details :
Pipe Cap Nominal Diameter Pipe Cap Outside Diameter at Bevel Pipe Cap Back to End
DN NPS Series A Series B E T E1
15 1/2 21.3 18 25 4.57 25
20 3/4 26.9 25 25 3.81 25
25 1 33.7 32 38 4.57 38
32 1.1/4 42.4 38 38 4.83 38
40 1.1/2 48.3 45 38 5.08 38
50 2 60.3 57 38 5.59 44
65 2.1/2 76.1(73) 76 38 7.11 51
80 3 88.9 89 51 7.62 64
90 3.1/2 101.6 - 64 8.13 76
100 4 114.3 108 64 8.64 76
125 5 139.7 133 76 9.65 89
150 6 168.3 159 89 10.92 102
200 8 219.1 219 102 12.70 127
250 10 273.0 273 127 12.70 152
300 12 323.9 325 152 12.70 178
350 14 355.6 377 165 12.70 191
400 16 406.4 426 178 12.70 203
450 18 457.2 478 203 12.70 229
500 20 508.0 529 229 12.70 254
550 22 559 - 254 12.70 254
600 24 610 630 267 12.70 305
650 26 660 - 267 - -
700 28 711 720 267　 - -
750 30 762 - 267　 - -
800 32 813 820 267 - -
850 34 864 - 267 - -
900 36 914 920 267 - -
950 38 965 - 305 - -
1000 40 1016 1020 305 - -
1050 42 1067 - 305 - -
1100 44 1118 1120 343 - -
1150 46 1168 - 343 - -
1200 48 1220 1220 343 - -
PS: When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.

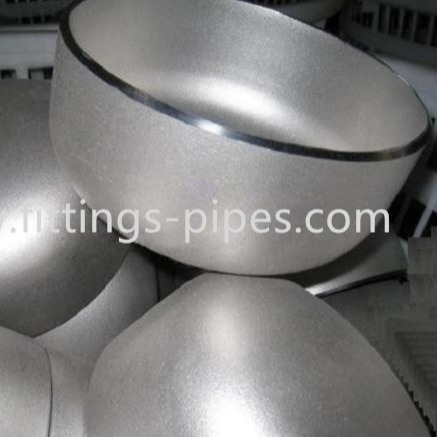

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material 0

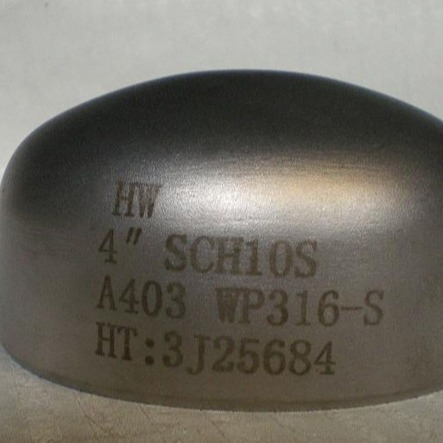

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material 1

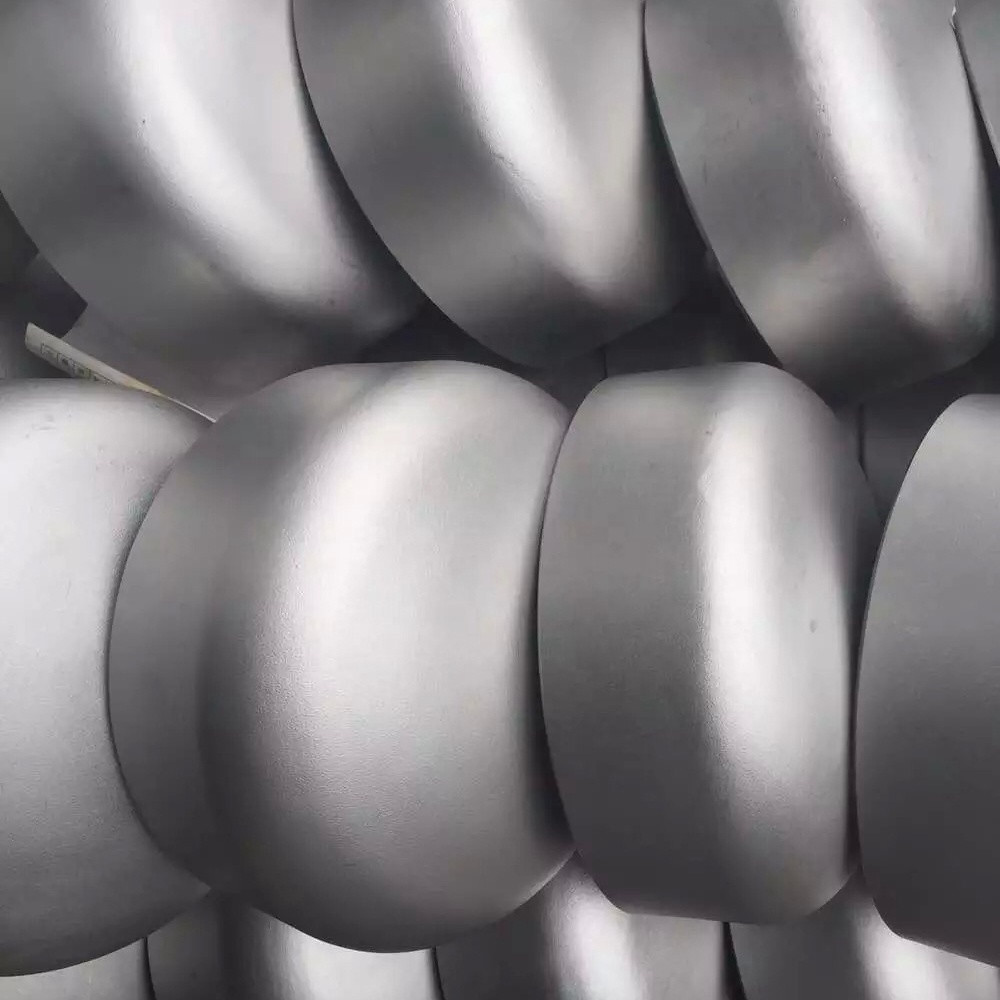

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material 2

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material 3

Stainless Steel Pipe End Cap Butt Weld 2 Inch 304l 316l Material 4
