72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness
72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness

72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: FOB USD 1-100/PCS
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Place Of Origin:: China Standard:: ASTM, AISI, GB, DIN, JIS
Wall Thickness: SCH5S To SCHXXS Supply Ability:: ACCORDING TO CUSTOMER'S REQUEST
Usage:: Petroleum, Chemical, Power, Gas, Industrial, Shipping Building, Construction Payment Terms: T/T, L/C At Sight
High Light:

SCH5S Stainless Steel Pipe End Cap

,

Asme Stainless Steel Pipe End Cap

,

72Inch Stainless Steel End Cap

Product Description

Steel Pipe End Cap Asme 1-72 Inch Asme B16.9 Pipe Fittings Cap , Stainless Steel Pipe Caps Alloysteel Pipe Caps

The convex cap have several shapes: a hemispherical cap, an elliptical cap, a dish cap, and a spherical cap. From the point of view of force, the hemispherical cap is gradually not good to manufacture, but it is gradually manufactured from the viewpoint of manufacturing difficulty.

Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T1340
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil

Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection

Thickness:

cap : 1/2″～40″ DN15～DN1016

Welded cap: 24 “～72” DN600～DN1800

Wall Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s

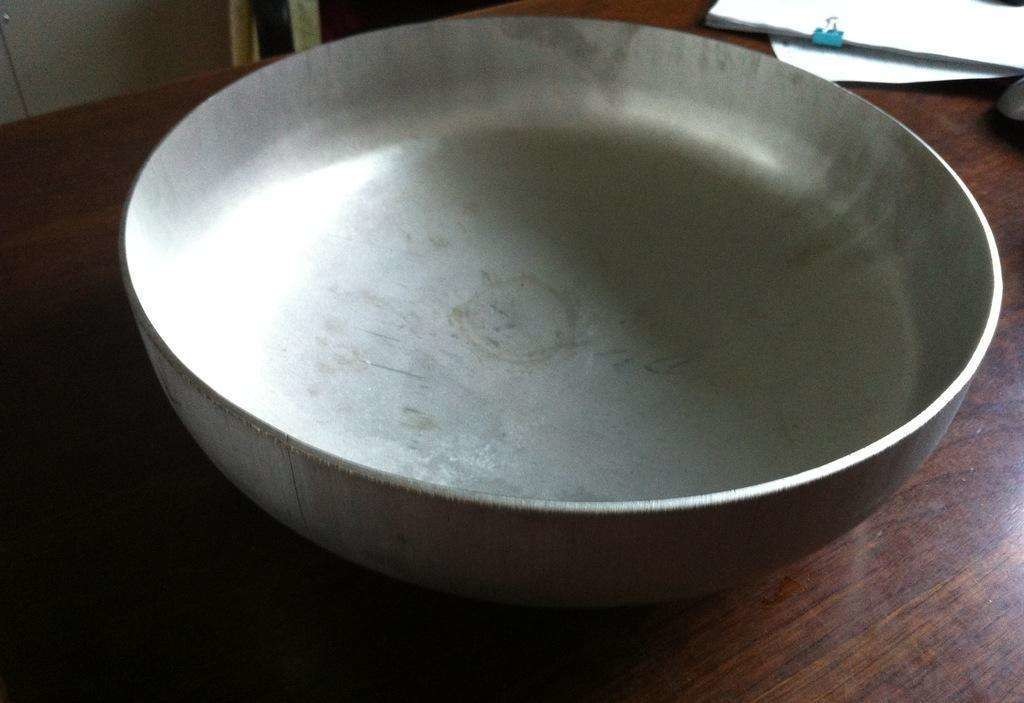

72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 0

Specification:

NPS O.D.
D		 LENGTH
H		 LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267 …
28 711 267 …
30 762 267 …
32 813 267 …
34 864 237 …
36 914 267 …
38 965 305 …
40 1016 305 …
42 1067 305 …
44 1118 343 …
46 1168 343 …
48 1219 343 …



Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 – 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85 –
12 13.61 16.33 43.09 –
14 16.33 20.41 – –
16 18.14 24.49 – –
18 24.49 32.66 – –
20 34.02 39.01 – –
22 42.64 56.7 – –
24 43.54 58.97 – –
26 53.98 72.12 – –
30 78.02 103.87 – –
NPS STD XS SCH 160 XXS

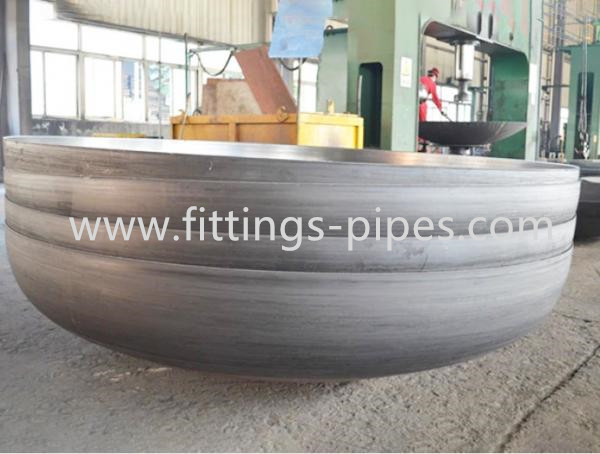

72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 1

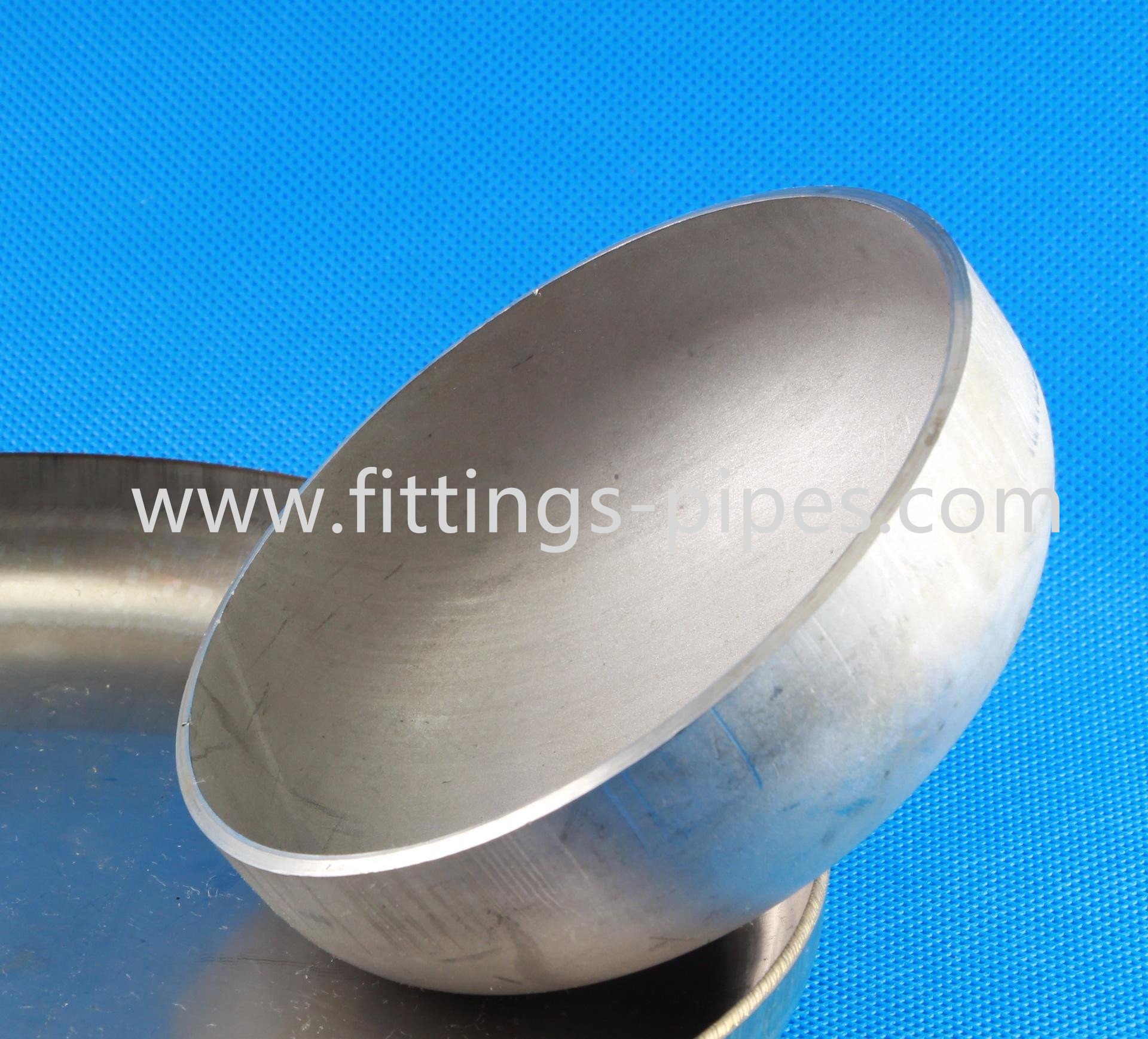

72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 2

COMPANY INFORMATION:

HONGCHENG was licensed with independent export entitlement in 2006 and now its products are mainly for oversee markets, exported far to South Korea, Russia, countries and regions in middle-east, southeast Asia, south America and west Europe. These products are widely used in the fields of petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, and well received with praise and trust by customers from home and abroad, wining the company a very good reputation.

With a new stance, we hope to tighten our relationships with customers from both abroad and domestics on the purpose of mutual benefit and development for our prosperous future. Warmly welcome customers to us for friendship and business negotiation.

1. Q: I haven't done business with you guys before,how can I trust your company?

A: We've got quite a lot authority certificates, for example, CE, ISO9001.

2. Q: What is the minimum order?

A: Yes, our company mainly deals with wholesale deals,more quantity, more discount. Minimum order quantity is 5ton

3. Q: How can I get a sample to check your quality? How long can I get the sample?

A: After price confirmed, FREE SAMPLE could be provided for your evaluation. After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.

4. Q: What payment methods your company accept?

A: We accept T/T, L/C, D/P.

5. Q: What's the shipment terms and delivery time of your company?

A: 30days

72 Inch Stainless Steel Pipe End Cap Asme B16.9 SCH5S Wall Thickness 3
