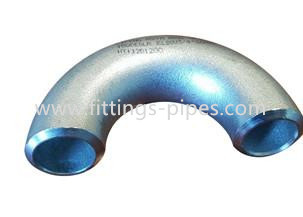

180 Degree Carbon Steel Pipe Elbow Seamless With Forging Machining Process

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity: 10PC
Price: consult
Packaging Details: wooden cases, wooden or steel pallet, plastic bag or customized
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Elbow:: 45 And 90°, LR And SR, From 1/2 To 72 Inches Price :: 10-100 Pieces US $2/ Piece;>100 Pieces US $1.5/ Piece
Process Method:: Bending, Squeezing, Pressing, Forging And Machining Wall Thickness:: SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160 And XXS
Packaging Details :: Plywood Cases, Pallets, Nylon Bags, Wooden Catron Packing:: Wooden Cases, Wooden Or Steel Pallet, Plastic Bag Or Customized
High Light:

180Degree Carbon Steel Pipe Elbow

,

Machining Carbon Steel Pipe Elbow

,

Forging 180 Degree Pipe Elbow

Product Description

Astm A234 Wp5 Alloy Steel Pipe Fittings 180 Deg Sr Elbow Seamless Carbon Steel Elbow Steel Pipe Elbow

ASTM A234 pipe fittings "Carbon & Alloy"

Product Name

ASTM A234 alloy steel pipe fitting (WP51, WP5, WP9, WP11, WP91)

Size

1/2"~20" (Seamless)

Thickness

STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc

Standard

ANSI B16.9, ASME, JIS, DIN, GOST, GB

Material

ASTM

Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6

Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc

Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5,,WP9, WP91,

ASTM A420 WPL6, WPL3

DIN

Carbon Steel:St37.0 , St35.8, St45.8

Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571

Alloy Steel:1.7335, 1.7380, 1.0488(1.0566)

JIS

Carbon Steel: PG370, PT410

Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc

Alloy Steel: PA22, PA23, P24, PA25, PL380

GB

#10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo

Ends

Bevel end, butt weld

Applications

Petrochemical industry

Pharmaceutic industry

Power plant

Water treament

Construction,...etc

Packing

Seaworthy Packing

Customers' request

plastic bags + wooden or olywood case or pallet

carton

Advantage

- Provide Samples

- Ready Stock

- Fast Delivery

- Available all sizes

- High Quality

- Competitive Price

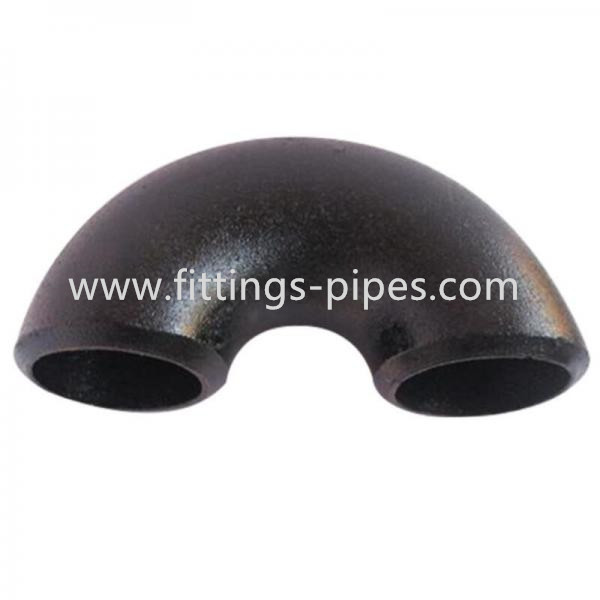

180 Degree Carbon Steel Pipe Elbow Seamless With Forging Machining Process 0

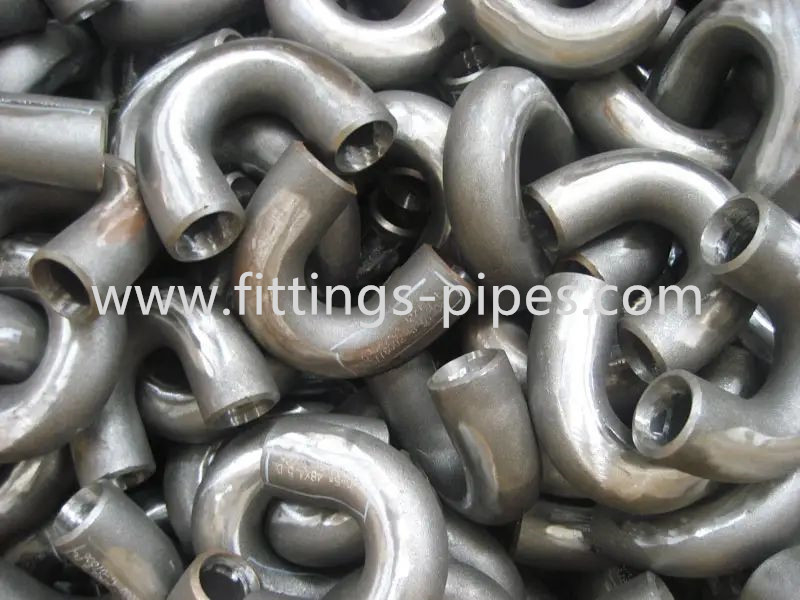

180 Degree Carbon Steel Pipe Elbow Seamless With Forging Machining Process 1

ASTM A234 is the standard specification for pipe fittings of wrought carbon and alloy steel for high temperature service.

This specification covers wroght carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ANSI B16.9, ANSI B16.11, ANSI B16.28, MSS SP-79 and MSS SP-95.

The fittings are for use at moderate and elevated temperature.

Ningbo Danyal Pipelines Company can supply all the four steel grades covered by ASTM A234: WP5,WP9,WP11, WP91

Chemical Composition:

Chemical Composition of ASTM A234

Element

WP5

WP9

WP11

WP91

C

Max 0.15

Max .15

0.05 - 0.15

0.08 - 0.12

Mn

0.30 - 0.60

0.30 - 0.60

0.30 - 0.60

0.30 - 0.60

P

Max 0.040

Max 0.030

Max 0.030

Max 0.020

S

Max 0.030

Max 0.030

Max 0.030

Max 0.010

Si

Max 0.50

0.25 - 1.00

0.50 - 1.00

0.20 - 0.50

Ni

-

-

-

Max 0.40

Cr

4.0 - 6.0

8.0 - 10.0

1.00 - 1.50

8.0 - 9.5

Mo

0.44 - 0.65

0.90 - 1.10

0.44 - 0.65

0.85 - 1.05

Cu

-

-

-

-

Cb

-

-

-

0.060 - 0.10

V

-

-

-

0.18 - 0.25

Mechanical Property:

ASTM A234/A234M

Tensile strength, min



Yield Strength, min

Elongation,%, min

Grade

Ksi

Mpa

Ksi

Mpa

Longitudinal

Transverse

WP5

60-85

415 - 585

30

205

22

14

WP9

60-85

415 - 585

30

205

22

14

WP11

60 - 85

415 - 585

40

275

22

14

WP91

85 - 110

585 - 760

60

415

20

-

180 Degree Carbon Steel Pipe Elbow Seamless With Forging Machining Process 2

180 Degree Carbon Steel Pipe Elbow Seamless With Forging Machining Process 3



FAQ

Q: Why choose hongcheng ?
A: Because we can provide competitive price and best quality, we have strict quality control and the most import is we have a large production scope.

Q: What can we expect from hongcheng?
A: professinal negotiation, reasonable price, and good after sale service

Q: Can you do customized design and size?
A: Yes, OEM IS available.

Q: Can I have some samples?
A: Of course, samples are free (1-3 pcs) or 1-2kg

Q: When can we get samples and goods?
A: If we have stock, the samples will be sent soon , make new will take about 5 days.
Goods will be shipped within 20 days after receiving the deposit.

Q: How can you ensure the quality of products?
A: We have a very strict quality control system, in our factory we have 12 quality control inspectors and each of them have 10-20 years of working experiences.
