Hebei Hongcheng Pipe Fittings Co., Ltd.

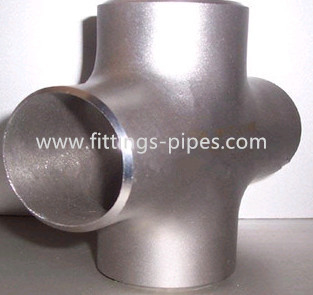

A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 2" TO 32 "
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 200,000 tons/year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: China Standard: ASTM A234. ASTM A420, ASTM A860
Size: 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded) Technics: Forged,Casting,Welding
Payment Terms: T/T, L/C At Sight Application :: Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines
Name:: Tee And Cross Equal Diameter Reducer Surface:: Sandblasted And Painted
High Light:

a234gr wp5-s pipe fittings tee

,

22inch pipe fittings tee

Product Description



A234GR.WP5-S Alloy Steel Seamless Tee 22 "S100 Product Quality AA

about us:

Hebei Hongcheng Pipe Industry Co., Ltd. was established in 1992 and is located in the Development Zone of Yanshan County, Hebei Province. We are one of the largest steel product manufacturers on the coast of the Bohai Sea. A three-dimensional comprehensive transportation network has been formed. Our geographical position is superior and the transportation is very convenient.

We are one of the biggest manufacturer for steel products with a 80, 000-square-meter workshop,covers an area more than 120,000 square meters in size ,and well over 50 million USD in assets.our main products including stainless steel pipe ,stainless steel plate,stainless steel bar,seamless steel pipe ,low temperature steel pipe ,alloy steel pipe ,boiler pipe ,carbon steel plate ,alloy steel plate ,pipe fitting,copper products,titanium products and nickel products.our company has the most advanced production equipment which guarantee the most advantageous product quality.Based on highly quality products and best service,we have develop clients all round the world ,our products are widely used in industry in USA ,Germany ,India ,Dubai,Iraq,Viet Nam,Ireland,Sinagpore,and so on .

Our goal is offer the best quality products with the lowest price and best service . We believe that our company will have a speed develop with the support from both at home and at abroad

We warmly welcome and looking forward to have a nice cooperation with company both at home and at abroad.



A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 0

Notes:
For each reduction of 0.01% below the specified C maximum, an increase of 0.06% Mn above the specified maximum will be permitted, up to a maximum of 1.35%.
The sum of Cu, Ni, Cr, and Mo shall not exceed 1.00%.
The sum of Cr and Mo shall not exceed 0.32%.
The maximum carbon equivalent (C.E.) shall be 0.50, based on heat analysis and the formula C.E.=C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
Mechanical properties of ASTM A234:

Tensile Requirements WPB WPC, WP11CL2 WP11CL1  WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85  75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585]  [520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]




Chemical Composition (%) of ASTM A234:

Grade C Mn P S Si Cr Mo Ni Cu V Nb
WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WP11 CL1 0.05-0.15 0.30-0.60 0.03 0.03 0.50-1.00 1.00-1.50 0.44-0.65 - - - -
WP11 CL2/3 0.05-0.20 0.30-0.80 0.04 0.04 0.50-1.00 1.00-1.50 0.44-0.65 - - - -

A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 1

Standard

Nominal
Pipe Size

Outside
Diameter

Inside
Diameter

Wall
Thickness T

Center
To End C

Center
To End M

Pipe
Schedule

Weight
Pounds

2-Jan 0.84 0.622 0.109 1 1 40 0.35
4-Mar 1.05 0.824 0.113 1.12 1.12 40 0.5
1 1.32 1.049 0.133 1.5 1.5 40 0.75
1 1/4 1.66 1.38 0.14 1.88 1.88 40 1.3
1 1/2 1.9 1.61 0.145 2.25 2.25 40 1.9
2 2.38 2.067 0.154 2.5 2.5 40 3.2
2 1/2 2.88 2.469 0.203 3 3 40 5.8
3 3.5 3.068 0.216 3.38 3.38 40 7.2
3 1/2 4 3.548 0.226 3.75 3.75 40 9.5
4 4.5 4.026 0.237 4.12 4.12 40 12.7
5 5.56 5.047 0.258 4.88 4.88 40 20.8
6 6.62 6.065 0.28 5.62 5.62 40 33.1
8 8.62 7.981 0.322 7 7 40 56.5
10 10.75 10.02 0.365 8.5 8.5 40 90.9
12 12.75 12 0.375 10 10 * 136
14 14 13.25 0.375 11 11 30 162
16 16 15.25 0.375 12 12 30 206
18 18 17.25 0.375 13.5 13.5 * 272
20 20 19.25 0.375 15 15 20 350
24 24 23.25 0.375 17 17 20 508
30 30 29.24 0.38 22 22 * 835
36 36 35.24 0.38 26.5 26.5 * 1,294
42 42 41.24 0.38 30 28 * 1,495
48 48 47.24 0.38 35 33 * 2,300





A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 2

A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 3

A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 4
A234gr Wp5-S Pipe Fittings Tee Alloy Seamless Steel 4 Way Joint 22" S100 Wear Resistant 5

FAQ
Q. How long can make delivery?
A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Q:Can you provide the samples?

A:Samples can be provided with samples charge and courier fee by the buyer's side.

Q:Are the products in stock?

A:Yes.Most of our products are in stock.So we can prompt delivery.

Q:Can you accept customize?

A:Yes.It can be customized as per the customers' request.

Q:What about the quality?

A:According to the standard for production.And we can also accept the third-party
