Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 72 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 200,000 tons/year |
|
Detail Information |
|||
| Place Of Origin:: | China | Qualification: | API,CE,ISO9001:2008,LRQA,PED ABS， GL， DNV， NK， PED， AD2000， GOST9941-81， CCS， ISO 9001-2008 |
|---|---|---|---|
| Standard: | ASTM A234. ASTM A420, ASTM A860 | Size: | 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded) |
| Technics: | Forged,Casting,Welding | Surface Treatment: | Surface Treatment :sandblasting,shot Blasting,pickling |
| Payment Terms: | T/T, L/C At Sight | Packaging Details: | Standard Export Seaworthy Package Or As Required Plastic Bag In Bundle,Wooden Box,etc. |

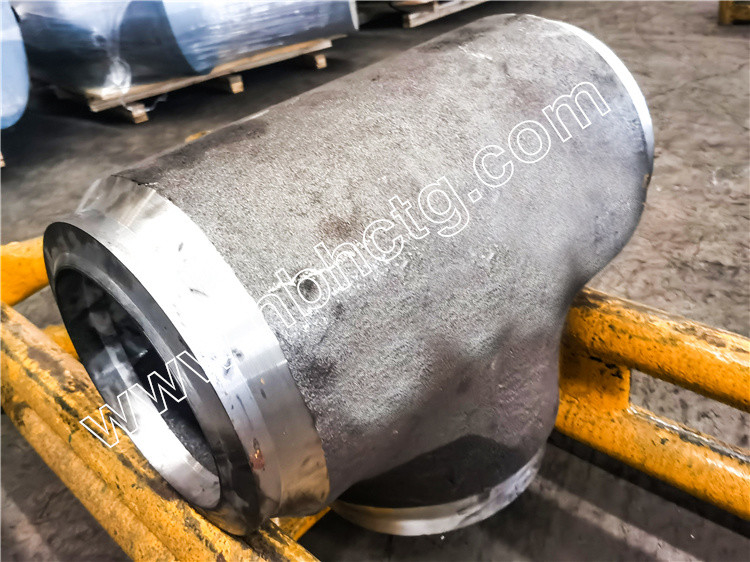

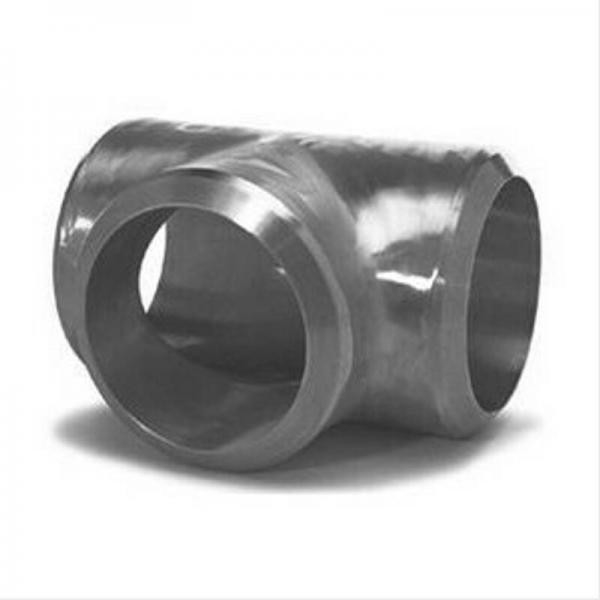

| Highlight: | P11 Straight Tee fitting,Astm B366 Alloy Steel Fittings,Astm B366 Straight Tee fitting |
||
Product Description
The material of the alloy tee is alloy steel, which is an iron-carbon alloy formed by adding an appropriate amount of one or more alloying elements on the basis of ordinary carbon steel. According to the different elements added and appropriate processing technology, special properties such as high strength, high toughness, wear resistance, corrosion resistance, low temperature resistance, high temperature resistance, and non-magnetic properties can be obtained.
The alloy tee has a beautiful appearance: the inner and outer walls of the product are smooth, the water flow resistance is small, the color is soft and the graphics are beautiful. Depending on the use environment, the surface treatment can be electrostatic spraying, hot-dip galvanizing, dipping paint, Dacromet treatment, etc. It is widely used in the construction and maintenance of petrochemical, petroleum and natural gas, liquefied petroleum gas, chemical fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction and other industries.
Specification
| BUTT-WELDING PIPE FITTINGS | |
|
MATERIAL |
Carbon Steel: |
| ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn | |
| DIN St37, St45.8, St52.4, St.35.8, St.35.8. | |
| Stainless Steel: | |
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti | |
| 00Cr17Ni14Mo2 304 304L 316 316L | |
| Alloy Steel: | |
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, | |
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 | |
| STANDARD |
ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97 |
| MODEL | 1.Tee (Straight and Reducing) 2.180 DEG Return |
| 3.Elbow (45/90/180 DEG) 4.Cap | |
| 5. Reducer (Concentric and Eccentric) | |
| TYPE | Seam Or Seamless |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize |
| WALL THICKNESS | SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60 |
| SCH80, SCH100, SCH120, SCH140, SCH160, XXS, 2MM | |
| SIZE | 1/2"-48"(Dn15-Dn1200) |
| CONNECTION | Welding |
| SHAPE | Equal, Reducing |
| CERTIFICATE | ISO9001 API TUV |
| APPLICATION | Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc |
| Customers’ drawings or designs are available. | |
| PACKAGE | 1. 1/2" - 2" in Cartons. |
| 2. Above 2" in Fumigation Wooden Cases. | |
| 3. Big size is workable by Pallets. | |
| DELIVERY DETAILS | Normal delivery time is from 15 to 45 days according to the quantities and specifications of each order |
