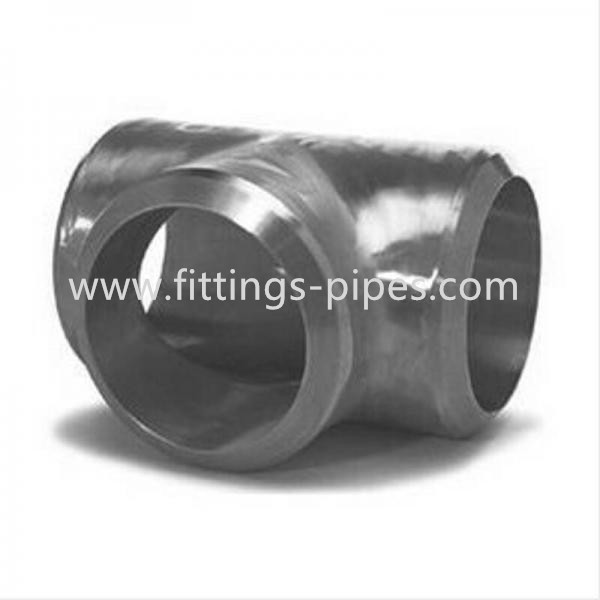

SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee
SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee
SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee

SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: consult
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
Contact Now
  • Detail Information
  • Product Description

Detail Information
Certification :: LR,BV,SGS,BIS,DNV,CRN,ABS,TUV Material:: Carbon Stainless Alloy Steel
Packaging Details :: WOODCASE Or PLATE Thickness: Sch30 Sch60 Sch80
Application:: Petrochemical, Electric Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. Surface Treatment:: Sandblasting Or Painting
Usage:: Chemical Manufacturing Wear-resistant
High Light:

SA234GR Alloy Steel Fittings

,

SA234GR seamless pipe tee

,

WP91-S Seamless Pipe Tee

Product Description

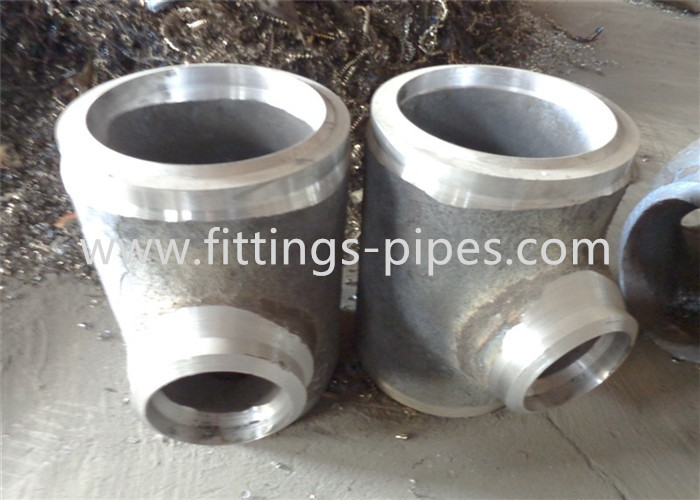

SA234GR.WP91-S 10 "* 8" * S140 alloy seamless tee (two-stage chamfering) two-stage chamfering

The production method of alloy tee:

The main method of making the alloy tee is to make the alloy tee form a fixed shape by hot pushing. The equipment required for the production of this hot pushing forming work includes an elbow pushing machine and a heating device. The shape of the blank of the alloy tee is a fixed shape. In this process, the blank is first moved forward passively by the elbow pusher. During the movement, the heating device heats it, and the left back can be Fixed shape. The elbow pusher can make metal materials into various shapes. During this process, its shape has changed, but its volume has not changed. The fabricated alloy tee, each The thickness of the parts is very reasonable and evenly distributed, which makes it more convenient for us to use the alloy tee, and all aspects will be more accurate.



AP Finish Saltation Finish

Quick Detail:

Material:Carbon Steel,Aolly Steel,Seamless Steel

Technics:Forged,forging butt welding

Type:Tee & Cross

Connection:Welding

Shape:Reducing

Head Code:Round

size:1/2-18

Standard:ASME B16.9 B16.49 B16.25

Packing:wooden cases or as cusdtomers' demands

OD:40mm-500mm

surfacetreatment:painting galvaized or as customers' demands

WT:Sch10-Sch190 xxs

Description:

Product Item No.: 005fittings-Cosco Steel

Size: NPS 1/2"-120"(DN15-3000)

Varieties: SCH5S/10S, SCH20/40/8 Pipe Fitting Stainless steel SMLS reducer tee 0/160, STD/XS/XXS, SGP



SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee 0

Norminal Pipe Size Outside Diameter at Bevel Center to End
DN D1 D2 C M
  Series A Series B Series A Series B
20×20×15 26.9 25 21.3 18 29 29
25×25×20 33.7 32 26.9 25 38 38
25×25×15 33.7 32 21.3 18 38 38
32×32×25 42.4 38 33.7 32 48 48
32×32×20 42.4 38 26.9 25 48 48
32×32×15 42.4 38 21.3 18 48 48
40×40×32 48.3 45 42.4 38 57 57
40×40×25 48.3 45 33.7 32 57 57
40×40×20 48.3 45 26.9 25 57 57
40×40×15 48.3 45 21.3 18 57 57
50×50×40 60.3 57 48.3 45 64 60
50×50×32 60.3 57 42.4 38 64 57
50×50×25 60.3 57 33.7 32 64 51
50×50×20 60.3 57 26.9 25 64 44
65×65×50 76.1(73) 76 60.3 57 76 70
65×65×40 76.1(73) 76 48.3 45 76 67
65×65×32 76.1(73) 76 42.4 38 76 64
65×65×25 76.1(73) 76 33.7 32 76 57
80×80×65 88.9 89 76.1(73) 76 86 83
80×80×50 88.9 89 60.3 57 86 76
80×80×40 88.9 89 48.3 45 86 73
80×80×32 88.9 89 42.4 38 86 70
90×90×80 101.6 -- 88.9 -- 95 92
90×90×65 101.6 -- 76.1(73) -- 95 89
90×90×50 101.6 -- 60.3 -- 95 83
90×90×40 101.6 -- 48.3 -- 95 79
100×100×90 114.3 -- 101.6 -- 105 102
100×100×80 114.3 108 88.9 89 105 98
100×100×65 114.3 108 76.1(73) 76 105 95
100×100×50 114.3 108 60.3 57 105 89
100×100×40 114.3 108 48.3 45 105 86
125×125×100 139.7 133 114.3 108 124 117
125×125×90 139.7 -- 101.6 -- 124 114
125×125×80 139.7 133 88.9 89 124 111
125×125×65 139.7 133 76.1(73) 76 124 108
125×125×50 139.7 133 60.3 57 124 105
150×150×125 168.3 159 139.7 133 143 137
150×150×100 168.3 159 114.3 108 143 130
150×150×90 168.3 -- 101.6 -- 143 127
150×150×80 168.3 159 88.9 89 143 124
150×150×65 168.3 159 76.1(73) 76 143 121
200×200×150 219.1 219 168.3 159 178 168
200×200×125 219.1 219 139.7 133 178 162
200×200×100 219.1 219 114.3 108 178 156
200×200×90 219.1 -- 101.6 -- 178 152
250×250×200 273 273 219.1 219 216 203
250×250×150 273 273 168.3 159 216 194
250×250×125 273 273 139.1 133 216 191
250×250×100 273 273 114.3 108 216 184
300×300×250 323.9 325 273 273 254 241
300×300×200 323.9 325 219.1 219 254 229
300×300×150 323.9 325 168.3 159 254 219
300×300×125 323.9 325 139.7 133 254 216
350×350×300 355.6 377 323 325 279 270
350×350×250 355.6 377 273 273 279 257
350×350×200 355.6 377 219.1 219 279 248
350×350×150 255.6 377 168.3 159 279 238
400×400×350 406.4 426 355.6 377 305 305
400×400×300 406.4 426 323.9 325 305 295
400×400×250 406.4 426 273 273 305 283
400×400×200 406.4 426 219.1 219 305 273
400×400×150 406.4 426 168.3 159 305 264
450×450×400 457.2 478 406.4 426 343 330
450×450×350 457.2 478 355.6 377 343 330
450×450×300 457.2 478 323.9 325 343 321
450×450×250 457.2 478 273 273 343 308
450×450×200 457.2 478 219.1 219 343 298
500×500×450 508 529 457.2 478 381 368
500×500×400 508 529 406.4 426 381 356
500×500×350 508 529 355.6 377 381 356
500×500×300 508 529 323.9 325 381 346
500×500×250 508 529 273 273 381 333
500×500×200 508 529 219.1 219 381 324



SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee 1

Norminal Pipe Size

DN

 Outside Diameter at Bevel Genter to End
  D1 D2 C M
  SeriesA Series B
15 21.3 18 25
20 26.9 25 29
25 33.7 32 38
32 42.4 38 48
40 48.3 45 57
50 60.3 57 64
65 76.1 76 76
80 88.9 89 86
90 101.6 102 95
100 114.3 108 105
125 139.7 133 124
150 168.3 159 143
200 219.1 219 178
250 273.0 273 216
300 323.9 325 254
350 355.6 377 279
400 406.4 426 305
450 457.0 478 343
500 508.0 529 381
550 559.0 - 419
660 610.0 630 432
650 660.0 - 495
700 711.0 720 521
750 762.0 - 559
800 813.0 820 597

SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee 2

Mechanical Property:

ASTM A234/A234M

Tensile strength, min



Yield Strength, min

Elongation,%, min

Grade

Ksi

Mpa

Ksi

Mpa

Longitudinal

Transverse

WP5

60-85

415 - 585

30

205

22

14

WP9

60-85

415 - 585

30

205

22

14

WP11

60 - 85

415 - 585

40

275

22

14

WP91

85 - 110

585 - 760

60

415

20

-









SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee 3







Tee Type

Equal tee, reducing tee,lateral tee, BW/butt weld tee, TH/threaded tee, SW/socket weld tee, seamless tee

Standard

ASTM B16.9, ASTM B16.11, ASTM B16.5;

JIS B2311,JIS B2312,JIS B2313,JIS B2316;

MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79;

ISO 3419,ISO 5251,DIN 2615

SY/T 0510, SH 3408, SH3410

Size

1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding);16''~72''(Welded)

Wall thickness

Sch5~Sch160XXS

Manufacturing process

Push, Press, Forge, Cast, etc.

Material







Carbon steel

Stainless steel

Alloy steel

Duplex steel

Nickel alloy steel

Carbon steel tee, stainless steel tee, alloy steel tee

ASTM A234 WPB,

ASTM A420 WPL6, WPL3;

ASTM A105 WPB;

ASTM A106;

ASTM A350 LF2,

DIN St37, St45.8, St52.4,St.35.8,St.35.8/I

ASTM A333 GR.6,

ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,

API 5L GRB, X60, X65, X42,X52,

ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321

ASTM A182 F 304, 304L,316, 316L,904L

ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9

A420 WPL8, A420 WPL9

ASTM A335 P5, P9, P11, P12, P22, P91

ASTM A213

ASTM A182 F5,F11,F22,F91

ASTM A182 F51/SAF 2205/S31803,F53/SAF 2507/S32750,F60/UNS S32205,

Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,Alloy 600/Inconel 600/UNS,

6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/NS336,Alloy 800/Incoloy 800/UNS S8800,

Package

Wooden cases, pallets, nylon bags or according to the customers' requirements

MOQ

1pcs

Delivery time

10-100 days depending on quantity

Payment terms

T/T

Shipment

FOB Tianjin/Shanghai, CFR, CIF, etc

Application

Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc

Remarks

Other materials and drawings are available.





SA234GR WP91-S 10 "* 8" * S140 Alloy Steel Fittings Seamless Pipe Tee 4

FAQ

Q. How long can make delivery?

A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Q:Can you provide the samples?

A:Samples can be provided with samples charge and courier fee by the buyer's side.

Q:Are the products in stock?

A:Yes.Most of our products are in stock.So we can prompt delivery.

Q:Can you accept customize?

A:Yes.It can be customized as per the customers' request.

Q:What about the quality?

A:According to the standard for production.And we can also accept the third-party inspection

and quarantine.

About the After-Sale Service

a.We are glad that customers can give us some suggestions for price and products.

b.If you have any questions,pls feel free to contact us by email or phone.
