Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 2" TO 32 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 200,000 tons/year |
|
Detail Information |
|||
| Place Of Origin:: | China | Standard: | ASTM A234. ASTM A420, ASTM A860 |
|---|---|---|---|
| Size: | 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded) | Technics: | Forged,Casting,Welding |
| Payment Terms: | T/T, L/C At Sight | Application :: | Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines |

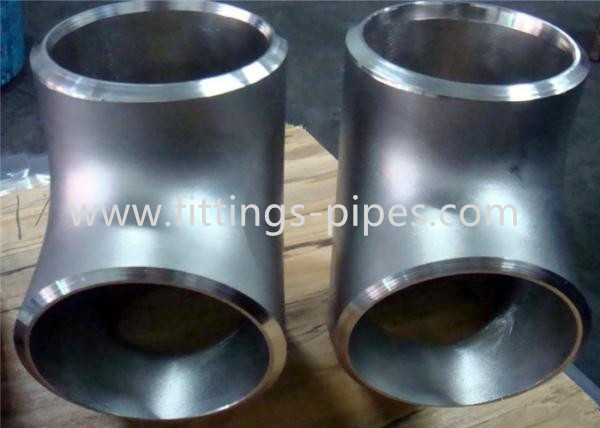

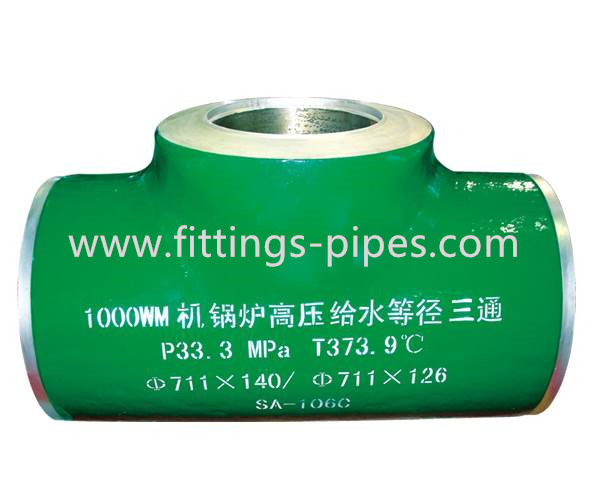

| Name:: | Tee And Cross Equal Diameter Reducer | Surface:: | Sandblasted And Painted |
| Highlight: | Wear Resistant Pipe Tee Fitting,A234GR Pipe Tee Fitting,Steel Pipe Tee Wear Resistant |
||
Product Description
Notes:
For each reduction of 0.01% below the specified C maximum, an increase of 0.06% Mn above the specified maximum will be permitted, up to a maximum of 1.35%.
The sum of Cu, Ni, Cr, and Mo shall not exceed 1.00%.
The sum of Cr and Mo shall not exceed 0.32%.
The maximum carbon equivalent (C.E.) shall be 0.50, based on heat analysis and the formula C.E.=C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15.
Mechanical properties of ASTM A234:
| Tensile Requirements | WPB | WPC, WP11CL2 | WP11CL1 | WP11CL3 |
| Tensile Strength, min, ksi[MPa] | 60-85 | 70-95 | 60-85 | 75-100 |
| (0.2% offset or 0.5% extension-under-load) | [415-585] | [485-655] | [415-585] | [520-690] |
| Yield Strength, min, ksi[MPa] | 32 | 40 | 30 | 45 |
| [240] | [275] | [205] | [310] |
Chemical Composition (%) of ASTM A234:
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WPC | 0.35 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
| WP11 CL1 | 0.05-0.15 | 0.30-0.60 | 0.03 | 0.03 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
| WP11 CL2/3 | 0.05-0.20 | 0.30-0.80 | 0.04 | 0.04 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 | - | - | - | - |
Standard
Nominal | Outside | Inside | Wall | Center | Center | Pipe | Weight |
| 2-Jan | 0.84 | 0.622 | 0.109 | 1 | 1 | 40 | 0.35 |
| 4-Mar | 1.05 | 0.824 | 0.113 | 1.12 | 1.12 | 40 | 0.5 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 1.5 | 40 | 0.75 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 1.88 | 40 | 1.3 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 2.25 | 40 | 1.9 |
| 2 | 2.38 | 2.067 | 0.154 | 2.5 | 2.5 | 40 | 3.2 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 3 | 3 | 40 | 5.8 |
| 3 | 3.5 | 3.068 | 0.216 | 3.38 | 3.38 | 40 | 7.2 |
| 3 1/2 | 4 | 3.548 | 0.226 | 3.75 | 3.75 | 40 | 9.5 |
| 4 | 4.5 | 4.026 | 0.237 | 4.12 | 4.12 | 40 | 12.7 |
| 5 | 5.56 | 5.047 | 0.258 | 4.88 | 4.88 | 40 | 20.8 |
| 6 | 6.62 | 6.065 | 0.28 | 5.62 | 5.62 | 40 | 33.1 |
| 8 | 8.62 | 7.981 | 0.322 | 7 | 7 | 40 | 56.5 |
| 10 | 10.75 | 10.02 | 0.365 | 8.5 | 8.5 | 40 | 90.9 |
| 12 | 12.75 | 12 | 0.375 | 10 | 10 | * | 136 |
| 14 | 14 | 13.25 | 0.375 | 11 | 11 | 30 | 162 |
| 16 | 16 | 15.25 | 0.375 | 12 | 12 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 13.5 | 13.5 | * | 272 |
| 20 | 20 | 19.25 | 0.375 | 15 | 15 | 20 | 350 |
| 24 | 24 | 23.25 | 0.375 | 17 | 17 | 20 | 508 |
| 30 | 30 | 29.24 | 0.38 | 22 | 22 | * | 835 |
| 36 | 36 | 35.24 | 0.38 | 26.5 | 26.5 | * | 1,294 |
| 42 | 42 | 41.24 | 0.38 | 30 | 28 | * | 1,495 |
| 48 | 48 | 47.24 | 0.38 | 35 | 33 | * | 2,300 |
FAQ
Q. How long can make delivery?
A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
Q:Can you provide the samples?
A:Samples can be provided with samples charge and courier fee by the buyer's side.
Q:Are the products in stock?
A:Yes.Most of our products are in stock.So we can prompt delivery.
Q:Can you accept customize?
A:Yes.It can be customized as per the customers' request.
Q:What about the quality?
A:According to the standard for production.And we can also accept the third-party
