Hebei Hongcheng Pipe Fittings Co., Ltd.

A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 72 "
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 200,000 tons/year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: China Standard: ASTM A234. ASTM A420, ASTM A860
Size: 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded) Technics: Forged,Casting,Welding
Payment Terms: T/T, L/C At Sight Application :: Gas And Oil Pipes, Petroleum Gas, Joining Pipe Lines
High Light:

a420 wp91 alloy steel tee

,

38" alloy steel tee

Product Description

A420 Wp91 Wpl6 Wpl3 Forged Cast Alloy Steel Fitting Tee 1/2 "- 38" Xxs

Product Description:

1. Material:Alloy Steel Tee

2. Size range: FROM 1/2" TO 72"

3. Pressure: Sch5--Sch160,XXS

4. STANDARDS ANSI, ISO, JIS, DIN, BS, GB, SH, HG, QOST, ETC.

5. CE and certification: ISO9001:2000, API, BV, SGS, LOIYD

6. Applications range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc.”

STANDARD

ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316

ASTM A403 MSS SP-43, SP-83, SP-97

MODEL 1.Tee (Straight and Reducing)
2.180 DEG Return
3.Elbow (45/90/180 DEG)
4.Cap
5. Reducer (Concentric and Eccentric)
TYPE Seam Or Seamless
ELBOW DEGREE 45 degree, 90 degree, 180 degree
SURFACE Black Paint, Anti Rust Oil, Hot-Dipped Galvanize
WALL THICKNESS SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60
SCH80, SCH100, SCH120, SCH140, SCH160, XXS, 2MM
SIZE 1/2"-48"(Dn15-Dn1200)
CONNECTION Welding
SHAPE Equal, Reducing
CERTIFICATE ISO9001 API TUV
APPLICATION Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc

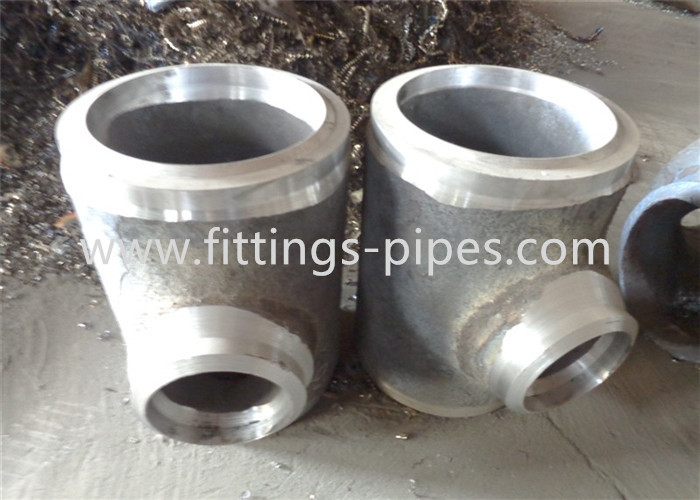

A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 0

Alloy elbows are mainly used to connect pipe fittings in pipe installation and to connect elbows. Connect two pipes of the same nominal diameter so that the pipe bends 90 ° or other angles. Alloy elbow is the general name of all kinds of elbows, with a variety of materials, such as carbon steel, manganese steel, nickel steel, etc. Alloy elbow is widely used. Ordinary bronze alloy elbows are more common in ordinary water pipes, but with the improvement of living standards, many water pipes use stainless steel elbows. Alloy elbows made of manganese steel are usually used for concrete pipes, mud pipes and other pipes with serious wear and consumption. This is because manganese steel has good resistance to impact, extrusion and material wear. Nickel steel alloy elbows are usually used in pipelines with high concentration of oxidizing acids (nitric acid, sulfuric acid) and other normal temperature pipelines. High manganese steel alloy elbows are used in pipelines with severe fluid flow and high impact force. However, unless the concentration of hydrochloric acid is very low, the pipeline of reducing acid (hydrochloric acid, dilute sulfuric acid, etc.) will be seriously corroded. Martensitic alloy elbow has high high temperature strength, oxidation resistance and water resistance below 650 ℃, and has vapor corrosion ability, but poor weldability. Therefore, it is commonly used in high-temperature steam transmission pipeline and water gas pipeline.



Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

ASTM A335 P91 Chemical Compositions(%)

Compositions Data
UNS Designa-tion K91560
Carbon(max.) 0.08-0.12
Manganese 0.30-0.60
Phosphorus(max.) 0.025
Silicon(max.) 0.50
Chromium 4.00-6.00
Molybdenum 0.45-0.65
Other Elements
Mechanical properties for ASTM A335 P91
Properties Data
Tensile strength, min, (MPa) 415 Mpa
Yield strength, min, (MPa) 205 Mpa
Elongation, min, (%), L/T 30/20

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

  • A / N+T

  • N+T / Q+T

  • N+T

Mechanical Tests Specified

  • Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test

  • For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.

  • For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

Notes for Bend Test:

  • For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.

  • Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.

  • The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.

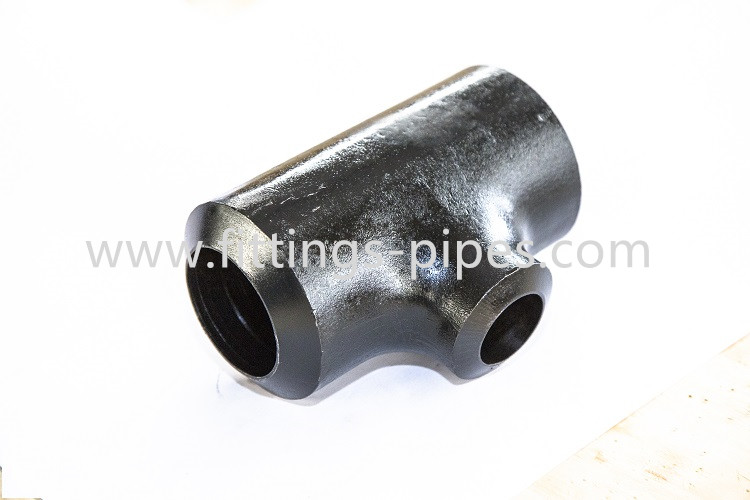

A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 1


A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 2

A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 3



A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 4

A420 Wp91 Wpl6 Wpl3 Alloy Steel Tee Forged Cast 1/2 "- 38" Xxs 5



FAQ

Q. How long can make delivery?

A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.



Q:Can you provide the samples?



A:Samples can be provided with samples charge and courier fee by the buyer's side.



Q:Are the products in stock?



A:Yes.Most of our products are in stock.So we can prompt delivery.



Q:Can you accept customize?



A:Yes.It can be customized as per the customers' request.



Q:What about the quality?



A:According to the standard for production.And we can also accept the third-party
