Detail Information
Product Description

Detail Information
Standards:	API, ASTM, Bs, DIN, GB, JIS, API 5CT, API 5L, ASTM A106-2006, ASTM A53-2007, ASTM A335-2006, ASTM A213M-2001, BS 1387, BS EN 39, DIN 2391, DIN 17175, GB/T 3091-2001, GB/T8162, Gb/t8163, JIS G3444-2006, JIS G3441	Graded:	A335 P11, A335 P5, A335 P91, A335 P9, A335 P1, A335 P12, A335 P92, A335 P23, 15crmo, 10CRMO910, Cr5Mo, 12CrMo, Cr9Mo, 12cr1movg, 15CrMoG, A53-A369, Cr-Mo Alloy
Export Tosia,Spain,South Africa, Vier Nam,Peru,Dubai,etc.:	Singapore,Indonesia,Ukraine,Brazil,Korea,Thailand,USA, UK,Canada,Saudi Arabia,Ireland,Oman,Rus	Material:	Q195/Q215/Q235/Q345, ASTM A335 P91 Seamless Alloy Pipe, Carbon Steel &Alloy Steel, X42, Cast Iron
Pressure:	Sch30 Sch40 STD Sch60 Sch80 XS Sch100 Sch160	Certification:	ABS, BV, DNV, GL, LR, SGS, IEI
Outside Diameter:	1/2" TO 48"	Packaging Details:	Ply-wooden Case /Iron Case/ Bundle With Plastic Cap
Highlight:	1/2 inch alloy steel seamless tubes , corrosion resistance alloy steel seamless tubes , 34 inch alloy steel seamless pipe

Product Description

Atms A312 1/2"-34" Sch-Xxs Alloy Seamless Steel Pipe Corrosion Resistance

Alloy pipe is a kind of seamless steel pipe. Alloy pipe is divided into structural seamless pipe and high-pressure heat-resistant alloy pipe. It is mainly different from the production standard and industry of alloy pipe. Annealing and tempering of alloy pipe changes its mechanical properties. Meet the required processing conditions. Its performance is higher than that of ordinary seamless steel pipe, its utilization value is higher, the chemical composition of alloy pipe contains more Cr, and its performance of high temperature resistance, low temperature resistance and corrosion resistance. Ordinary carbon seamless pipe does not contain alloy components or there are few alloy components. Alloy pipe is widely used in petroleum, aerospace, chemical industry, electric power, boiler and other industries because the mechanical properties of alloy pipe change and are easy to adjust.

1.Product details:

Item	Seamless pipe,seamless tube,seamless steel pipe, seamless steel tube,seamless tubing
Standard	ASTM,JIS,DIN,EN,GB,KS,API 5L,SUS,AISI
Material	Stainless:310S,309S,310,309,316,316L,317,317L,321,321H,347,347H,304,304L,301,201,202,904L,Duplex,etc
	Carbon steel:20#,20G,STPT410,STF410,A106 GR.B,A178C,A178D,P265GH,A53 GR.B,A135 GR.B,P265TR1, P265TR2,STPT480,A106 GR.C,A210C,Q195,Q235,Q345,ST35.8,ST45.8,ST52, etc
	Alloy:16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO, Cr5Mo,10CrMo910,12CrMo,13CrMo44,30CrMo,A333 GR.1,GR.3,GR.6,GR.7,etc
	API:Gr.B,X42,X46,X52,X60,X65,X70,X80,X100,etc
	AISI:1010,1015,1020,1022,1025,1026,1030,1033,1035,1039,1040,1045,1050,1053,1060,3140,4130,4140,4142, 4118,4120,5115,5140,5150,etc
Size	OD:6-2500mm
	WT:SCH5-SCH160,XS,STD,XXS ,1-200mm
	Length:5.8m,6m,11.8m,12m,or as required
Surface	Black painted,PE coated,Galvanized,Varnished,HDPE,3PE,etc
Package	Standard export package,suit for all kinds of transport, or as required
Export to	Singapore,Poland,India,Dubai,Korea,Thailand,Ukraine,USA,UK,Canada,Indonesia,Iraq,Mexico,Holland,South Africa, Peru,Spain,Pakistan,Viet Nam,Saudi Arabia,Ireland,Jordan,Oman,Kuwait,Italy,Nigeria,Australia,etc

2.Chemical details:

Item	C	Si	Mn	P	S	Cr	Mo
P1	0.10-0.20	0.10-0.50	0.3-0.80	≤0.025	≤0.025	/	0.44-0.65
P2	0.10-0.20	0.10-0.30	0.3-0.61	≤0.025	≤0.025	0.5-0.81	0.44-0.65
P5	≤0.15	≤0.50	0.3-0.60	≤0.025	≤0.025	4.0-6.0	0.44-0.65
P9	≤0.15	≤0.50	0.3-0.60	≤0.030	≤0.030	8.0-10.0	0.90-1.10
P11	0.05-0.15	0.5-1.0	0.3-0.60	≤0.025	≤0.025	1.0-1.50	0.44-0.65
P22	0.05-0.15	≤0.50	0.3-0.60	≤0.025	≤0.025	1.9-2.60	0.87-1.13
P21	0.05-0.15	≤0.50	0.3-0.60	≤0.025	≤0.025	2.65-3.35	0.80-1.06
P91	0.08-0.12	0.20-0.50	0.30-0.60	≤0.020	≤0.010	8.0-9.5	0.85-1.05
P15	0.05-0.15	1.15-1.65	0.30-0.60	≤0.025	≤0.025	/	0.44-0.65

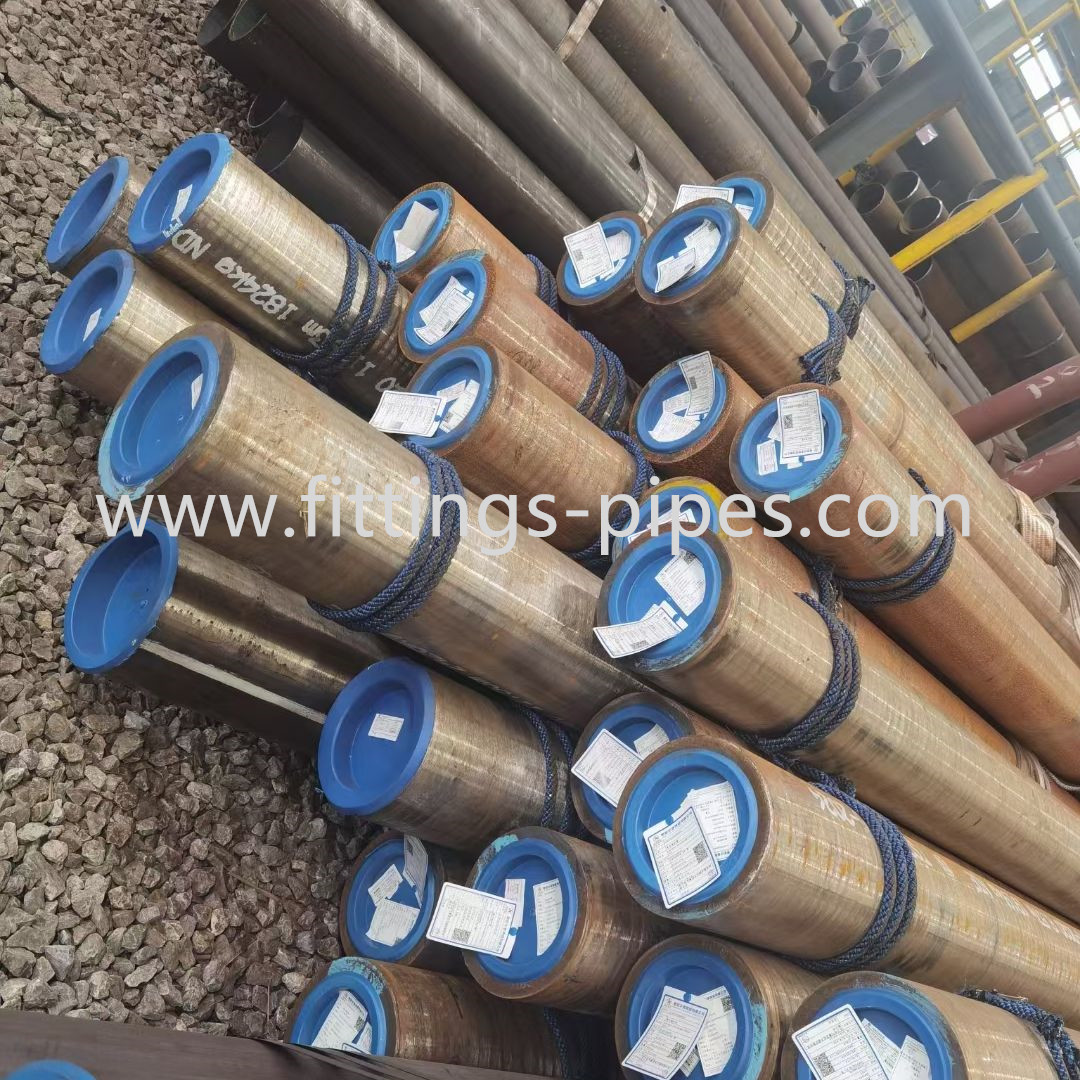

Atms A312 1/2"-34" Alloy Steel Seamless Tubes Sch-Xxs Corrosion Resistance 1

Mechanical Property:

Standard	Grade	Tensile Strength(MPa)	Yield Strength(MPa)		Elongation(%)
Standard	Grade	Tensile Strength(MPa)	≤16	>16-30mm	Elongation(%)
GB/T8162-1999	10	335	205	195	24
	20	390	245	235	20
	35	510	305	295	17
	45	590	335	325	14
	16Mn	490	325	315	21
GB/T8163	10	335~475	≥205		≥24
	20	410~550	≥245		≥20
	Q345	490~665	≥325		≥21
GB/T3087	10	333-475	≥196		≥24
GB/T3087	20	392-588	≥245/226		≥20
GB/T5310	20G	410-550	≥245		≥24
	12CrMoG	410-560	≥205		≥21
	15CrMoG	450-640	≥235		≥21
	12Cr1MoVG	470-640	≥255		≥21
GB/T9948	10	330-490	≥205		≥24
	20	410-550	≥245		≥21
	12CrMoG	410-560	≥205		≥21
	15CrMoG	410-640	≥235		≥21
GB/T6479	10	330-490	≥205		≥24
	20	410-500	≥245		≥21
	12CrMo	410-560	≥205		≥21
	15CrMo	440-640	≥235		≥21

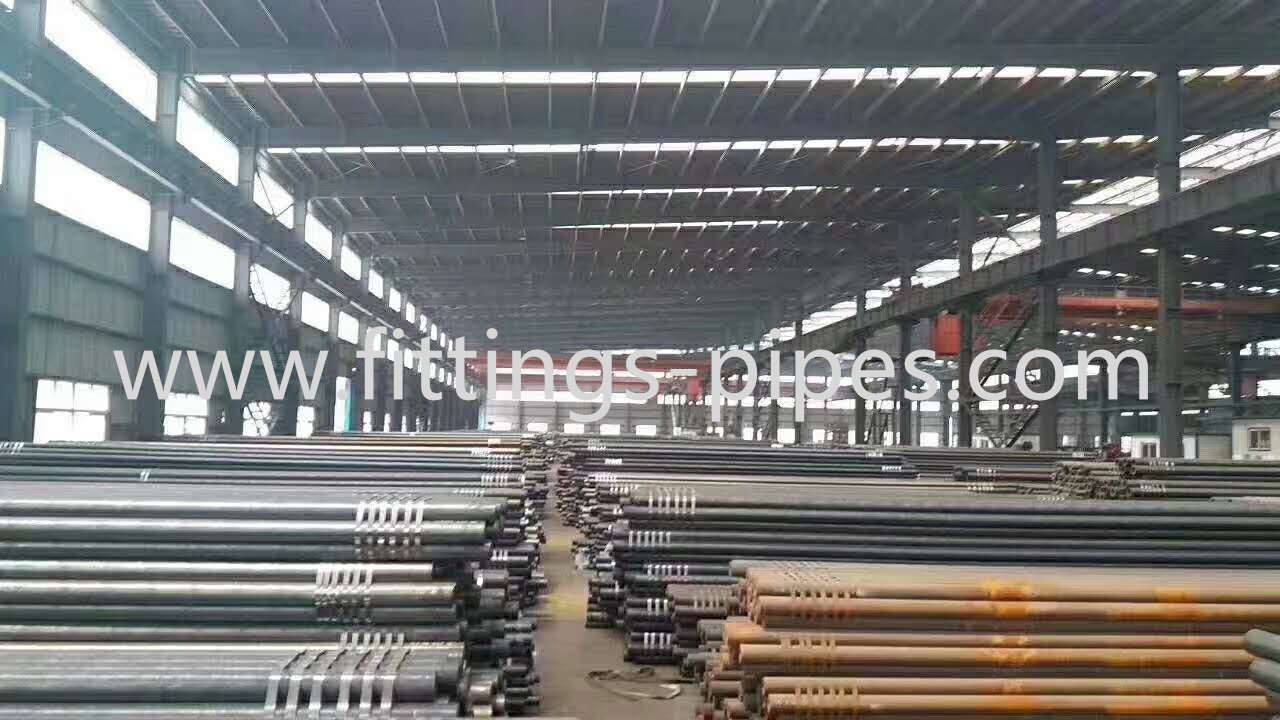

Atms A312 1/2"-34" Alloy Steel Seamless Tubes Sch-Xxs Corrosion Resistance 2

FAQ

1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

4. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.

5.Q: After sales service.

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HongCheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	3" TO 14"
Payment & Shipping Terms:
Minimum Order Quantity:	1Ton
Price:	Negotiable
Packaging Details:	Standard export seaworthy package,or as required
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Atms A312 1/2"-34" Alloy Steel Seamless Tubes Sch-Xxs Corrosion Resistance

1/2 inch alloy steel seamless tubes

corrosion resistance alloy steel seamless tubes

34 inch alloy steel seamless pipe

Atms A312 1/2"-34" Sch-Xxs Alloy Seamless Steel Pipe Corrosion Resistance
