Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HongCheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 6" TO 18" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 0.5Ton |
| Price: | Negotiable |
| Packaging Details: | Standard export seaworthy package,or as required |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Origin: | China | Standard: | Alloy Steel Seamless Pipe, Alloy Steel Pipe Gr P5, Alloy Steel Pipe Gr P11, Alloy Steel Pipe Gr P9, Alloy Steel Pipe Gr P22, Alloy Steel Pipe Gr P91, ASTM A335, |
|---|---|---|---|
| Standards: | API, ASTM, Bs, DIN, GB, JIS, API 5CT, API 5L, ASTM A106-2006, ASTM A53-2007, ASTM A335-2006, ASTM A213M-2001, BS 1387, BS EN 39, DIN 2391, DIN 17175, GB/T 3091-2001, GB/T8162, Gb/t8163, JIS G3444-2006, JIS G3441 | Pressure: | Sch30 Sch40 STD Sch60 Sch80 XS Sch100 Sch160 |
| Graded: | A335 P11, A335 P5, A335 P91, A335 P9, A335 P1, A335 P12, A335 P92, A335 P23, 15crmo, 10CRMO910, Cr5Mo, 12CrMo, Cr9Mo, 12cr1movg, 15CrMoG, A53-A369, Cr-Mo Alloy | Certificate:: | ISO9001-2008 CE PED |
| Surface Treatment:: | Rolling Sand Blasting Pickling | Application:: | Petrochemical, Electric Power, Gas, Metallurgy, Shipbuilding, Construction, Etc. |
| High Light: | 16" alloy steel elbow,sch 80 alloy steel elbow,pickling alloy steel elbow |
||
Product Description
Vanforge holds a large types of stainless and duplex steel butt welding fittings according to ANSI/ASME. Our program includes seamless butt welding fittings from 1/2 in. to 12 in. and welded butt welding fittings from 1/2 in. to 24 in. The schedule range covers 5S to Schedule 160.
Materials and specifications
The Vanforge program includes ASME butt welding fittings in the following materials:
Austenitic stainless steels
Stainless steel grades ASTM 304/304L and ASTM 316/316L (dual marked and certified) acc. to ASTM A / ASME SA403, IC acc. to ASTM A262E and PMI tested.
Duplex and super-duplex stainless steels
Duplex grade UNS S31803 (EN 1.4462) and super-duplex grade UNS S32750 (EN 1.4410) acc. to ASTM A815, G48A for UNS S32750 and PMI tested.
All Vanforge's ASME butt welding fittings are acc. to ASME B16.9, annealed and quenched, bevelled ends acc. to ASME B16.25, hardness acc. to NACE MR0175.
Vanforge ASME butt welding fittings are certified acc. to EN 10204/3.1.

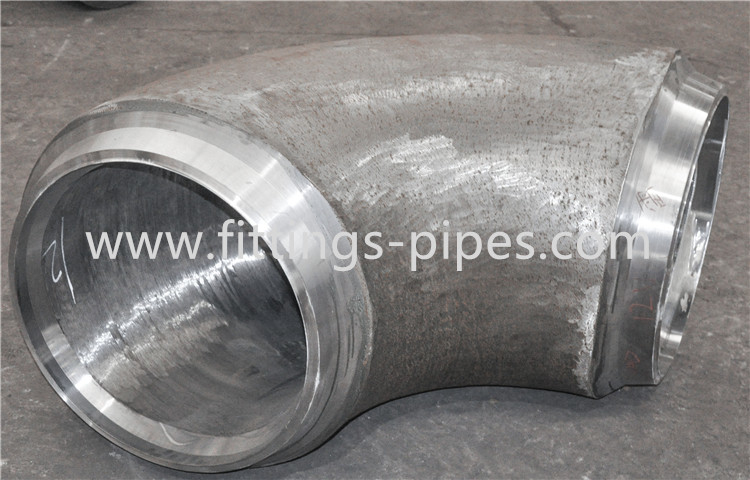

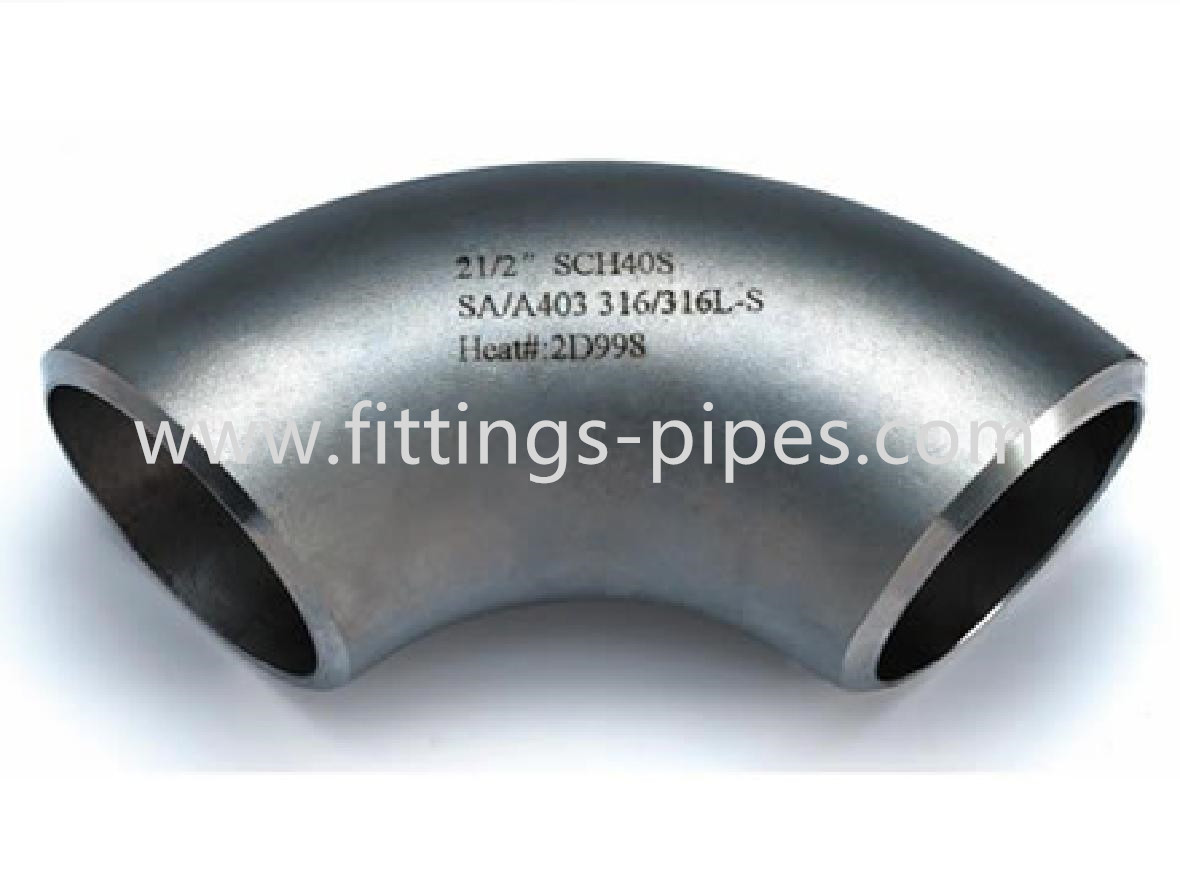

Elbows 90º long radius, butt weld fittings
| Nominal pipe size | Sch.* | Dimensions in mm | Weight | ASTM | ASTM | UNS | UNS | ||
| in. | D | t | A | kg/pce | 304/304L | 316/316L | S31803 | S32750 | |
| 1/2 |
10s 40s 80s 160 |
21.3 21.3 21.3 21.3 |
2.11 2.77 3.73 4.78 |
38.1 38.1 38.1 38.1 |
0.060 0.080 0.100 0.150 |
●/▲ ●/▲ ●/▲ - |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 3/4 |
10s 40s 80s 160 |
26.7 26.7 26.7 26.7 |
2.11 2.87 3.91 5.56 |
38.1 38.1 38.1 38.1 |
0.070 0.090 0.110 0.230 |
●/▲ ●/▲ ● - |
●/▲ ●/▲ ● ● |
● ● - - |
● - - - |
| 1 |
10s 40s 80s 160 |
33.4 33.4 33.4 33.4 |
2.77 3.38 4.55 6.35 |
38.1 38.1 38.1 38.1 |
0.140 0.160 0.220 0.253 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 1¼ |
10s 40s 80s 160 |
42.2 42.2 42.2 42.2 |
2.77 3.56 4.85 6.35 |
47.6 47.6 47.6 47.6 |
0.230 0.250 0.400 0.419 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● - - - |
| 1½ |
10s 40s 80s 160 |
48.3 48.3 48.3 48.3 |
2.77 3.68 5.08 7.14 |
57.2 57.2 57.2 57.2 |
0.310 0.400 0.510 0.649 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 2 |
10s 40s 80s 160 |
60.3 60.3 60.3 60.3 |
2.77 3.91 5.54 8.74 |
76.2 76.2 76.2 76.2 |
0.510 0.710 0.910 1.330 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 2½ |
10s 40s 80s 160 |
73.0 73.0 73.0 73.0 |
3.05 5.16 7.01 9.52 |
95.3 95.3 95.3 95.3 |
0.850 1.360 1.810 2.330 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
- - - - |
| 3 |
10s 40s 80s 160 |
88.9 88.9 88.9 88.9 |
3.05 5.49 7.62 11.13 |
114.3 114.3 114.3 114.3 |
1.220 2.180 2.980 3.830 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 3½ |
10s 40s |
101.6 101.6 |
3.05 5.74 |
133.4 133.4 |
1.700 1.830 |
● - |
● ● |
- - |
- - |
| 4 |
10s 40s 80s 160 |
114.3 114.3 114.3 114.3 |
3.05 6.02 8.56 13.49 |
152.4 152.4 152.4 152.4 |
2.150 4.170 6.180 8.020 |
●/▲ ●/▲ ● ● |
●/▲ ●/▲ ● ● |
● ● - - |
● ● - - |
| 5 |
10s 40s 80s |
141.3 141.3 141.3 |
3.40 6.55 9.53 |
190.5 190.5 190.5 |
3.630 6.860 9.580 |
●/▲ ●/▲ - |
●/▲ ●/▲ - |
▲ - - |
- - - |
| 6 |
10s 40s 80s |
168.3 168.3 168.3 |
3.40 7.11 10.97 |
228.6 228.6 228.6 |
4.900 10.890 16.330 |
●/▲ ●/▲ ● |
●/▲ ●/▲ ● |
●/▲ ● - |
● - - |
| 8 |
10s 40s 80s |
219.1 219.1 219.1 |
3.76 8.18 12.70 |
304.8 304.8 304.8 |
10.660 21.550 33.110 |
●/▲ ●/▲ ● |
●/▲ ●/▲ ● |
▲ ● - |
- - - |
| 10 |
10s 40s |
273.1 273.1 |
4.19 9.27 |
381.0 381.0 |
19.500 38.560 |
●/▲ ●/▲ |
●/▲ ●/▲ |
▲ - |
- - |
| 12 |
10s 40s |
323.9 323.9 |
4.57 9.53 |
457.2 457.2 |
27.220 59.420 |
▲ ▲ |
▲ ▲ |
▲ - |
- - |
| 14 |
10s STD |
355.6 355.6 |
4.78 9.53 |
533.4 533.4 |
36.300 70.300 |
▲ ▲ |
▲ ▲ |
- - |
- - |
| 16 |
10s STD |
406.4 406.4 |
4.78 9.53 |
609.6 609.6 |
47.630 91.630 |
▲ ▲ |
▲ ▲ |
- - |
- - |
| 18 | 10s | 457.2 | 4.78 | 685.8 | 59.870 | ▲ | ▲ | - | - |
| 20 | 10s | 508.0 | 5.54 | 762.0 | 99.790 | ▲ | ▲ | - | - |
| 24 | 10s | 609.6 | 6.35 | 914.4 | 140.610 | ▲ | ▲ | - | - |
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
P5 |
Max.0.15 |
Max.0.50 |
0.3-0.6 |
Max.0.025 |
Max.0.025 |
4--6 |
0.45-0.65 |
P11 |
0.05-0.15 |
0.5-1.0 |
0.3-0.6 |
Max.0.025 |
Max.0.025 |
1.0-1.5 |
0.44-0.65 |
P12 |
0.05-0.15 |
Max.0.50 |
0.3-0.61 |
Max.0.025 |
Max.0.025 |
0.8-1.25 |
0.44-0.65 |
P22 |
0.05-0.15 |
Max.0.50 |
0.3-0.6 |
Max.0.025 |
Max.0.025 |
1.9-2.6 |
0.87-1.13 |
Mechanical properties |
|
|
|
|
|
|
|
Grade |
Yield point (Mpa) |
Tensile strength (Mpa) |
Elongation(%) |
Impact value(J) |
|
|
|
P5 |
≥205 |
≥415 |
See table |
≥35 |
|
|
|
P11 |
≥205 |
≥415 |
See table |
≥35 |
|
|
|
P12 |
≥220 |
≥415 |
See table |
≥35 |
|
|
|
P22 |
≥205 |
≥415 |
See table |
≥35 |
|
|
|
