Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HongCheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 6" TO 16" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Ton |
| Price: | Negotiable |
| Packaging Details: | Standard export seaworthy package,or as required |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Origin: | China | Standards: | API, ASTM, Bs, DIN, GB, JIS, API 5CT, API 5L, ASTM A106-2006, ASTM A53-2007, ASTM A335-2006, ASTM A213M-2001, BS 1387, BS EN 39, DIN 2391, DIN 17175, GB/T 3091-2001, GB/T8162, Gb/t8163, JIS G3444-2006, JIS G3441 |
|---|---|---|---|
| Pressure: | Sch30 Sch40 STD Sch60 Sch80 XS Sch100 Sch160 | Export Tosia,Spain,South Africa, Vier Nam,Peru,Dubai,etc.: | Singapore,Indonesia,Ukraine,Brazil,Korea,Thailand,USA, UK,Canada,Saudi Arabia,Ireland,Oman,Rus |
| Certification: | ABS, BV, DNV, GL, LR, SGS, IEI | Graded: | A335 P11, A335 P5, A335 P91, A335 P9, A335 P1, A335 P12, A335 P92, A335 P23, 15crmo, 10CRMO910, Cr5Mo, 12CrMo, Cr9Mo, 12cr1movg, 15CrMoG, A53-A369, Cr-Mo Alloy |
| Supply Ability :: | 10000 PC Per Month | ||
| High Light: | astm a355 t12 alloy steel tubes,20" alloy steel tubes,boiler alloy steel seamless pipe |
||
Product Description

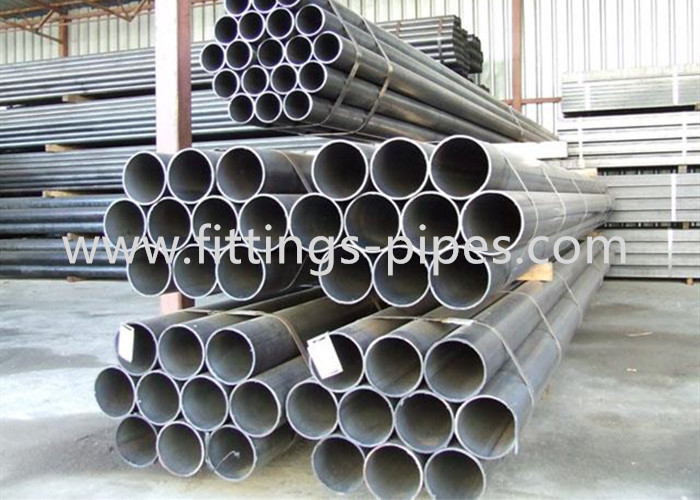

.Alloy pipe is a kind of seamless steel pipe. Alloy pipe is divided into structural seamless pipe and high-pressure heat-resistant alloy pipe. It is mainly different from the production standard and industry of alloy pipe. Annealing and tempering of alloy pipe changes its mechanical properties. Meet the required processing conditions. Its performance is higher than that of ordinary seamless steel pipe, its utilization value is higher, the chemical composition of alloy pipe contains more Cr, and its performance of high temperature resistance, low temperature resistance and corrosion resistance. Ordinary carbon seamless pipe does not contain alloy components or there are few alloy components. Alloy pipe is widely used in petroleum, aerospace, chemical industry, electric power, boiler and other industries because the mechanical properties of alloy pipe change and are easy to adjust.
| Alloy steel seamless pipe/tube | |
| PIPES & TUBES | ASTM A335, ASTM A213, ASTM A691 |
| PIPES FITTINGS | ASTM A234 |
| FITTINGS FLANGES | ASTM A182 |
| GRADES | P5/P9/P11/P12/P22/P91 & T5/T9/T11/T22/T91 |
| FORM (PIPES) | SEAMLESS / ERW / LSAW/ SSAW |
| HONGCHENG is Exporters & Supplier of alloy steel seamless pipe, alloy steel pipe gr p5,alloy steel pipe gr p11, alloy steel pipe gr p9, alloy steel pipe gr p22, alloy steel pipegr p91, ASTM A335, ASTM A213, ASTM A691. | |
| Specification for alloy seamless steel tubes | |||
| material quality | specifications | material quality | specifications |
| 12Cr1MovG | 16-18*3 | 15CrMo | 57-60-63.5*4-5-9 |
| 12Cr1MovG | 28-32*3-5-6 | 15CrMo | 89-114*6-8-10 |
| 12Cr1MovG | 48*305-5-6-8 | 15CrMo | 133*6-8-10-14 |
| 12Cr1MovG | 51*3.5-5-6-8 | 15CrMo | 159*8-10-12-16 |
| 12Cr1MovG | 60*4-5-8-10 | 15CrMo | 168*8-10-16-20 |
| 12Cr1MovG | 63.5*4-5 | 15CrMo | 219*14-16-20 |
| 12Cr1MovG | 76*3.5-6-8-10 | 15CrMo | 273*10-12-14-16-20 |
| 12Cr1MovG | 89*4.5-6-8-10-12 | 15CrMo | 325*10-12-14-25 |
| 12Cr1MovG | 108*4.5-6-8-10-12 | 15CrMo | 377*10-12-25 |
| 12Cr1MovG | 114*6-8-10-12-14 | 15CrMo | 377*24-45 |
| 12Cr1MovG | 159*8-10-12-16 | 15CrMo | 426*12-14-16-30 |
| 12Cr1MovG | 194*8-10-16 | 10Crm910 | 33.4*9.1 |
| 12Cr1MovG | 219*8-10-16-20-25 | 10Crm910 | 54*6.5 |
| 12Cr1MovG | 245*10-12-20 | 10Crm910 | 57*5.6 |
| 12Cr1MovG | 273*10-10-12 | 10Crm910 | 530*110 |
| 12Cr1MovG | 325*10-12-14-25-30 | T91 | 57-60*5.6 |
| 12Cr1MovG | 377*10-16-30 | T91 | 60*4-6-8 |
| 12Cr1MovG | 426*10-16-25 | T91 | 54-4-8-10 |
| 12Cr1MovG | 480*48 | T91 | 51*7 |
| 15CrMo | 28*4-6 | T91 | 42-5.5 |
| 15CrMo | 38-42-45*3.5-5-6-8 | 12Cr2MoWVTiB | 42*3.5-5 |
| 15CrMo | 51*3.5-4-5-6-8 | 15Mn3 | 42*5-6 |
2.Chemical details:
| Item | C | Si | Mn | P | S | Cr | Mo |
| P1 | 0.10-0.20 | 0.10-0.50 | 0.3-0.80 | ≤0.025 | ≤0.025 | / | 0.44-0.65 |
| P2 | 0.10-0.20 | 0.10-0.30 | 0.3-0.61 | ≤0.025 | ≤0.025 | 0.5-0.81 | 0.44-0.65 |
| P5 | ≤0.15 | ≤0.50 | 0.3-0.60 | ≤0.025 | ≤0.025 | 4.0-6.0 | 0.44-0.65 |
| P9 | ≤0.15 | ≤0.50 | 0.3-0.60 | ≤0.030 | ≤0.030 | 8.0-10.0 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.5-1.0 | 0.3-0.60 | ≤0.025 | ≤0.025 | 1.0-1.50 | 0.44-0.65 |
| P22 | 0.05-0.15 | ≤0.50 | 0.3-0.60 | ≤0.025 | ≤0.025 | 1.9-2.60 | 0.87-1.13 |
| P21 | 0.05-0.15 | ≤0.50 | 0.3-0.60 | ≤0.025 | ≤0.025 | 2.65-3.35 | 0.80-1.06 |
| P91 | 0.08-0.12 | 0.20-0.50 | 0.30-0.60 | ≤0.020 | ≤0.010 | 8.0-9.5 | 0.85-1.05 |
| P15 | 0.05-0.15 | 1.15-1.65 | 0.30-0.60 | ≤0.025 | ≤0.025 | / | 0.44-0.65 |
Mechanical Property:
| Standard | Grade | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | |
| ≤16 | >16-30mm | ||||
| GB/T8162-1999 | 10 | 335 | 205 | 195 | 24 |
| 20 | 390 | 245 | 235 | 20 | |
| 35 | 510 | 305 | 295 | 17 | |
| 45 | 590 | 335 | 325 | 14 | |
| 16Mn | 490 | 325 | 315 | 21 | |
| GB/T8163 | 10 | 335~475 | ≥205 | ≥24 | |
| 20 | 410~550 | ≥245 | ≥20 | ||
| Q345 | 490~665 | ≥325 | ≥21 | ||
| GB/T3087 | 10 | 333-475 | ≥196 | ≥24 | |
| 20 | 392-588 | ≥245/226 | ≥20 | ||
| GB/T5310 | 20G | 410-550 | ≥245 | ≥24 | |
| 12CrMoG | 410-560 | ≥205 | ≥21 | ||
| 15CrMoG | 450-640 | ≥235 | ≥21 | ||
| 12Cr1MoVG | 470-640 | ≥255 | ≥21 | ||
| GB/T9948 | 10 | 330-490 | ≥205 | ≥24 | |
| 20 | 410-550 | ≥245 | ≥21 | ||
| 12CrMoG | 410-560 | ≥205 | ≥21 | ||
| 15CrMoG | 410-640 | ≥235 | ≥21 | ||
| GB/T6479 | 10 | 330-490 | ≥205 | ≥24 | |
| 20 | 410-500 | ≥245 | ≥21 | ||
| 12CrMo | 410-560 | ≥205 | ≥21 | ||
| 15CrMo | 440-640 | ≥235 | ≥21 | ||
