Name: Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24"
Brand: hongcheng
SKU: 1/2" TO 24 "
Rating: 4.5 (104 reviews)

Detail Information
Product Description

Detail Information
Place Of Origin ::	CHINA	Payment Terms ::	T/T Or Western Union Or LC
Certification ::	ISO, API, CE	Supply Ability ::	10000 PC Per Month
Variety:	Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8	Connection::	Soldering
Port::	Tianjin	Material::	Stainless Steel
High Light:	wp304 stainless steel fittings , 24" stainless steel fittings , astm ss 304 fittings

Product Description

Astm A403 Wp304 Wp304l Reducing Stainless Steel 1/2"~24" Stainless Steel Pipe Fittings

DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~

Nominal Pipe Size	All Fittings	All Fittings	All Fittings	Elbows/ Tees	180° Return Bends	180° Return Bends	180 Deg Return Bends	Reducers	Caps
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38

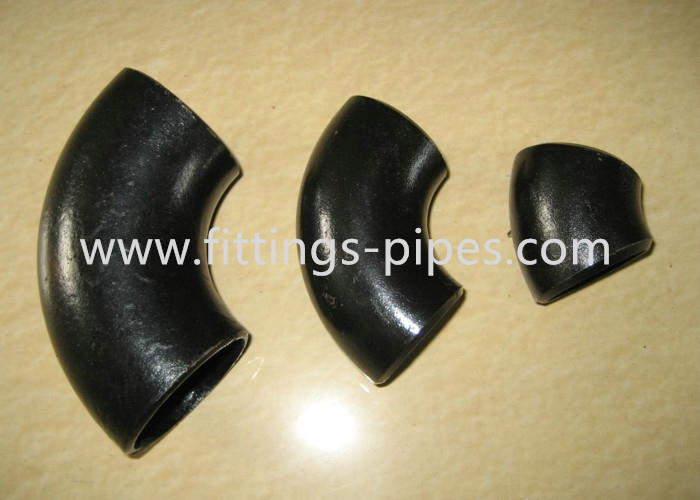

Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24" 0

Chemical Composition:

Chemical Composition of ASTM A234
Element	WP5	WP9	WP11	WP91
C	Max 0.15	Max .15	0.05 - 0.15	0.08 - 0.12
Mn	0.30 - 0.60	0.30 - 0.60	0.30 - 0.60	0.30 - 0.60
P	Max 0.040	Max 0.030	Max 0.030	Max 0.020
S	Max 0.030	Max 0.030	Max 0.030	Max 0.010
Si	Max 0.50	0.25 - 1.00	0.50 - 1.00	0.20 - 0.50
Ni	-	-	-	Max 0.40
Cr	4.0 - 6.0	8.0 - 10.0	1.00 - 1.50	8.0 - 9.5
Mo	0.44 - 0.65	0.90 - 1.10	0.44 - 0.65	0.85 - 1.05
Cu	-	-	-	-
Cb	-	-	-	0.060 - 0.10
V	-	-	-	0.18 - 0.25

Mechanical Property:

ASTM A234/A234M	Tensile strength, min		Yield Strength, min		Elongation,%, min
Grade	Ksi	Mpa	Ksi	Mpa	Longitudinal	Transverse
WP5	60-85	415 - 585	30	205	22	14
WP9	60-85	415 - 585	30	205	22	14
WP11	60 - 85	415 - 585	40	275	22	14
WP91	85 - 110	585 - 760	60	415	20	-

Hongcheng is a professional Alloy Steel pipe fittings Alloy Stee pipe manufacturer in China,
We can produce high quality steel pipe fittings,
Tee (Equal Reducing)
Material:
Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
Marking:As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
Document: MTC EN10204-3.1 can be provided prior to shipment
Surface treatment: Surface galvanized, antirust coating, Epoxy FBE Coating, Electro Polishing,
For further information about our company and products, please visit our website or contact us directly. You will get our 24X7 hour reply by Email, fax or Pohone.

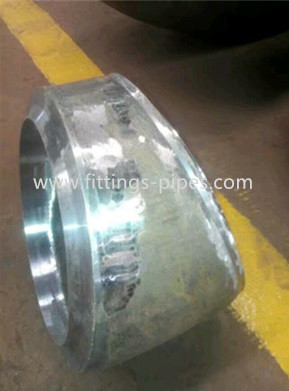

Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24" 1

Nominal Pipe Size		Outside diameter		Center-to-End
Nominal Pipe Size		at bevel		Center-to-End
Run	Outlet	Run	Outlet	Run (C)	Outlet (M)
1/2"	1/4"	21.3	13.7	25	25
1/2"	3/8"	21.3	17.3	25	25
3/4"	3/8"	26.7	17.3	29	29
3/4"	1/2"	26.7	21.3	29	29
1"	1/2"	33.4	21.3	38	38
1"	3/4"	33.4	26.7	38	38
1 1/4"	1/2"	42.2	21.3	48	48
	3/4"		26.7
	1"		33.4
1 1/2"	1/2"	48.3	21.3	57	57
	3/4"		26.7
	1"		33.4
	1 1/4"		42.2
2"	3/4"	60.3	26.7	64	44
	1"		33.4		51
	1 1/4"		42.2		57
	1 1/2"		48.3		60
2 1/2"	1"	73	33.4	76	57
	1 1/4"		42.2		64
	1 1/2"		48.3		67
	2"		60.3		70
3"	1 1/4"	88.9	42.2	86	70
	1 1/2"		48.3		73
	2"		60.3		76
	2 1/2"		73		83
3 1/2"	1 1/2"	101.6	48.3	95	79
	2"		60.3		83
	2 1/2"		73		89
	3"		88.9		92
4"	1 1/2"	114.3	48.3	105	86
	2"		60.3		89
	2 1/2"		73		95
	3"		88.9		98
	3 1/2"		101.6		102
5"	2"	141.3	60.3	124	105
	2 1/2"		73		108
	3"		88.9		111
	3 1/2"		101.6		114
	4"		114.3		117
6"	2 1/2"	168.3	73	143	121
	3"		88.9		124
	3 1/2"		101.6		127
	4"		114.3		130
	5		141.3		137
8"	3 1/2"	219.1	101.6	178	152
	4"		114.3		156
	5"		141.3		162
	6"		168.3		168
10"	4"	273	114.3	216	184
	5"		141.3		191
	6"		168.3		194
	8"		219.1		203
12"	5"	323.8	141.3	254	216
	6"		168.3		219
	8"		219.1		229
	10"		273		241
14"	6"	355.6	168.3	279	238
	8"		219.1		248
	10"		273		257
	12"		323.8		270
16"	6"	406.4	168.3	305	264
	8"		219.1		273
	10"		273		283
	12"		323.8		295
	14"		355.6		305
18"	8"	457	219.1	343	298
	10"		273		308
	12"		323.8		321
	14"		355.6		330
	16"		406.4		330
20"	8"	508	219.1	381	324
	10"		273		333
	12"		323.8		346
	14"		355.6		356
	16"		406.4		356
	18"		457		368
22"	10"	559	273	419	359
	12"		323.8		371
	14"		355.6		381
	16"		406.4		381
	18"		457		394
	20"		508		406
24"	10"	610	273	432	384
	12"		323.8		397
	14"		355.6		406
	16"		406.4		406
	18"		457		419
	20"		508		432
	22"		559		432

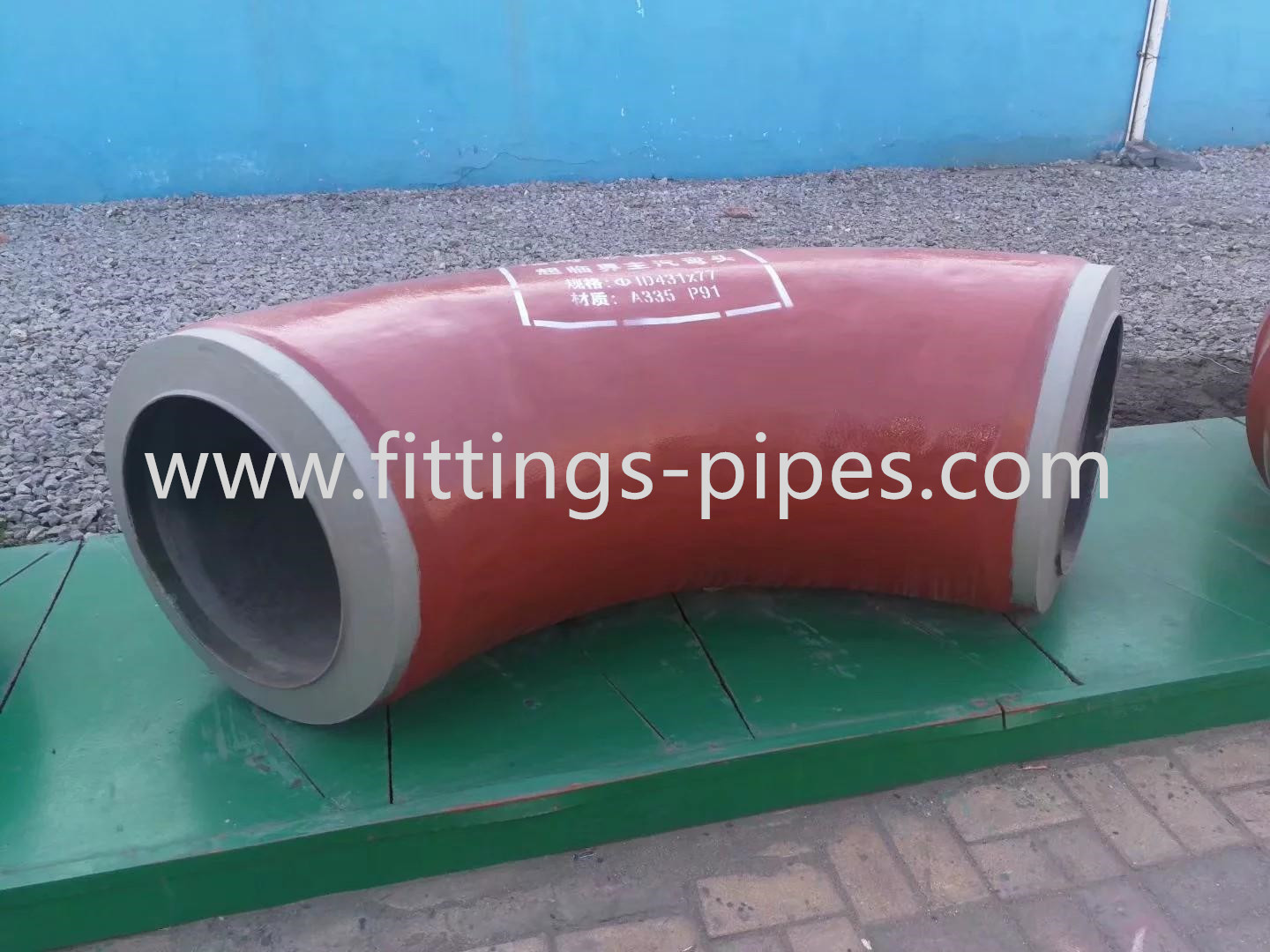

Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24" 2

Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24" 3

FAQ:

　　1. Are you a factory or trading company?

　　We are a factory.we also have cooperated factory doing other steel business.

　　2. How can I get a quotation from you ?

　　You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.

　　And you can also find our contact information on contact page.

　　3.Can I get samples before order ?

　　Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

　　4. what is your delivery time ?

　　The time of delivery is usually around 20 days(1*20FT as usual).

　　We can send out in 2 days, if it has stock.

　　5.What is your payment terms?

　　Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.

　　6.How does your factory do regarding quality control?

　　Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.

　　And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,

　　we will make the last test to pick up the unqualified products

Tag:

Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1Ton
Price:	Negotiation
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	100000Tons per year
