Detail Information
Product Description

Detail Information
Pressure:	Sch30 Sch40 STD Sch60 Sch80 XS Sch100 Sch160	Certification:	ABS, BV, DNV, GL, LR, SGS, IEI
Standards:	API, ASTM, Bs, DIN, GB, JIS, API 5CT, API 5L, ASTM A106-2006, ASTM A53-2007, ASTM A335-2006, ASTM A213M-2001, BS 1387, BS EN 39, DIN 2391, DIN 17175, GB/T 3091-2001, GB/T8162, Gb/t8163, JIS G3444-2006, JIS G3441	Graded:	A335 P11, A335 P5, A335 P91, A335 P9, A335 P1, A335 P12, A335 P92, A335 P23, 15crmo, 10CRMO910, Cr5Mo, 12CrMo, Cr9Mo, 12cr1movg, 15CrMoG, A53-A369, Cr-Mo Alloy
Export Tosia,Spain,South Africa, Vier Nam,Peru,Dubai,etc.:	Singapore,Indonesia,Ukraine,Brazil,Korea,Thailand,USA, UK,Canada,Saudi Arabia,Ireland,Oman,Rus	Standard:	Alloy Steel Seamless Pipe, Alloy Steel Pipe Gr P5, Alloy Steel Pipe Gr P11, Alloy Steel Pipe Gr P9, Alloy Steel Pipe Gr P22, Alloy Steel Pipe Gr P91, ASTM A335,
Highlight:	astm a333 alloy seamless steel pipe , ped alloy seamless steel pipe , astm a106 seamless alloy steel pipe

Product Description

Hot Rolled Seamless Steel Pipe Astm A333 A106 12" 14" 16" 18" 20" Sch40 Sch60 Sch80

Introduction

Seamless steel tubes have hollow sections and are used in large quantities as pipelines for conveying fluid, such as pipelines for oil, natural gas, gas, water and certain solid materials. Compared with solid steel such as round steel, steel pipe is a kind of economical steel with light weight when bending and torsion strength is the same. It is widely used to manufacture structural parts and mechanical parts, such as petroleum drill pipe, automobile drive shaft, bicycle frame and steel scaffold used in construction.
Seamless steel tubes have hollow sections and are used in large quantities as pipelines for conveying fluid, such as pipelines for oil, natural gas, gas, water and certain solid materials. Compared with solid steel such as round steel, steel pipe is a kind of economical steel with light weight when bending and torsion strength is the same. It is widely used to manufacture structural parts and mechanical parts, such as oil drill pipe, automobile drive shaft, bicycle frame and steel scaffold used in construction. Steel pipe or all kinds of conventional weapons indispensable materials, barrel, barrel and so on are made of steel pipe. The steel pipe can be divided into round pipe and special-shaped pipe according to the shape of cross-sectional area. Because the circular area is the largest under the condition of equal circumference, more fluid can be transported by circular pipe. In addition, the ring section under internal or external radial pressure, the force is more uniform, therefore, most of the steel pipe is a circular pipe.
However, the circular tube also has some limitations, such as under the condition of plane bending, the circular tube is less than square, rectangular tube bending strength, some agricultural machinery skeleton, steel wood furniture and so on commonly used square, rectangular tube. According to different uses also need to have other section shape special-shaped steel pipe.

Seamless steel pipe for high pressure chemical fertilizer equipment: mainly used for conveying high temperature and high pressure fluid pipeline on chemical fertilizer equipment. representative material is 20,16 Mn,12CrMo,12Cr2Mo etc.
Seamless steel pipe for petroleum cracking: boiler, heat exchanger and its conveying fluid pipeline mainly used in petroleum smelter. and its representative material is 20,12 CrMo,1Cr5Mo,1Cr19Ni11Nb, etc.
Seamless steel pipe for gas cylinders: mainly used to make various gas and hydraulic cylinders. Its representative material is 37 Mn,34Mn2V,35CrMo and so on.
Hot rolled seamless steel pipe for hydraulic prop: mainly used to make coal mine hydraulic support and cylinder, column, and other hydraulic cylinder, column. and its representative material is 20,45,27 SiMn etc.
High pressure seamless steel pipe for diesel engine: mainly used for high pressure tubing of diesel engine injection system. Generally, its steel pipe is cold-drawn pipe, its representative material is 20 A.
Cold drawn or cold rolled precision seamless steel pipe: mainly used for mechanical structure, carbon pressure equipment, high dimensional accuracy, good surface finish steel pipe. Its representative material 20,45 steel and so on.

1.Product details:

Standard& Material:	GB5310-2013 Standard: 20G,25MnG, 15MoG,15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG, 12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910, ASTM A209M/AS-209M Standard A209T1/SA209 T1, A209 T1b/SA-209 T1b, A209T1a/SA209 T1a ASTM A210M/SA-210M Standard A210 A1/ SA-210 A1, A210C, SA-210C ASTM A213M/ASME SA 213 M Standard: T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122 ASTM A333M/ASME SA-333/SA333M Standard: Gr1, Gr3, Gr4, Gr6, Gr7,Gr8, Gr9, Gr10, Gr11 ASTM A334M/ASME SA-334/SA334M Standard: Gr1, Gr3, Gr6, Gr7,Gr8, Gr9, Gr11 ASTM A335/ASME SA335 Standard: P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92 ASTM A519 Standard: 4118, 4130,4135,4137,4140 ASTM A691 Standard GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80, ASTM A691 Standard GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4 Cr, 3CR, 5CR, 9 CR DIN17175 Standard: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV EN10216-2 Standard: P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1 JIS G3458 Standard: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26 JIS G3441 Standard:SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK. NF A49-213/215 Standard: TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505 Alloy C276 BS3059 Standard: S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590 BS3604Standard: HFS625 CFS625 BS3606Standard: CFS625
Size:	O.D:6-760mm W.T:1-80mm Fixed Length: 5.8m, 6m, 11.8m, 12m, or random length as required.
Application:	1) Boiler, Superheater, Heat Exchanger; 2) Petroleum; 3) Aerospace; 4) Chemical; 5) Electric Power; 6) Military. Alloy steel pipe applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant part.
Testing	Tensile Test, Hardness Test, Impact Test, Bend Test, Flattening Test, Flaring Test, Hydrostatic or Nondestructive Test
Technique	Hot Rolled, Cold Drawn, Cold Rolled
Package	Export standard package; bundled wooden box, suit for all kinds of transport, or be required

seamless steel pipe chemical composition:

Grade	C	Si	Mn	P	S	Cr	Mo
P5	Max.0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	4--6	0.45-0.65
P11	0.05-0.15	0.5-1.0	0.3-0.6	Max.0.025	Max.0.025	1.0-1.5	0.44-0.65
P12	0.05-0.15	Max.0.50	0.3-0.61	Max.0.025	Max.0.025	0.8-1.25	0.44-0.65
P22	0.05-0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	1.9-2.6	0.87-1.13
Mechanical properties
Grade	Yield point (Mpa)	Tensile strength (Mpa)	Elongation(%)	Impact value(J)
P5	≥205	≥415	See table	≥35
P11	≥205	≥415	See table	≥35
P12	≥220	≥415	See table	≥35
P22	≥205	≥415	See table	≥35

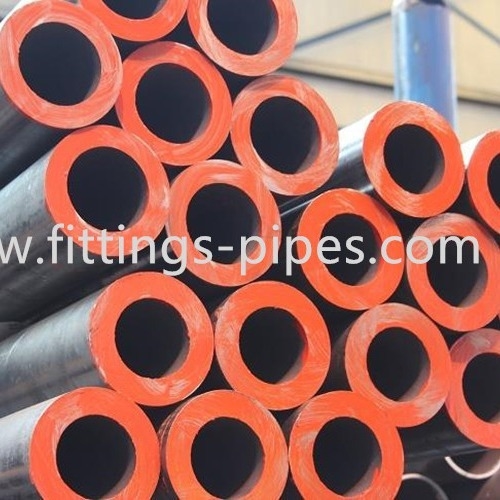

Hot Rolled Astm A333 A106 Alloy Seamless Steel Pipe 12" 14" 16" 18" 20" 0

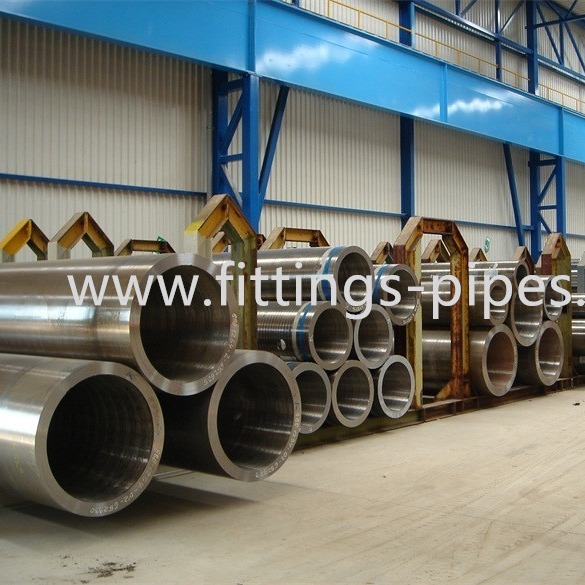

Hot Rolled Astm A333 A106 Alloy Seamless Steel Pipe 12" 14" 16" 18" 20" 1

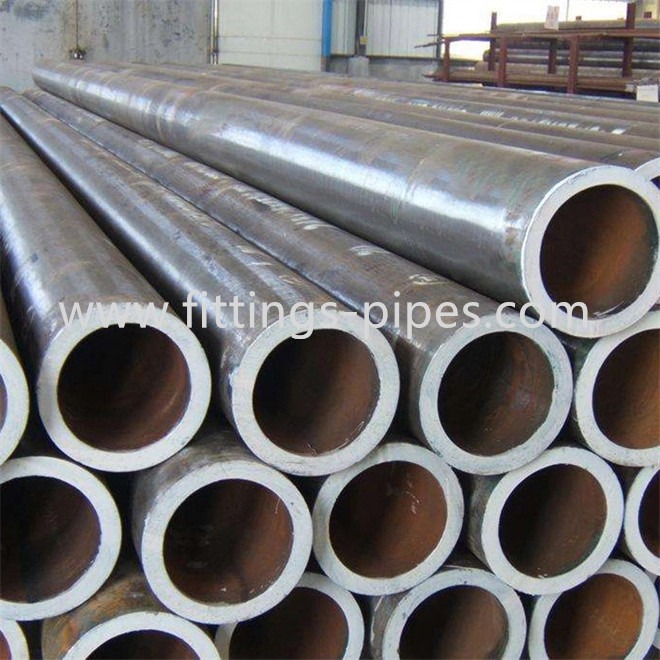

Hot Rolled Astm A333 A106 Alloy Seamless Steel Pipe 12" 14" 16" 18" 20" 2

FAQ

1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

4. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.

5.Q: After sales service.

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HongCheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 24"
Payment & Shipping Terms:
Minimum Order Quantity:	0.5Ton
Price:	Negotiable
Packaging Details:	Standard export seaworthy package,or as required
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Hot Rolled Astm A333 A106 Alloy Seamless Steel Pipe 12" 14" 16" 18" 20"

astm a333 alloy seamless steel pipe

ped alloy seamless steel pipe

astm a106 seamless alloy steel pipe

Hot Rolled Seamless Steel Pipe Astm A333 A106 12" 14" 16" 18" 20" Sch40 Sch60 Sch80

Introduction

1.Product details:

Standard& Material:

GB5310-2013 Standard: 20G,25MnG, 15MoG,15CrMoG, 20MoG, 12CrMoG, 12Cr2MoG, 12Cr1MoVG, 12Cr2MoWVTiB, 10Cr9Mo1VNb, 15CrMoG, 10CrMo910,

ASTM A209M/AS-209M Standard A209T1/SA209 T1, A209

T1b/SA-209 T1b, A209T1a/SA209 T1a

ASTM A210M/SA-210M Standard A210 A1/ SA-210 A1, A210C, SA-210C

ASTM A213M/ASME SA 213 M Standard: T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122

ASTM A333M/ASME SA-333/SA333M Standard: Gr1, Gr3, Gr4, Gr6, Gr7,Gr8,

Gr9, Gr10, Gr11

ASTM A334M/ASME SA-334/SA334M Standard: Gr1, Gr3, Gr6, Gr7,Gr8, Gr9, Gr11

ASTM A335/ASME SA335 Standard: P1, P2, P5,P5b, P5c, P9, P11, P12,P21,P22,P23, P24, P91, P92

ASTM A519 Standard: 4118, 4130,4135,4137,4140

ASTM A691 Standard GRADE 91, CM65, CM70, CM75, CMSH70, CMS75, CMSH80,

ASTM A691 Standard GRADE 1/2 Cr, GRADE 1CR, GRADE 1 1/4 CR, 2 1/4

Cr, 3CR, 5CR, 9 CR

DIN17175 Standard: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910, 14MoV63,12Cr1MoV

EN10216-2 Standard: P195GH, P235GH, P265GH, 13CrMo4-5, 10CrMo9-10, 16Mo3, 10CrMo5-5, X10CrMoVNb9-1

JIS G3458 Standard: STPA12, STPA20, STPA22, STPA23, STPA24, STPA25, STPA26

JIS G3441 Standard:SCR420 TK,SCM415 TK, SCM418 TK, SCM420TK, SCM430TK, SCM435TK, SCM440TK.

NF A49-213/215 Standard: TU15D3, TU13CD4-04, TU10CD910, TUZ10CD505

Alloy C276

BS3059 Standard: S1-622-440, S2-622-440, S1-622-490, S2-622-490, S1-629-470, S2-629-470, S2-629-590

BS3604Standard: HFS625 CFS625

BS3606Standard: CFS625

Size:

O.D:6-760mm W.T:1-80mm Fixed Length: 5.8m, 6m, 11.8m, 12m, or random length as required.

Application:

1) Boiler, Superheater, Heat Exchanger;

2) Petroleum;

3) Aerospace;

4) Chemical;

5) Electric Power;

6) Military.

Alloy steel pipe applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant part.

Testing

Tensile Test, Hardness Test, Impact Test, Bend Test, Flattening Test, Flaring Test, Hydrostatic or Nondestructive Test

Technique

Hot Rolled, Cold Drawn, Cold Rolled

Package

Export standard package; bundled wooden box, suit for all kinds of transport,

or be required

seamless steel pipe chemical composition:

Grade

C

Si

Mn

P

S

Cr

Mo

P5

Max.0.15

Max.0.50

0.3-0.6

Max.0.025

Max.0.025

4--6

0.45-0.65

P11

0.05-0.15

0.5-1.0

0.3-0.6

Max.0.025

Max.0.025

1.0-1.5

0.44-0.65

P12

0.05-0.15

Max.0.50

0.3-0.61

Max.0.025

Max.0.025

0.8-1.25

0.44-0.65
