Thick Wall Sch30 Alloy Seamless Steel Pipe Hot Rolled For Boiler

Product Description

Thick Wall Alloy Hot Rolled Sea Astm A335 P91 12" 14" 16" 18" 20" Sch40 Sch60 Sch80



Introduction



Alloy Seamless Steel Astm A335 P92 High Pressure Boiler Pipes Astm A335 P92 Seamless Alloy Steel Pipe

ASTM A335 P92 is the part of ASTM A335, The pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding. The steel material shall conform to chemical composition, tensile property, and hardness requirements.

ASTM A335 P92 high pressure semaless boiler pipe, The range of ASTM A335 P92 seamless alloy steel pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practice.

Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.



The range of ASTM A335 P92 pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practice.

Alloy Seamless Steel Astm A335 P92 High Pressure Boiler Pipes Astm A335 P92 Seamless Alloy Steel Pipe 0

The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Outer Dimensions: 19.05mm – 114.3mm

Wall Thickness: 2.0mm – 14 mm

Length: max 16000mm

Steel grade: ASTM A335 P92

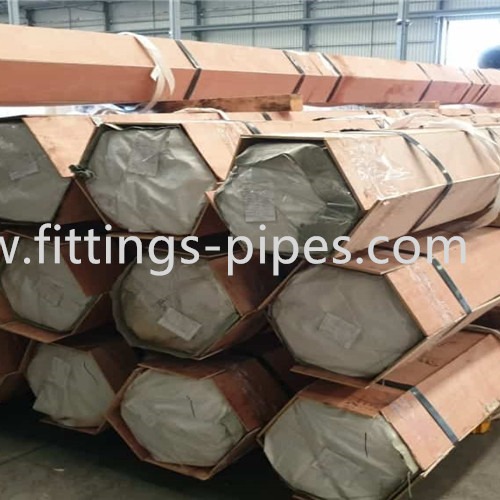

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.

Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Chemical Requirements of ASTM A335 P92



UNS Designation

K92460

Carbon

0.07–0.13

Manganese

0.30–0.60

Phosphorus(max)

0.02

Sulfur(max)

0.01

Silicon

0.50 max

Chromium

8.50–9.50

Molybdenum

0.30–0.60

V

0.15-0.25

N

0.03-0.07

Ni (max)

0.4

Al(max)

0.02

Cb

0.04-0.09

W

1.5-2.00

B

0.001-0.006

Ti (max)

0.01

Zr(max)

0.01

Mechanical Properties of ASTM A335 P92



Properties

Data

Tensile strength, min, (MPa)

620

Yield strength, min, (MPa)

440

Elongation, min, (%), L/T

20/…

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

A / N+T

N+T / Q+T

N+T

Mechanical Tests Specified

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test

For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.

For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

Notes for Bend Test:

For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.

Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.

The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.





1.Product details:

Item	Seamless pipe,seamless tube,seamless steel pipe, seamless steel tube,seamless tubing
Standard	ASTM,JIS,DIN,EN,GB,KS,API 5L,SUS,AISI
Material	Stainless:310S,309S,310,309,316,316L,317,317L,321,321H,347,347H,304,304L,301,201,202,904L,Duplex,etc
	Carbon steel:20#,20G,STPT410,STF410,A106 GR.B,A178C,A178D,P265GH,A53 GR.B,A135 GR.B,P265TR1, P265TR2,STPT480,A106 GR.C,A210C,Q195,Q235,Q345,ST35.8,ST45.8,ST52, etc
	Alloy:16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO, Cr5Mo,10CrMo910,12CrMo,13CrMo44,30CrMo,A333 GR.1,GR.3,GR.6,GR.7,etc
	API:Gr.B,X42,X46,X52,X60,X65,X70,X80,X100,etc
	AISI:1010,1015,1020,1022,1025,1026,1030,1033,1035,1039,1040,1045,1050,1053,1060,3140,4130,4140,4142, 4118,4120,5115,5140,5150,etc
Size	OD:6-2500mm
	WT:SCH5-SCH160,XS,STD,XXS ,1-200mm
	Length:5.8m,6m,11.8m,12m,or as required
Surface	Black painted,PE coated,Galvanized,Varnished,HDPE,3PE,etc
Package	Standard export package,suit for all kinds of transport, or as required
Export to	Singapore,Poland,India,Dubai,Korea,Thailand,Ukraine,USA,UK,Canada,Indonesia,Iraq,Mexico,Holland,South Africa, Peru,Spain,Pakistan,Viet Nam,Saudi Arabia,Ireland,Jordan,Oman,Kuwait,Italy,Nigeria,Australia,etc
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
Payment term	TT,L/C,Western Union,D/P,etc
Price term	Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc
MOQ	1 Metric ton
Application	Seamless pipe are widely Used for the transmission fluid pipe, such as transport oil, natural gas, coal gas, water and some solid pipeline etc
Contact	If you have any question,please feel free to contact me . we are sure your inquiry or requirements will get prompt attention.



seamless steel pipe chemical composition:

Grade	C	Si	Mn	P	S	Cr	Mo
P5	Max.0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	4--6	0.45-0.65
P11	0.05-0.15	0.5-1.0	0.3-0.6	Max.0.025	Max.0.025	1.0-1.5	0.44-0.65
P12	0.05-0.15	Max.0.50	0.3-0.61	Max.0.025	Max.0.025	0.8-1.25	0.44-0.65
P22	0.05-0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	1.9-2.6	0.87-1.13
Mechanical properties
Grade	Yield point (Mpa)	Tensile strength (Mpa)	Elongation(%)	Impact value(J)
P5	≥205	≥415	See table	≥35
P11	≥205	≥415	See table	≥35
P12	≥220	≥415	See table	≥35
P22	≥205	≥415	See table	≥35















FAQ



1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

4. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.

5.Q: After sales service.

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
