Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends

Product Details:
Place of Origin: China
Brand Name: Hong Cheng
Model Number: 1/2" TO 72"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 10-100 pieces US $216/ Piece;>100 pieces US $189/ Piece
Packaging Details: Plywood cases or pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Certification:: API CE ISO Payment Terms:: L/C, T/T
Size:: Seamless From DN15-DN700; Welding:DN200-DN2000 Standard: ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 Etc…
Face:: Special Coating I.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) Etc. Can Be Provided Thickness:: SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS,XXS HIGH THICKNESS TO 80MM
High Light:

Wp5 Long Radius Pipe Bends


6Inch Long Radius Pipe Bends


Long Radius 90 Degree Elbow Bend

Product Description

Steel Pipe Bend Bend For Pipe 90deg 6'' Std Asme B16.9 Long Radius Alloy Steel Astm A234 Gr Wp5 Buttweld Ends

1.Standard:ANSI B16.9
2.Material: A234-WPB.A420-WPL6.A234-WP11.A234-WP5,API5LX60,X65,X70

BENDING RADIUS (R):R=3D,4D,5D,6D,7D,8D,9D,10D.
BENDING ANGLE (θ):15degree,30degree,45degree,60degree,90degree,135degree&180degree,and also could manufacture according the angles given by the clients.
STRAIGHT LENGTH (L):The length between two ends general from 300mm-1500mm, and also can product according to the clients' requirement to product.
END BEVEL: according to the bevel of welding pipe fittings construction
WEIGHT:WEIGHT (Kg)=[0.0433(D-T)TRθ]/100000+L(the weight of two ends straight bend)

The bend is used to change the direction of run of pipe.its advantage is can match long distance transition requirements,so it is commonly that bends dimension according to customer design. usually,the bends consist of 3D,5D,7D even 12D series.

Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends 0

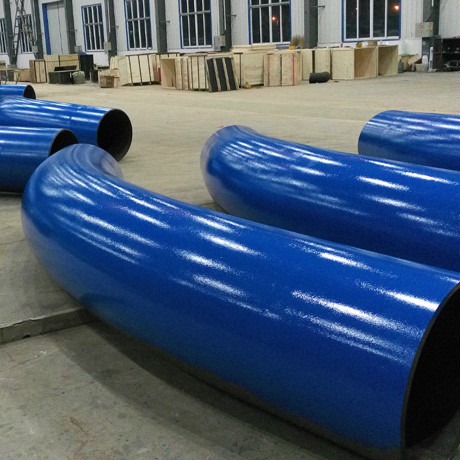

Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends 1

Product Name

45' 5D Long Radius Elbow BW SA234 GR. WPB-S Dia 10" SCH.40 ASME B 16.9


45' 5D Long Radius Elbow BW SA234 GR. WPB-S


Size 1/4" to 48" Outside Diameter 13.7 mm to 1219 mm


ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981


API5L, ISO 9001:2008,SGS, BV,CCIC

Wall thickness

SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment

black paint, varnish, oil, galvanized, anti corrosion coatings


wooden case & pallet

Pipe Ends

Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)

Pipe Length

1. Single Random Length and double Random Length.

2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length

3. fixed length(5.8m, 6m, 12m)


Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.


Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.


liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.


1.Reasonable price with excellent quality

2.Abundant stock and prompt delivery

3.Rich supply and export experience, sincere service

4.Reliable forwarder, 2-hour away from port.

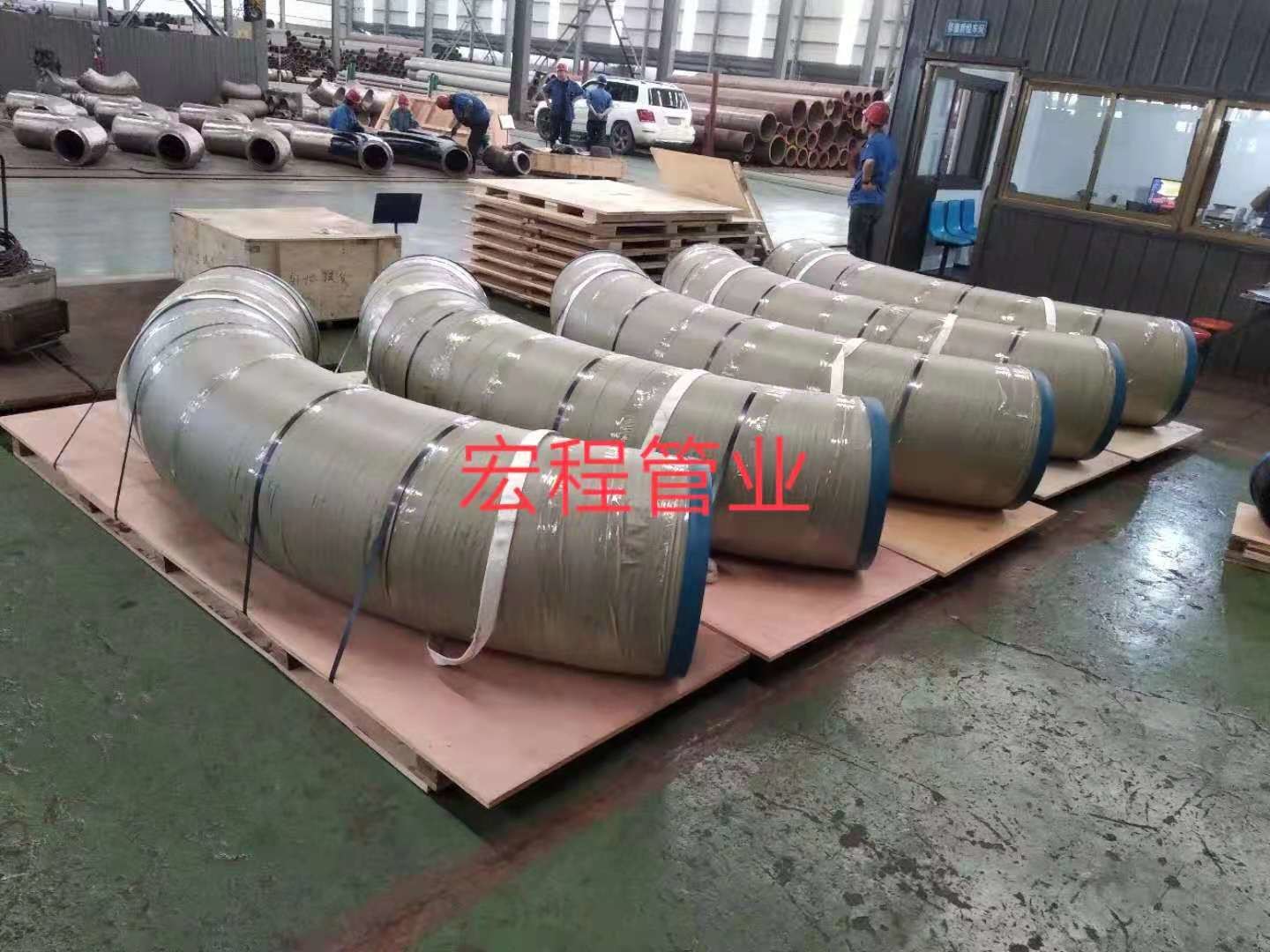

Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends 2

Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends 3

Gr Wp5 Long Radius Pipe Bends , 6 Inch 90 Degree Elbow Bend Buttweld Ends 4

The reason why you Choose us

· ISO System

· TUV and BV Audited company .

· Industry experience over 30 years.

· Management Systems-Internal Software

· Finished Product Inventory-More Than 50000 Tons.

· Raw Material inventory -Over 80000 Mertic Tons.

· Shipment of goods -More than 50 countries worldwide.

· We have the most convenient transport and prompt delivery.

· We offer competitive price with best service .

· We have high technical production line with top quality products.

· We have win high reputation based on best quality products.

Choose Hongcheng ,Choose Top Guarantee
