Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hong Cheng |
Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
Model Number: | 1/2" TO 72" |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1PCS |
Price: | 10-100 pieces US $216/ Piece;>100 pieces US $189/ Piece |
Packaging Details: | Plywood cases or pallets |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 2 Million Ton/Year |
Detail Information |
|||
Certification:: | API CE ISO | Payment Terms:: | L/C, T/T |
---|---|---|---|
Standard: | ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 Etc… | Product Class: | 2D 3D 4D 5D 6D, 45°, 90° 180° |
Connection Method: | Welding | Face:: | Special Coating I.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) Etc. Can Be Provided |
High Light: | Wpb Steel Pipe Bend,Astm A234 Steel Pipe Bend,Seamless 180 Degree Pipe Bend |

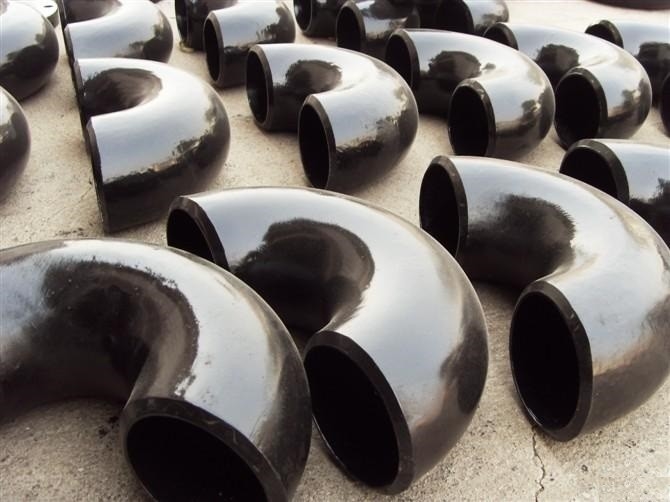

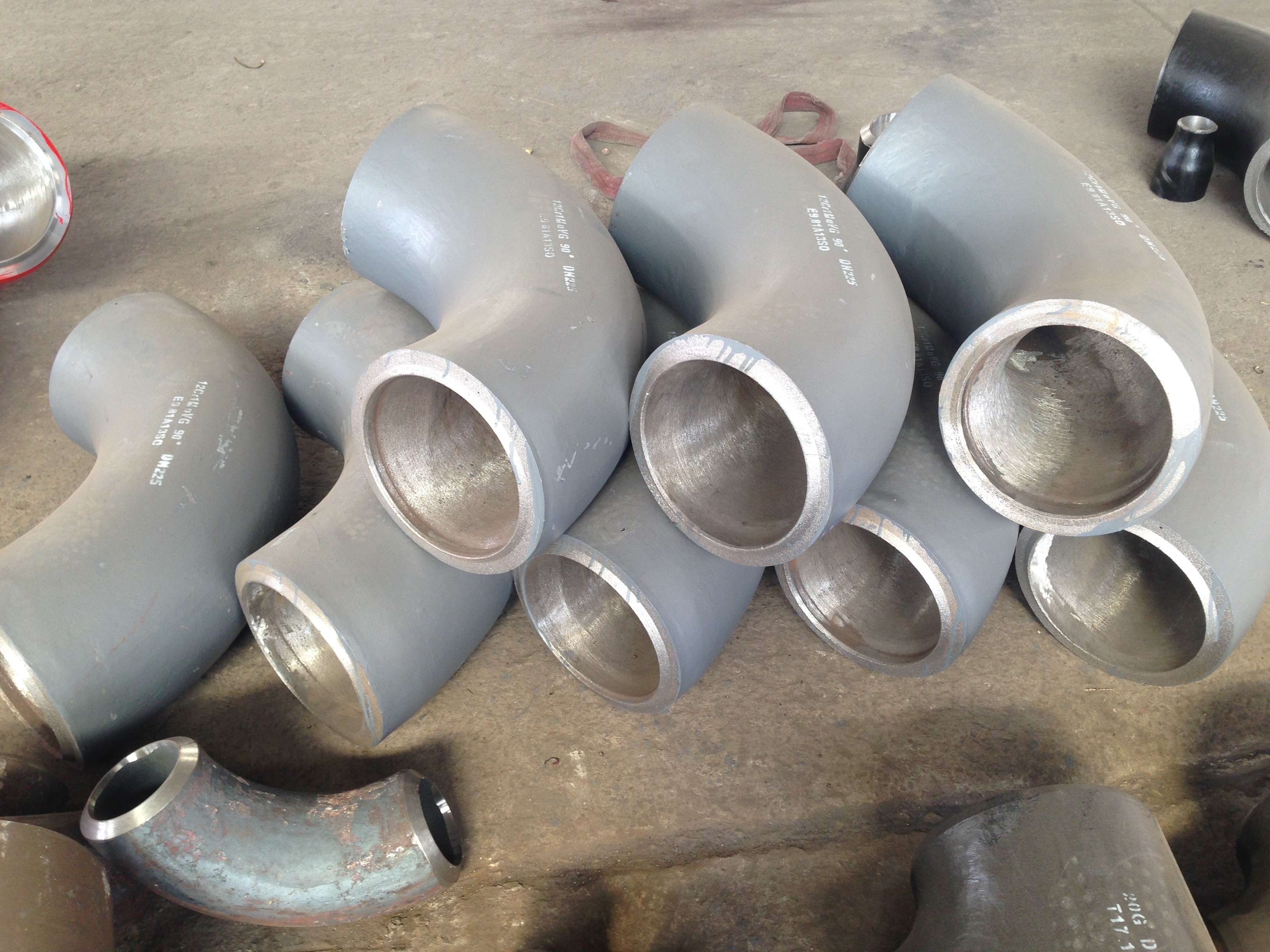

Product Description
O.D. |
Seamless: From 1/2" up to 24" DN15-DN600
|
W.T. |
Sch10, Sch20, Sch30, Sch40, STD, Sch80, XS, Sch120, Sch160, XXS |
Bending Radius (R) |
R=3D 4D 5D 6D 7D 8D 9D 10D. |
Bending angle (θ ) |
15o 30o 45o 60o 90o 135o180o, and also could manufacture according to
|
Straight Length (L) |
The length between two ends general from 300mm-1500mm,
|
Material |
A234-WPB, A420-WPl6, A234-WP11, A234-WP5,
|
Application Standard |
ASTM B16.9, ASTM B16.11, ASTM B16.28, JIS B2311/2220, DIN2617/2616/2615/2391 |
Forming |
Hot formed, cold drawn |
Type |
Seamless and Welded, LR & SR |
End |
Bevel, plain, thread, socket |
Surface Treatment |
1) Sandblasting
|
Application |
Petroleum industry, refinery company, fertilizer industry, power station, shipbuilding, onshore platform. |

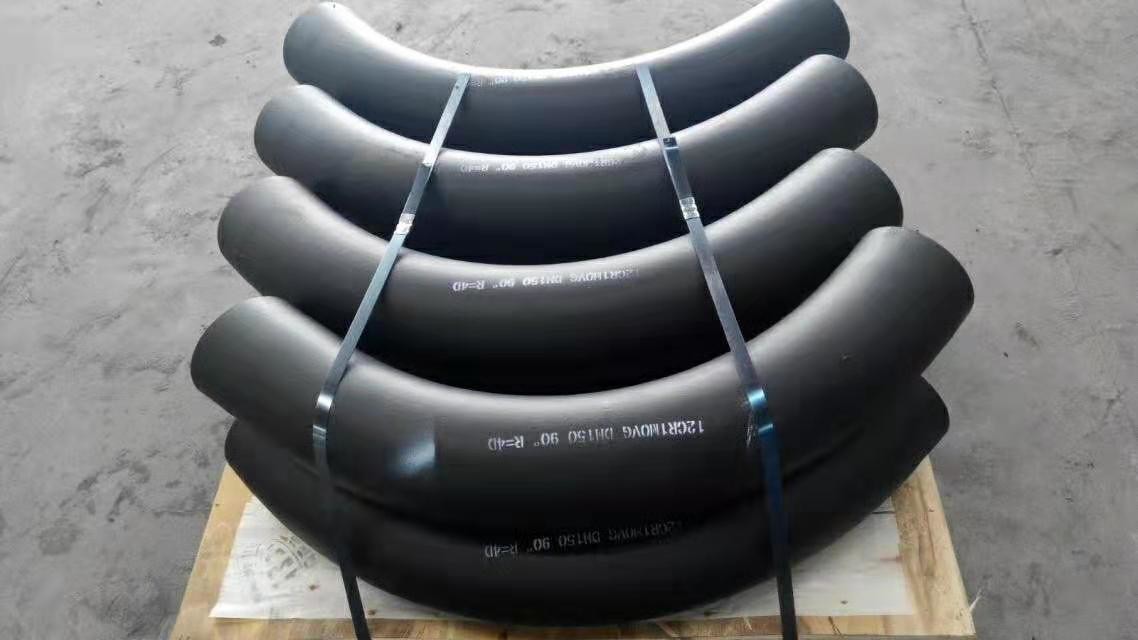

Packing |
1) Seaworthy wooden box for fittings with size from 1/2" ~ 14"
|
Weight |
Weight (kg)=[0.0433(d-t)trθ ]/100000+l(the weight of two ends straight bend) |
MOQ |
10 piece |
Delivery Term |
FOB(30% down payment in advance, the balance before shipment)
|
Delivery time |
15~30 days after receipt of advanced payment |
