24 Inch 5d Pipe Bend , Wp22 Stainless U Bend Sch80 Astm A234 For Connection

Product Details:
Place of Origin: China
Brand Name: Hong Cheng
Model Number: 1/2" TO 72"
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 10-100 pieces US $216/ Piece;>100 pieces US $189/ Piece
Packaging Details: Plywood cases or pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: CHINA Certification:: API CE ISO
Payment Terms:: L/C, T/T Product Name: Alloy Steel Bend
Size:: Seamless From DN15-DN700; Welding:DN200-DN2000 Standard: ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605 /GB-12459/GB-T13401 Etc…
Product Class: 2D 3D 4D 5D 6D, 45°, 90° 180° Material: Stainless Steel,Alloy Steel
Packaging Details:: Standard Package Connection Method: Welding
Face:: Special Coating I.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) Etc. Can Be Provided Application:: Water Disposal, Electric Power, Chemical Engineering, Ship Building, Nuclear Energy, Garbage Disposal, Natural Gas, Petroleum Oil.
High Light:

24 Inch 5d Pipe Bend


Wp22 5d Pipe Bend


Sch80 Stainless U Bend

Product Description

24"Inch Sch80 Astm A234 Wp22 5d Steel Pipe Bend For Pipe Connection Steel Pipe Bend


Bend pipe is a complete set of bending equipment for bending, divided into cold simmer and hot push two processes. No matter which kind of machine equipment and pipeline, most of them are used to bend pipe, mainly for oil, gas, infusion, engineering bridge construction and so on.
During pure bending, the outer arm wall of the neutral layer is thinned by tensile stress 1 under the action of M external force distance, and the inner compression stress. The joint force N1 and N2 make the cross section of the pipe change. On the basis of this factor, the main reasons for the decrease of bend pipe quality are RX and SX. Therefore, in the GBJ235-82, the RX value and the lateral thinning amount under various pressure grades are clearly stipulated. The purpose is to control the value of RX and SX to ensure quality.
As has been said in the front of the 2., the outside of the material is pulled when the bend is bent, and the position of the inner compression neutral shaft is different from the bend method. The neutral axis is 2/3 from the outer wall. Therefore, thin-walled pipe bending, the use of rotary bending method is beneficial.

Effect of lubrication on product quality during molding:

In the traditional pipe bending production process, in order to obtain better surface quality of pipe bending, many methods will be adopted, including: using more advanced and high-grade pipe bending machines, using higher strength molds, or using lubricating products and so on. Using high grade pipe bender and high strength mould, enterprises often need to invest very large funds to complete, only the use of pipe bender lubrication products is relatively low and fast to meet the requirements of enterprise product quality. However, in the traditional production process, the lubricating products of oil-based bends can meet the requirements of the quality of bends in the production of bends, but the non-cleaning property and environmental pollution of oil-based bends are very prominent. In this way, enterprises must use more means to eliminate the impact of oil-based elbow lubrication on the quality of final products. However, the arrival of IRMCO bend pipe grease not only meets the requirements of enterprises for the quality of bend pipe products, but also avoids and reduces the investment increased by enterprises because of the use of oil-based bend pipe lubricating products, and completely optimizes the production process of enterprises.

In the application of traditional oil-based lubricating products, the production efficiency of enterprises is greatly restricted, because the fluidity and extremely difficult cleaning of oil-based lubricating products cause pollution to the production environment and the working conditions of workers. It often takes a lot of money and manpower to clear these pollution. It can reduce or even avoid the above pollution cleaning manpower and material resources, its wash-free and direct welding characteristics, and greatly improve the production efficiency and product quality of the enterprise. However, the amount of IRMCO water base pipe grease can be reduced by 50% to 80% than the traditional lubricating oil, which can save more expenses for enterprises.

Material of ASME B16.9 Bend


Stainless Steel,Alloy Steel pipe bend fittings


ASTM B16.9,ASME B16.49, Customized


A234 WP5/P9/P11/P12/P22/P91

A860 WPHY 52/60/65

A403 WP304/304L/316/316L/321

13CrMo44 10CrMo910 12CrMo195 Cr5Mo 15CrMo 12Cr2Mo


Outside Diameter: 6-2400mm Wall Thickness:1.0-200mm Length: 1-12m


Mill,Painted,Anti-rust Coated,etc


Boiler Pipe,Chemical Fertilize Pipe,Oil/Gas Pipe,Fluid Pipe,Drill Pipe,

Hydraulic Pipe,Structure Pipe,etc

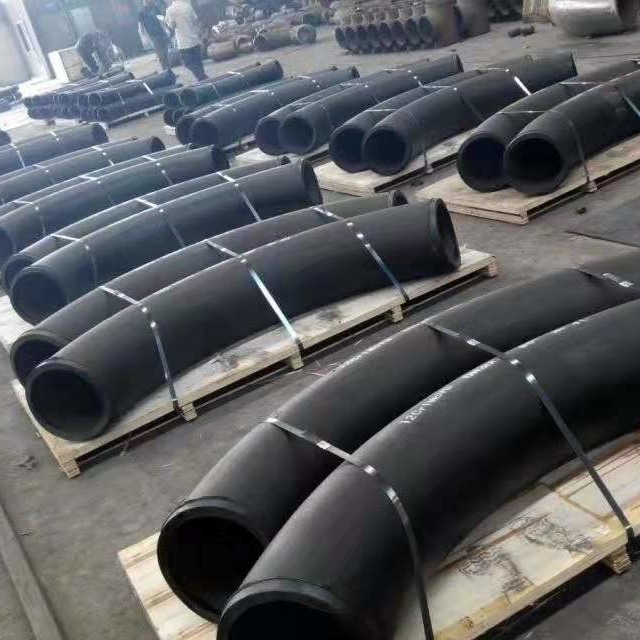

24 Inch 5d Pipe Bend , Wp22 Stainless U Bend Sch80 Astm A234 For Connection 0

24 Inch 5d Pipe Bend , Wp22 Stainless U Bend Sch80 Astm A234 For Connection 1

24 Inch 5d Pipe Bend , Wp22 Stainless U Bend Sch80 Astm A234 For Connection 2

24 Inch 5d Pipe Bend , Wp22 Stainless U Bend Sch80 Astm A234 For Connection 3

The reason why you Choose us

· ISO System

· TUV and BV Audited company .

· Industry experience over 30 years.

· Management Systems-Internal Software

· Finished Product Inventory-More Than 50000 Tons.

· Raw Material inventory -Over 80000 Mertic Tons.

· Shipment of goods -More than 50 countries worldwide.

· We have the most convenient transport and prompt delivery.

· We offer competitive price with best service .

· We have high technical production line with top quality products.

· We have win high reputation based on best quality products.

Choose Hongcheng ,Choose Top Guarantee
