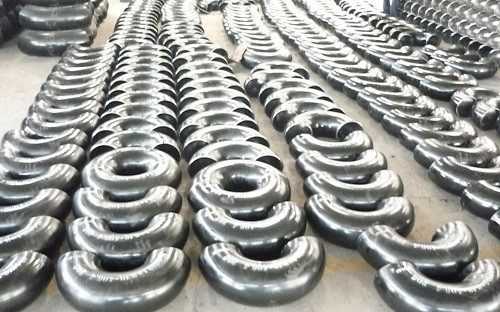

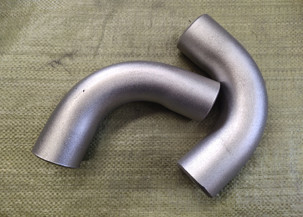

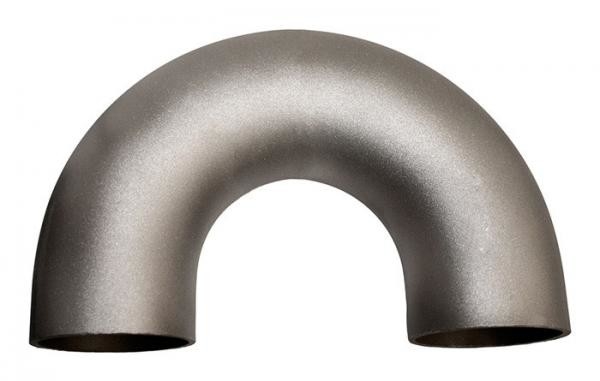

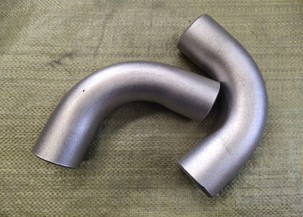

Ansi B16.9 Stainless Steel U Bend , OEM ODM SS Pipe Bend For Oil And Gas

MATERIAL:A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.
BENDING RADIUS (R):R=3D,4D,5D,6D,7D,8D,9D,10D.
BENDING ANGLE (θ):15degree,30degree,45degree,60degree,90degree,135degree&180degree,and also could manufacture according the angles given by the clients.
STRAIGHT LENGTH (L):The length between two ends general from 300mm-1500mm, and also can product according to the clients' requirement to product.
OUTER DIAMETER (D): D≤1800mm
WALL THICKNESS (T):T≤120mm
END BEVEL: according to the bevel of welding pipe fittings construction
WEIGHT:WEIGHT (Kg)=[0.0433(D-T)TRθ]/100000+L(the weight of two ends straight bend)

The bend is used to change the direction of run of pipe.its advantage is can match long distance transition requirements,so it is commonly that bends dimension according to customer design. usually,the bends consist of 3D,5D,7D even 12D series.

Product Name

45' 5D Long Radius Elbow BW SA234 GR. WPB-S Dia 10" SCH.40 ASME B 16.9

Material

45' 5D Long Radius Elbow BW SA234 GR. WPB-S

Size

Size 1/4" to 48" Outside Diameter 13.7 mm to 1219 mm

Standard

ASTM/ANSI.B16.9 ASTM/ANSI B16.28 ASTM /ANSI B16.11 ASTM/ANSI B16.25 BS1965 BS1640DIN 2605 DIN2615 DIN2616 DIN2617 GB 12459-90 GB/T13401-92 GB/T21635 GB/T21634 JIS B2311 JISB2312 JISB2313 JISB2316 ISO 3419-1981 ISO5251-1981

Certificates

API5L, ISO 9001:2008,SGS, BV,CCIC

Wall thickness

SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment

black paint, varnish, oil, galvanized, anti corrosion coatings

Marking

wooden case & pallet

Pipe Ends

Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD)

Pipe Length

1. Single Random Length and double Random Length.

2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length

3. fixed length(5.8m, 6m, 12m)

Packaging

Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.

Test

Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray Test.

Application

liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.

Advantages

1.Reasonable price with excellent quality

2.Abundant stock and prompt delivery

3.Rich supply and export experience, sincere service

4.Reliable forwarder, 2-hour away from port.
