Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | hongcheng |
Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
Model Number: | 1/2" TO 72 " |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 piece |
Packaging Details: | Plywood Cases or Pallets |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 200,000 tons/year |
Detail Information |
|||
Place Of Origin:: | China | Qualification: | API,CE,ISO9001:2008,LRQA,PED ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
---|---|---|---|
Size: | 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200 1/2’’~48’’(Seamless);16’’~72’’(Welded) | Thickness: | STD, DIN, SCH40, SGP, SCH10-XXS(2-160mm) |
Payment Terms: | T/T, L/C At Sight | Packaging Details: | Standard Export Seaworthy Package Or As Required Plastic Bag In Bundle,Wooden Box,etc. |

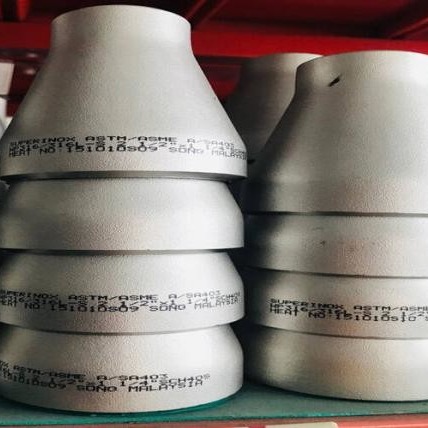

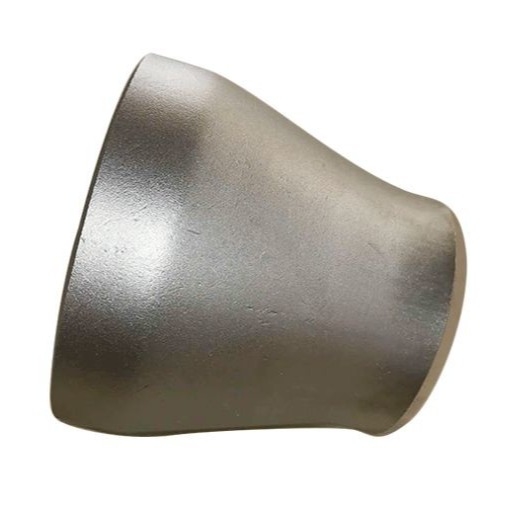

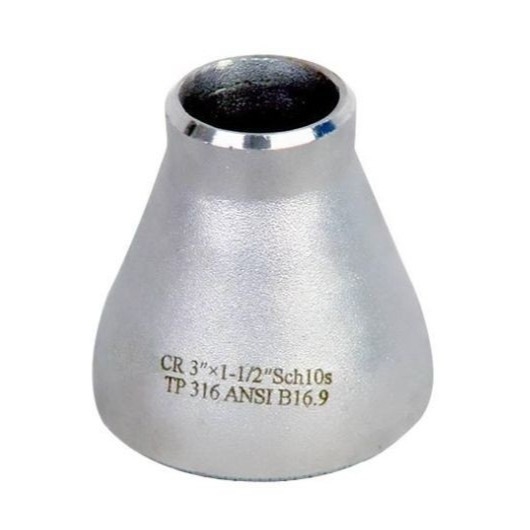

High Light: | Wp5 Pipe Concentric Reducer,Sa234 Pipe Concentric Reducer,API Steel Concentric Reducer |
Product Description
ASTM A234 Alloy Steel pipe fittings
Product Name | ASTM A234 alloy steel pipe fitting (WP51, WP5, WP9, WP11, WP91) | |
Size | 1/2"~20" (Seamless) | |
Thickness | STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc | |
Standard | ANSI B16.9, ASME, JIS, DIN, GOST, GB | |
Material | ASTM | Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6 |
Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc | ||
Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5,,WP9, WP91, |
||
DIN | Carbon Steel:St37.0 , St35.8, St45.8 | |
Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571 | ||
Alloy Steel:1.7335, 1.7380, 1.0488(1.0566) | ||
JIS | Carbon Steel: PG370, PT410 | |
Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc | ||
Alloy Steel: PA22, PA23, P24, PA25, PL380 | ||
GB | #10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo | |
Ends | Bevel end, butt weld | |
Applications |
Petrochemical industry |
|
Packing |
Seaworthy Packing |
|
Advantage |
- Provide Samples |
ASTM A234 is the standard specification for pipe fittings of wrought carbon and alloy steel for high temperature service.
This specification covers wroght carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ANSI B16.9, ANSI B16.11, ANSI B16.28, MSS SP-79 and MSS SP-95.
The fittings are for use at moderate and elevated temperature.
Hebei Hongcheng Pipe Industry Co., Ltd.can supply all the four steel grades covered by ASTM A234: WP5,WP9,WP11, WP91
Chemical Composition:
Chemical Composition of ASTM A234 | ||||
Element | WP5 | WP9 | WP11 | WP91 |
C | Max 0.15 | Max .15 | 0.05 - 0.15 | 0.08 - 0.12 |
Mn | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 |
P | Max 0.040 | Max 0.030 | Max 0.030 | Max 0.020 |
S | Max 0.030 | Max 0.030 | Max 0.030 | Max 0.010 |
Si | Max 0.50 | 0.25 - 1.00 | 0.50 - 1.00 | 0.20 - 0.50 |
Ni | - | - | - | Max 0.40 |
Cr | 4.0 - 6.0 | 8.0 - 10.0 | 1.00 - 1.50 | 8.0 - 9.5 |
Mo | 0.44 - 0.65 | 0.90 - 1.10 | 0.44 - 0.65 | 0.85 - 1.05 |
Cu | - | - | - | - |
Cb | - | - | - | 0.060 - 0.10 |
V | - | - | - | 0.18 - 0.25 |
Mechanical Property:
ASTM A234/A234M | Tensile strength, min | Yield Strength, min | Elongation,%, min | |||
Grade | Ksi | Mpa | Ksi | Mpa | Longitudinal | Transverse |
WP5 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
WP9 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
WP11 | 60 - 85 | 415 - 585 | 40 | 275 | 22 | 14 |
WP91 | 85 - 110 | 585 - 760 | 60 | 415 | 20 | - |
