Hebei Hongcheng Pipe Fittings Co., Ltd.

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 18-1219mm
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: Negotiable
Packaging Details: Standard export seaworthy package,or as required
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Certification: LR,BV,SGS,BIS,DNV,CRN,ABS,TUV, Model Number: ASTM A335 P11,ASTM A335 P22, ASTM A335 P5, ASTM A335 P9, ASTM A335 P91
Product Name: P92 Alloy Steel Seamless Tube Length: 12m, 11.8m, 6m, 5.8m Or As Required
Packaging Details: WOODCASE Or PLATE
High Light:

ABS Seamless High Pressure Boiler Tube

,

TUV P92 High Pressure Boiler Tube

,

A335 ABS High Pressure Seamless Pipe

Product Description

Alloy Seamless Steel Astm A335 P92 High Pressure Boiler Pipes Astm A335 P92 Seamless Alloy Steel Pipe

ASTM A335 P92 is the part of ASTM A335, The pipe shall be suitable for bending, flanging, and similar forming operations, and for fusion welding. The steel material shall conform to chemical composition, tensile property, and hardness requirements.

ASTM A335 P92 high pressure semaless boiler pipe, The range of ASTM A335 P92 seamless alloy steel pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practice.

Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.

The range of ASTM A335 P92 pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practice.

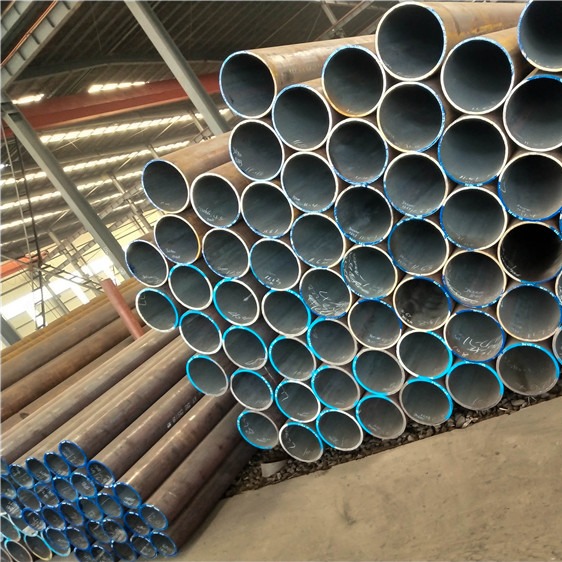

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification 0
The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

  • Outer Dimensions: 19.05mm – 114.3mm

  • Wall Thickness: 2.0mm – 14 mm

  • Length: max 16000mm

Steel grade: ASTM A335 P92

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Chemical Requirements of ASTM A335 P92

UNS Designation

K92460

Carbon

0.07–0.13

Manganese

0.30–0.60

Phosphorus(max)

0.02

Sulfur(max)

0.01

Silicon

0.50 max

Chromium

8.50–9.50

Molybdenum

0.30–0.60

V

0.15-0.25

N

0.03-0.07

Ni (max)

0.4

Al(max)

0.02

Cb

0.04-0.09

W

1.5-2.00

B

0.001-0.006

Ti (max)

0.01

Zr(max)

0.01

Mechanical Properties of ASTM A335 P92

Properties

Data

Tensile strength, min, (MPa)

620

Yield strength, min, (MPa)

440

Elongation, min, (%), L/T

20/…

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

A / N+T

N+T / Q+T

N+T

Mechanical Tests Specified

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test

For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.

For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

Notes for Bend Test:

For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.

Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.

The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.

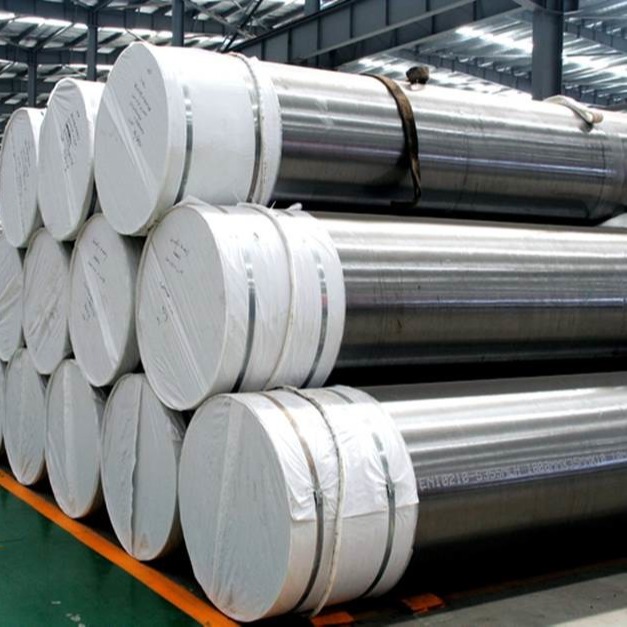

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification 1

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification 2

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification 3

Seamless High Pressure Boiler Tube Pipe Astm A335 P92 ABS TUV Certification 4

FAQ

Q1: What is your terms of payment?
A: 30% T/T in advance, the balance 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: EXW, FOB, CIF, CFR, DDU
Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the samples?
A: yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
Q7: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by Lenser piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
