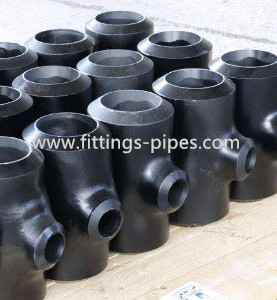

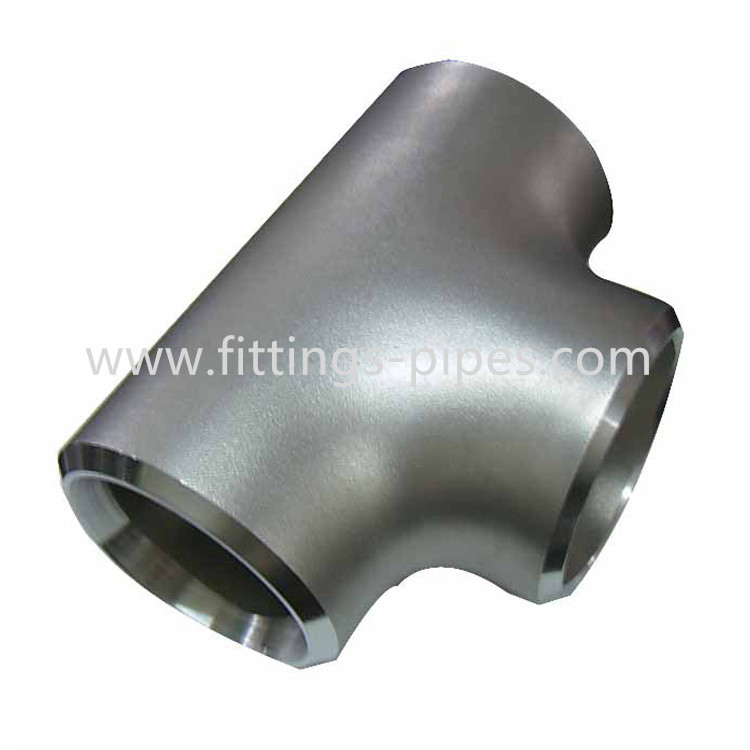

Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60

Product Details:
Place of Origin: China
Brand Name: hongcheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity: 0.5Ton
Price: Negotiation
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000Tons per year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin :: CHINA Variety: Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8
Connection:: Soldering Material:: Stainless Steel
Manufacturer: Type End Caps, Elbows, Tees, Reducers, Elbows, Stub Ends Certification :: ISO, API, CE
Surface Treatment: Rolling / Sandblasting Supply Ability :: 10000 PC Per Month
High Light:

astm stainless steel reducing tee

,

2" stainless steel reducing tee

,

sch60 stainless reducing tee

Product Description

Astm A312 TP316 TP316L Stainless Steel Fitting Reducing Fitting 2"~12" Sch60

ASME SA 234 Gr WP5 Equal and Reduced Tee or Unequal Tee

T-shirts come in 2 forms - equal or reduced t-shirts. While they both resemble the letter T, the difference between them is the way they connect. In ASTM A234 WP5 isopass, the diameter of the connecting branch is the same as the vertical or in-pipe pipe. In the case of reduced or unequal tees, branch pipes have a smaller diameter compared to vertical pipes.

Fittings Tee

MaterialStainless Steel: SS304, SS316, SS304L, SS316L, SS321, SS310
TypeElbow, Tee, Reducer, Cap, Stud-Ends, Cross
ScheduleSCH5S, SCH10S, SCH20S, SCH40S, SCH80S, etc
StandardDesign: ASME B16.9, MSS-SP-43
Size1/2" to 48"
ConnectionButt Weld End as per ASME B16.9
ApplicationFor Water, Oil and Gas Industrial
CertificateCE / ISO / SGS

Dimension ofPipe Fittings Tee


NPSO.D.Center to EndCenter to End
DCM
1/221.32525
3/426.72929
133.43838
42.24848
48.35757
260.36464
737676
388.98686
101.69595
4114.3105105
5141.3124124
6168.3143143
8219.1178178
10273216216
12323.8254254
14355.6279279
16406.4305305
18457343343
20508381381
22559419419
24610432432
26660495495
28711521521
30762559559
32813597597
34864635635
36914673673
38965711711
401016749749
421067762711
441118813762
461168851800
481219889838


Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60 0
Specification

TypeTee
Size1/2"-48"
WTSCH10-SCH160
StandardANSI B16.9, ASME, GB, DIN, JIS
MaterialA234 WPB, A420 WPL6,MSS SP75WPHY52-WPHY70,A234 WP5, WP9, WP11,
 WP12, WP22, WP91, A403 WP304(H),WP304L,WP316(H),WP316L,WP321,301
PackagingCustomized packing available (coating, end-beveling, cap etc.)
ApplicationPetroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction etc
OthersSpecial design available according to your request






Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60 1

Standards :ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Size :1/2"NB TO 48"NB IN
Thickness :Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type :Seamless / ERW / Welded / Fabricated
Form :Equal Tee, Unequal Tee, Barred Tee, Lateral Tee, Reducing Tee.



Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60 2

Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60 3




Astm A312 Tp316 Tp316l Stainless Steel Reducing Tee 2"-12" Sch60 4
FAQ:

  1. Are you a factory or trading company?
  We are a factory.we also have cooperated factory doing other steel business.
  2. How can I get a quotation from you ?
  You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
  And you can also find our contact information on contact page.
  3.Can I get samples before order ?
  Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
  4. what is your delivery time ?
  The time of delivery is usually around 20 days(1*20FT as usual).
  We can send out in 2 days, if it has stock.
  5.What is your payment terms?
  Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
  6.How does your factory do regarding quality control?
  Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
  And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
  we will make the last test to pick up the unqualified products
