Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | hongcheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 4" TO 24 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 0.5Ton |
| Price: | Negotiation |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100000Tons per year |
|
Detail Information |
|||
| Place Of Origin :: | CHINA | Certification :: | ISO, API, CE |
|---|---|---|---|
| Connection:: | Soldering | Material:: | Stainless Steel |
| Manufacturer: | Type End Caps, Elbows, Tees, Reducers, Elbows, Stub Ends | Variety: | Sch5, Sch10, Sch20, Sch30, Standard, Sch40, Sch60, Xs, Sch8 |
| Surface Treatment: | Rolling / Sandblasting | Supply Ability :: | 10000 PC Per Month |
| Highlight: | sandblasting stainless steel pipe fittings,p12 stainless steel pipe fittings,3 inch stainless steel pipe fittings |
||
Product Description

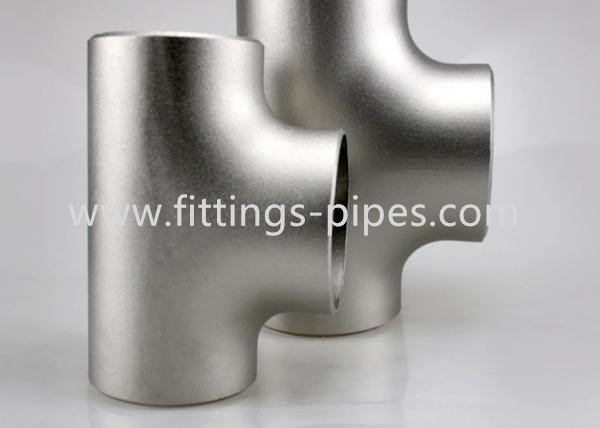

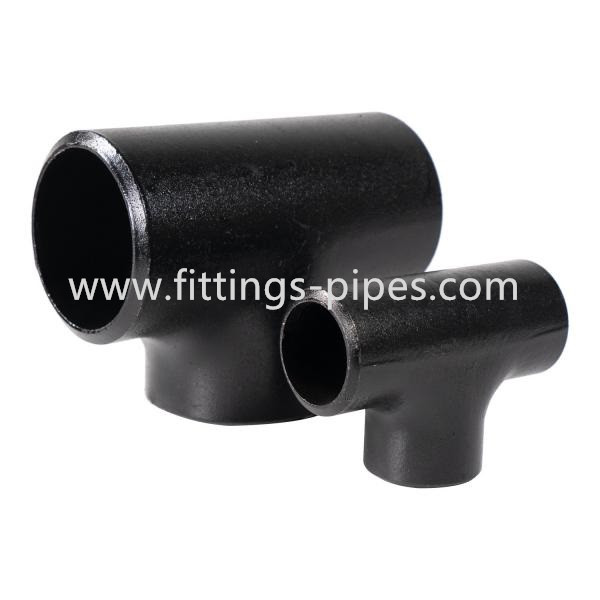

T-shirts come in 2 forms - equal or reduced t-shirts. While they both resemble the letter T, the difference between them is the way they connect. In ASTM A234 WP5 isopass, the diameter of the connecting branch is the same as the vertical or in-pipe pipe. In the case of reduced or unequal tees, branch pipes have a smaller diameter compared to vertical pipes.
Standard
|
Nominal Pipe Size |
Outside Diameter |
Inside Diameter |
Wall Thickness T |
Center To End C |
Center To End M |
Pipe Schedule |
Weight Pounds |
| 2-Jan | 0.84 | 0.622 | 0.109 | 1 | 1 | 40 | 0.35 |
| 4-Mar | 1.05 | 0.824 | 0.113 | 1.12 | 1.12 | 40 | 0.5 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 1.5 | 40 | 0.75 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.88 | 1.88 | 40 | 1.3 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 2.25 | 2.25 | 40 | 1.9 |
| 2 | 2.38 | 2.067 | 0.154 | 2.5 | 2.5 | 40 | 3.2 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 3 | 3 | 40 | 5.8 |
| 3 | 3.5 | 3.068 | 0.216 | 3.38 | 3.38 | 40 | 7.2 |
| 3 1/2 | 4 | 3.548 | 0.226 | 3.75 | 3.75 | 40 | 9.5 |
| 4 | 4.5 | 4.026 | 0.237 | 4.12 | 4.12 | 40 | 12.7 |
| 5 | 5.56 | 5.047 | 0.258 | 4.88 | 4.88 | 40 | 20.8 |
| 6 | 6.62 | 6.065 | 0.28 | 5.62 | 5.62 | 40 | 33.1 |
| 8 | 8.62 | 7.981 | 0.322 | 7 | 7 | 40 | 56.5 |
| 10 | 10.75 | 10.02 | 0.365 | 8.5 | 8.5 | 40 | 90.9 |
| 12 | 12.75 | 12 | 0.375 | 10 | 10 | * | 136 |
| 14 | 14 | 13.25 | 0.375 | 11 | 11 | 30 | 162 |
| 16 | 16 | 15.25 | 0.375 | 12 | 12 | 30 | 206 |
| 18 | 18 | 17.25 | 0.375 | 13.5 | 13.5 | * | 272 |
| 20 | 20 | 19.25 | 0.375 | 15 | 15 | 20 | 350 |
| 24 | 24 | 23.25 | 0.375 | 17 | 17 | 20 | 508 |
| 30 | 30 | 29.24 | 0.38 | 22 | 22 | * | 835 |
| 36 | 36 | 35.24 | 0.38 | 26.5 | 26.5 | * | 1,294 |
| 42 | 42 | 41.24 | 0.38 | 30 | 28 | * | 1,495 |
| 48 | 48 | 47.24 | 0.38 | 35 | 33 | * | 2,300 |
ASME B16.9 S32205 Duplex Pipe Fittings Dimensions
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
| NPS | O.D. at Bevel (1), (2) | I.D. at End | Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| (1), (3), (4) | ||||||||
| ½ to 2½ | 0.06 | 0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| -0.03 | ||||||||
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| -0.06 | ||||||||
| 10 to 18 | 0.16 | 0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| -0.12 | ||||||||
| 20 to 24 | 0.25 | 0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| -0.19 | ||||||||
| 26 to 30 | 0.25 | 0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| -0.19 | ||||||||
| 32 to 48 | 0.25 | 0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
| Standards : | ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Size : | 1/2"NB TO 48"NB IN |
| Thickness : | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Type : | Seamless / ERW / Welded / Fabricated |
| Form : | Equal Tee, Unequal Tee, Barred Tee, Lateral Tee, Reducing Tee. |
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
