Hebei Hongcheng Pipe Fittings Co., Ltd.

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange

Product Details:
Place of Origin: Yanshan, Hebei, China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details: Plywood Cases or Pallets
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Brand Name:: HONGCHENG Payment Terms:: T/T, L/C, Western Union
Surfacing :: RF , FF , RTJ Pressure :: Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K
Packaging Details :: Wooden Box, Pallet Or According To Customer Requirements Material:: F304 F304L F316 F316L 31803 32750 347H
Standard:: DIN,ANSI,ASME B16.11,ASTM Application:: Suitable For Pipe Lines Connect Of Water,gas,oil Etc
Tolerances :: According To The Specification Or Customer’s Request And Drawings Quality Requirement:: Mill Test Certificate Will Be Supplied With Shipment , Third Part Inspection Is Acceptable
High Light:

B16.5 Stainless Steel Flanges

,

Astm A182 Stainless Steel Flanges

,

Stainless Long Welding Neck Flange

Product Description

Stainless Steel Flanges ansi B16.5 150 Rf Astm A182 F304/304l/F316/316l Forged Long Welding Neck Flange

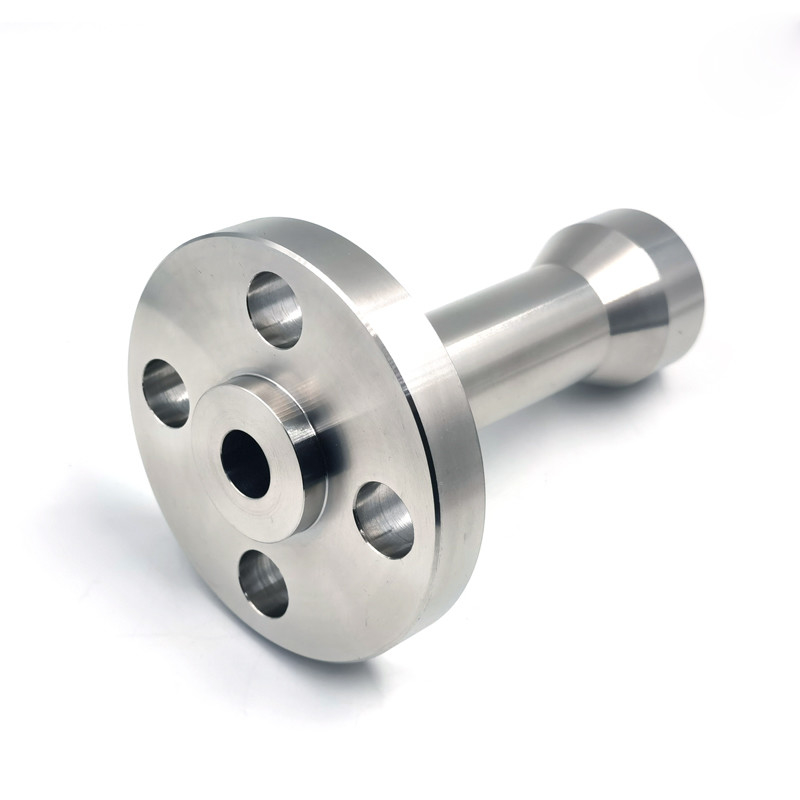

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 0

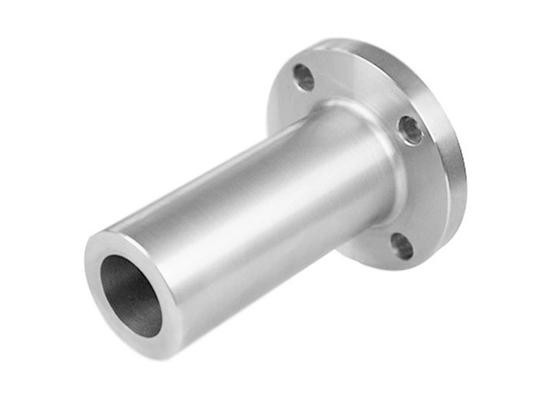

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 1

Product Description

Product Name Steel Flange
Types Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange
Face Finish RF,FF,RTJ,TF,GF
Standard ANSI ANSI B16.5 ASME B16.47 series A/B
DIN DIN 2631 2573 2527 2565 2641
GOST GOST 12820-80,GOST 12821-80,Gost Blind
EN EN1092-1:2002
JIS JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210
BS BS4504,BS10 Table D/E
UNI UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
SABS SABS 1123
Material ANSI CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80
DIN CS RST37.2;S235JR SS 304/304L,316/316L
GOST CS CT20;16MN;SS 304/304L,316/316L
EN CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS CS SS400,SF440,SS 304/304L, 316/316L
BS CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
UNI CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
SABS CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
Pressure ANSI Class 150, 300, 600, 900, 1500 2500lbs
DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST PN6,PN10,PN16,PN25
EN PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS 1K,2K,5K,10K,16K,20K,30K,40K
BS PN6,PN10,PN16,PN25,PN40,PN64,PN100
UNI PN6,PN10,PN16,PN25,PN40
SABS 600KPA,1000,1600,2500,4000
Size ANSI 1/2” – 60”
DIN DN15-DN2000
GOST DN10-DN1600
EN DN15-DN2000
JIS 15A-1500A
BS DN15-DN2000
UNI DN10-DN2000
SABS DN10-DN600
Coating varnish, yellow paint, anti-rust oil, galvanizing etc
Usage

Used for the connection of all kinds of pipeline.

to convey the water, steam, air, gas and oil

Package Wooden cases/pallets
Delivery Within 30 days
Certificate ISO9001:2008

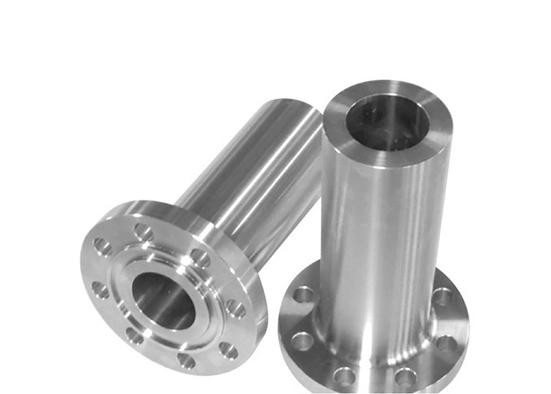

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 2



Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 3

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 4

Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 5



Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 6



Ansi B16.5 Stainless Steel Flanges , Astm A182 Long Welding Neck Flange 7
