Product Details:
|
|
| Place of Origin: | Yanshan, Hebei, China |
|---|---|
| Brand Name: | HongCheng |
| Certification: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Model Number: | 1/2" TO 120 " |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | 10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece |
| Packaging Details: | Plywood Cases or Pallets |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 2 Million Ton/Year |
|
Detail Information |
|||
| Brand Name:: | HONGCHENG | Payment Terms:: | T/T, L/C, Western Union |
|---|---|---|---|
| Commodity :: | Welding Neck , Blind , Slip On , Lap Joint , Socket | OD: | 15mm-6000mm |
| Pressure :: | Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K | Standard :: | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc. |
| Material:: | F304 F304L F316 F316L 31803 32750 347H | Supply Ability :: | 100000 Piece/Pper Week Forged Pipe Fittings |

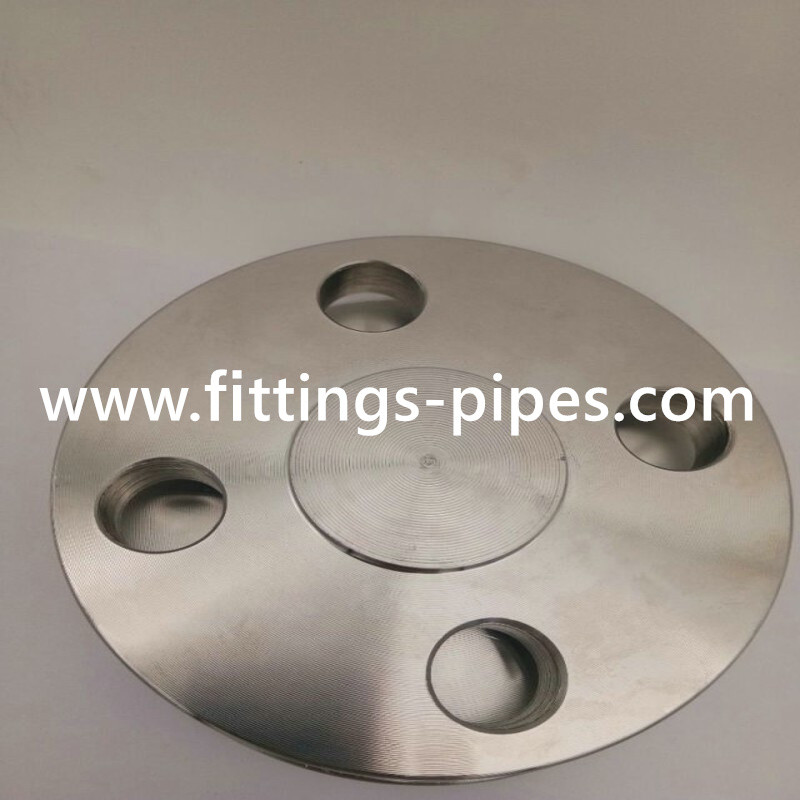

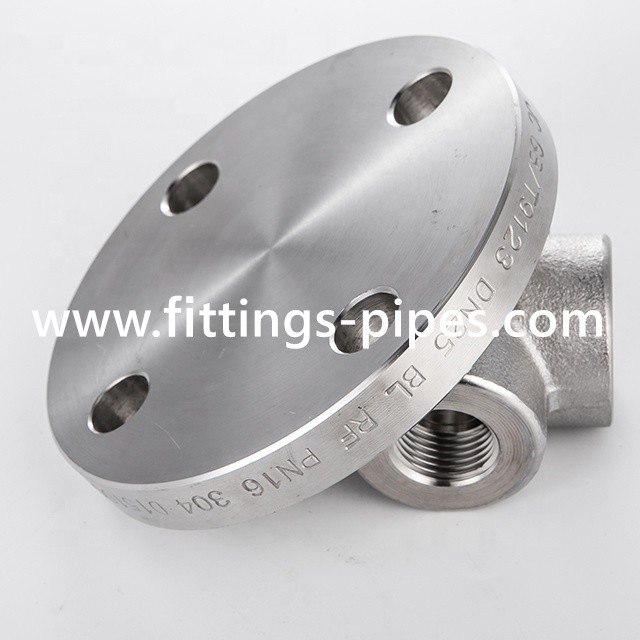

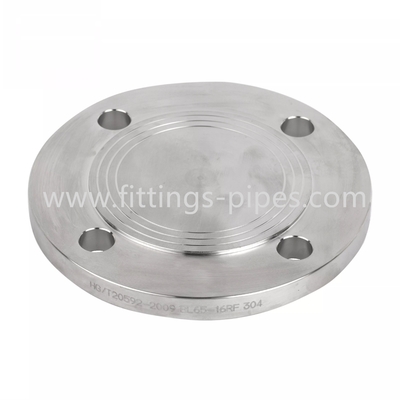

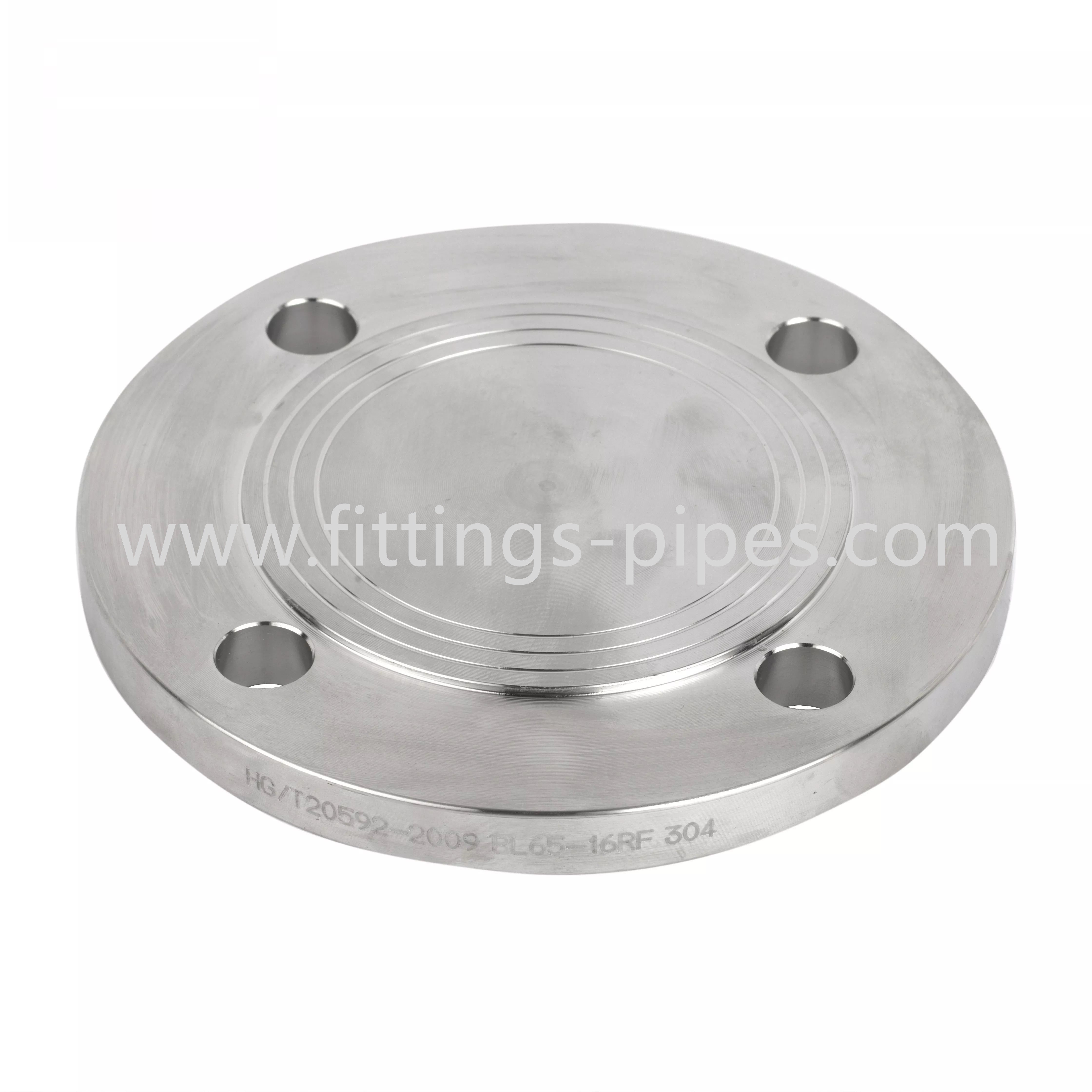

| Highlight: | Dn150 Stainless Steel Blind Flange,347H Stainless Steel Blind Flange,F316l Stainless Blind Flange |
||
Product Description
Iterm |
Welding Neck Flange,Plate Flange,Slip on flange,Blind Flange,Threaded Flange,Socket Welding Flange |
|
Standard |
ANSI |
ANSI B16.5 ASME B16.47 series A/B |
DIN |
DIN |
|
GOST |
GOST 12820-80/GOST 12821-80/GOST 12822-80/ |
|
EN |
EN1092-1:2002 |
|
JIS |
JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 |
|
BS |
BS4504 BS10 Table D/E |
|
Material |
ANSI |
CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
DIN |
CS RST37.2;S235JR SS 304/304L,316/316L |
|
GOST |
CS CT20;16MN;SS 304/304L,316/316L |
|
EN |
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L |
|
JIS |
SS400,SF440 SS 304/304L, 316/316L |
|
BS |
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L |
|
Pressure |
ANSI |
Class 150, 300, 600, 900, 1500 2500lbs |
DIN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
|
GOST |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
|
EN |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
|
JIS |
1K,2K,5K,10K,16K,20K,30K,40K |
|
BS |
PN6,PN10,PN16,PN25,PN40,PN64,PN100 |
|
Size |
ANSI |
1/2” – 60” |
DIN |
DN15-DN2000 |
|
GOST |
DN15-DN1600 |
|
EN |
DN15-DN2000 |
|
JIS |
15A-1500A |
|
BS |
DN15-DN2000 |
|
Coating |
varnish, yellow paint, anti-rust oil, galvanizing etc |
|
Usage |
Used for the connection of all kinds of pipeline. |
|
Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. |
||
