Hebei Hongcheng Pipe Fittings Co., Ltd.

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree

Product Details:
Place of Origin: China
Brand Name: HongCheng
Certification: PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number: 1/2" TO 44 "
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: 10-50 pieces US $18.6 / Piece;>50 pieces US $ 15.4/ Piece
Packaging Details: In Wooden Cases or Customers Requirements
Delivery Time: 7-15 work days
Payment Terms: L/C, D/P, T/T
Supply Ability: 2 Million Ton/Year
  • Detail Information
  • Product Description

Detail Information

Place Of Origin:: Hebei, China Certificate:: API, CCS,and ISO9001:2008
Payment:: T/T: 30% In Advance,the Balance Before Shipment. L/C: 30%T/T In Advance,the Balance Upon B/L. Size:: Seamless 1/2" To 24" Welded To 72"(DN8~DN1000)
Material:: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Connection:: Welding
Process Method:: Polished, Cold Drawn, Annealed With Nitrogen Protection, Ultrasonic,automatic Shape Etc Surface Treatment: Sand Rolling, Sand Blasting ,Acid Cleaning.
Packing:: Wooden Case, Pallet Or As Customers' Requirement Applications:: Petroleum,chemical,power,gas,metallurgy, Shipbuilding, Construction, Etc
High Light:

Seamless Stainless Steel Bend Pipe

,

45degree Stainless Steel Bend Pipe

,

90Degree ss bend pipe

Product Description

Stainless Steel Pipe Fittings Astm A234 B16.9 45degree 60degree 90degree 3d 5d 7d 10d Seamless Stainless Steel Bend Pipe

1. Elbow(45deg, 90deg and 180deg/LR and SR)

2. Size: 1/2"-36" can be seamless, 5"-110" can be welded
3. Thickness: Sch20, Std, xs, xxs, sch10, sch20, sch30, sch40, sch60, sch80, sch160, etc.
4. Carbon steel: A234 wpb, st37.2, st35.8, API 5L GR B, API 5L X42, API 5L X52, API 5L X60, API 5L X65, API 5L X70 and so on.
5. Surface:
Black painting or color painting for carbon steel and alloy steel fittings
6. 8" and bellow size will packed by plywood case.
10" and above size will packed by plywood pallet
7. Standard: ANSI B16.9, MSS SP 75, EN10253-2, JIS B2313
8. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada,
Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
9. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 0


Name

elbow(90deg/45deg/180degLR/SR)

Type

BUTT WELDED PIPE FITTINGS

FORGED PIPE FITTINGS (SW/Thread)

Size

1/2"-36" seamless, 8"-110" welded

Wall thickness

STD, XS, XXS, SCH10,SCH20,SCH30,SCH40, SCH60, SCH80, SCH160

2000#,3000#, 6000#, 9000#

Applicable
standard

ASME, ASTM, MSS, JIS, DIN, EN,




Material

Stainless steel: A403 WP304, A403 WP304L,A403 WP316, A403 WP316L, A403 WP321
Carbon steel: A234WPB, A420 WPL6
Alloy steel: WP11, WP22, WP12, WP5, WP9, WP91

Stainless steel: A182 F304, A182F304L,A182 F316, A182 F316L, A182 F321, A182 317H, A182316Ti, F53,F51
Carbon steel: A105, A350LF2
Alloy steel: A182 F11, A182F22, A182F12,A182 F5, A182F91, A182 F9

Delivery Time

Usually Within 30 days after the order date or as your requirement

Payment

L/C at sight, T/T

Application rang

such as oil, chemical industry, water conservancy, electric power, boiler, machinery,metallurgy, sanitary construction etc

Packaging

Wooden cases, wooden pallet plastic bag or as per customers requirement

Others

The belief we are following is " Marketing our living by quality and developing our career by credit standing"

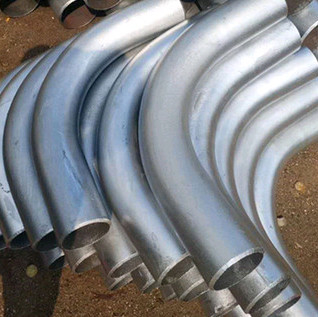

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 1

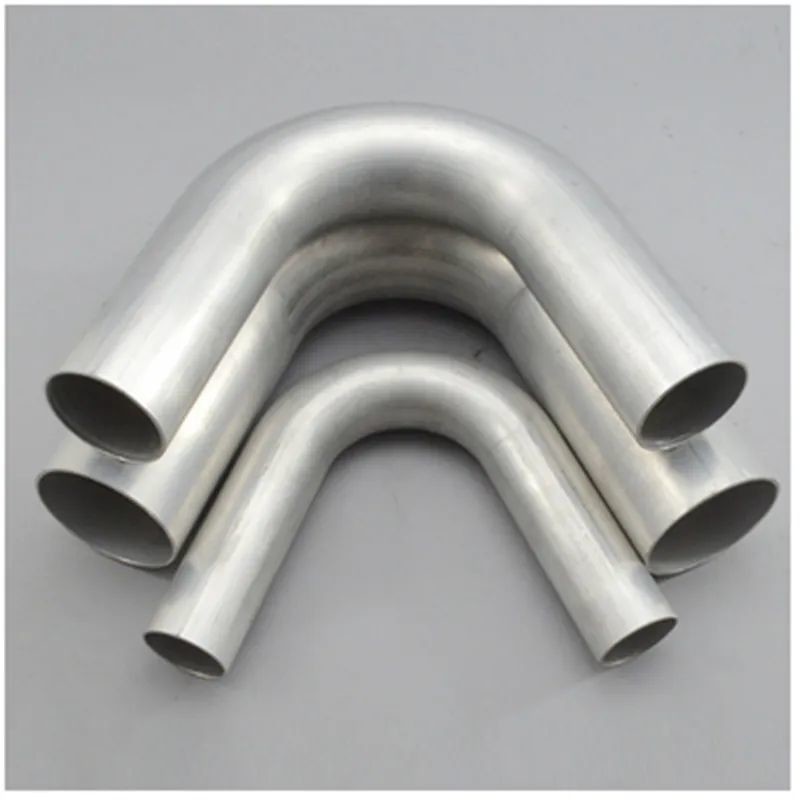

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 2

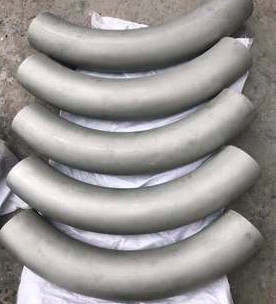

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 3

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 4

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 5

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 6

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 7

Seamless Stainless Steel Bend Pipe 45 Degree 60 Degree 90 Degree 8
