Detail Information
Product Description

Detail Information
Place Of Origin::	Hebei, China	Certificate::	API, CCS,and ISO9001:2008
Size::	Seamless 1/2" To 24" Welded To 72"(DN8~DN1000)	Material::	ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L
Process Method::	Polished, Cold Drawn, Annealed With Nitrogen Protection, Ultrasonic,automatic Shape Etc	Packing::	Wooden Case, Pallet Or As Customers' Requirement
Inspection:	Factory In-House Self Check Or Third Party Inspect	Supply Ability::	5,0000pcs Per Month
High Light:	Asme B16.9 Stainless Steel Pipe Fittings , Buttweld Stainless Steel Pipe Fittings , 24 Inch Stainless Steel Buttweld Caps

Product Description

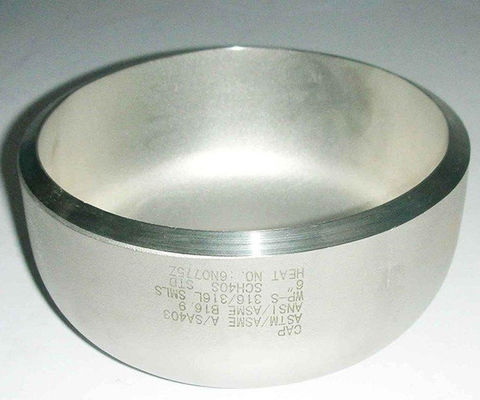

Stainless Steel Pipe Fittings Asme B16.9 1-24 Inch Stainless Steel Pipe Cap Butt Welded Pipe Cap Fitting

ASME Stainless Steel Pipe Cap 1-48 Inch

The introduction of the stainless steel pipe fitting caps:

In the piping system,the direction of the line pipe bend is to be changed.Elbow materials:stainless steel, alloy steel, cast iron can be calcined cast iron, carbon steel, nonferrous metal and plastic, etc.

1, Stainless steel, ASTM/ASME A403 WP 304-304 - l - 304 - h - 304 ln - 304 n ASTM/ASME A403 WP 316-316 l - 316 - h - 316 ln - 316 - n - 316 ti ASTM/ASME A403 WP 321-321 - h ASTM/ASME A403 WP 347-347 - h

2, Carbon steel, ASTM/ASME A234 WPB, WPC

3, Alloy: ASTM/ASME A234 WP 11-12-1 - WP WP WP 22 - WP 91-5 - WP WP911

4, Low temperature steel, ASTM/ASME A402 WPL3 - WPL 6

5, High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-65

6, Cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon luo drain, PVC, PPR, RFPP (reinforced polypropylene), etc.

stainless steel pipe fitting plastic caps won't produce corrosion, pitting, corrosion or wear and tear.

1, Method to make division can be divided into pushing, pressing, forging, casting, etc.

2, By manufacturing standards can be divided into the national standard, the electric standard, water standard, American standard, Germany standard, Japanese standard, the standard and so on.

3, To differentiate material of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon luo drain, PPC, etc

4, According to the radius of curvature points: can be divided into long radius elbow and short radius elbow

The purpose of the elbow:connect two of the same or different nominal diameter pipe,make the line for turning angle.Due to the elbow with good comprehensive performance,so it is widely used in chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power, aerospace, shipbuilding and other infrastructure projects.

stainless steel pipe fitting caps:

Connect two of the same or different nominal diameter pipe,make the line for turning angle.Due to the elbow with good comprehensive performance,so it is widely used in chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power, aerospace, shipbuilding and other infrastructure projects.

The specification of stainless steel pipe fitting plastic caps:

Name		stainless steel pipe fitting plastic caps
Products		Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange
Size		Seamless(SMLS) : 1/2"-24" ,DN15-DN600 Butt Welded (seam) :24”-72",DN600-DN1800
Type		LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Thickness		SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standard		ASME,ANSI B16.9;
		DIN2605,2615,2616,2617,
		JIS B2311 ,2312,2313;
		EN 10253-1 ,EN 10253-2
Material	ASTM	Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.
		Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.)
		Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3
	DIN	Carbon steel:St37.0,St35.8,St45.8
		Stainless steel:1.4301,1.4306,1.4401,1.4571
		Alloy steel:1.7335,1.7380,1.0488(1.0566)
	JIS	Carbon steel:PG370,PT410
		Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
		Alloy steel:PA22,PA23,PA24,PA25,PL380
	GB	10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo
Surface treatment		Transparent oil, rust-proof black oil or hot galvanized
Packing		In wooded cases or pallets, or as for clients' requirements
Certification		API and ISO 9001:2000
Payment Term		T/T ,West Union,
Trade Term		FOB,CIF,CFR(30% down payment in advance, balance should before shipment)

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 0

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 1

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 2

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 3

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 4

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 5

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 6

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch 7

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HongCheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 48"
Payment & Shipping Terms:
Minimum Order Quantity:	10PCS
Price:	10-50 pieces US $18.6 / Piece;>50 pieces US $ 15.4/ Piece
Packaging Details:	In Wooden Cases or Customers Requirements
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Asme B16.9 Stainless Steel Pipe Fittings Cap Buttweld 24 Inch
