Product Details:
Place of Origin:	Yanshan, Hebei, China
Brand Name:	HongCheng
Certification:	PED、ABS、BV、DNV、GL、LR、SGS、IEI
Model Number:	1/2" TO 120 "
Payment & Shipping Terms:
Minimum Order Quantity:	1pcs
Price:	10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Detail Information
Download:	Depending On Quantity	Size ::	1/2" - 120"
Pressure ::	Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K	Standard ::	ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc.
Packaging Details ::	Wooden Box, Pallet Or According To Customer Requirements	Application::	Petroleum, Chemical, Machinery, Electric Power, Shipbuilding,
High Light:	Astm B16.47 Nickel Alloy Flanges , Uns B564 Nickel Alloy Flanges

Thickness						Drilling						Weight
Nom Size	OD	Weld Neck	Blind	OD of RF	Dia at Base	Bore	LTH	Dia Bevel	Bolt Circle	Bolt Length	Hole Dia	# of Holes	Weld Neck	Blind
	O	C	C	R	X	B	Y	A		-1	-2
26	33.5	3.5	3.5	28	27.12	To Be Specified By Purc- harser	5.88	26	30.75	11.25	1.5	28	360	874
28	36	3.75	3.75	30	29.12		6.25	28	33	12	1.62	24	450	1081
30	38.25	4	4	32.25	31.25		6.69	30	35.25	12.5	1.62	28	530	1302
32	40.75	4.25	4.25	34.38	33.25		7.06	32	37.5	13.25	1.75	28	635	1570
34	42.75	4.38	4.38	36.5	35.38		7.38	34	39.5	13.5	1.75	32	690	1781
36	45.5	4.69	4.69	38.62	37.5		7.88	36	42	14.5	1.88	28	855	2160
38	47.5	4.88	4.88	40.75	39.5		8.12	38	44	14.75	1.88	32	935	2450
40	50	5.12	5.12	43	41.5		8.5	40	46.25	15.5	2	32	1090	2848
42	52	5.25	5.25	45	43.62		8.81	42	48.25	15.75	2	32	1190	3159
44	54.5	5.5	5.5	47.25	45.62		9.18	44	50.5	16.5	2.12	32	1375	3635
46	56.75	5.75	5.75	49.5	47.75		9.62	46	52.75	17	2.12	36	1525	4120
48	59.5	6	6	51.5	49.88		10.12	48	55.25	18	2.38	28	1790	4726
50	61.75	6.19	6.25	53.62	52		10.56	50	57.5	18.5	2.38	32	1950	5303
52	63.75	6.38	6.44	55.62	54		10.88	52	59.5	18.75	2.38	32	2125	5823

26 Inch Nickel Alloy Flanges B16.47 Series Astm B564 Uns N04400

Astm B16.47 Nickel Alloy Flanges

Uns B564 Nickel Alloy Flanges

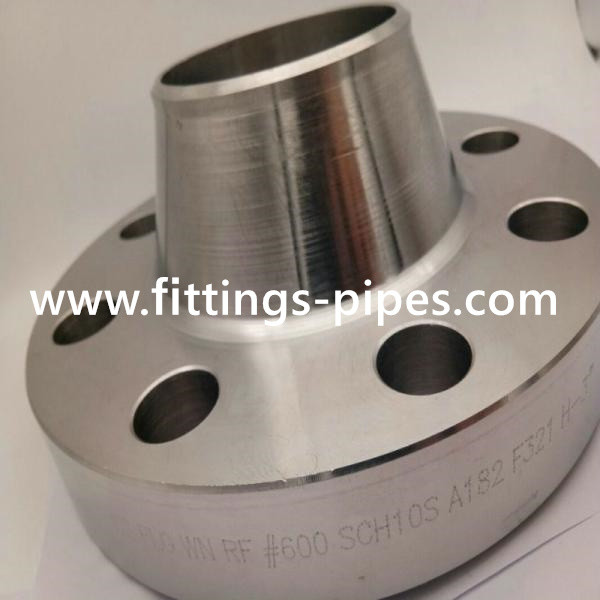

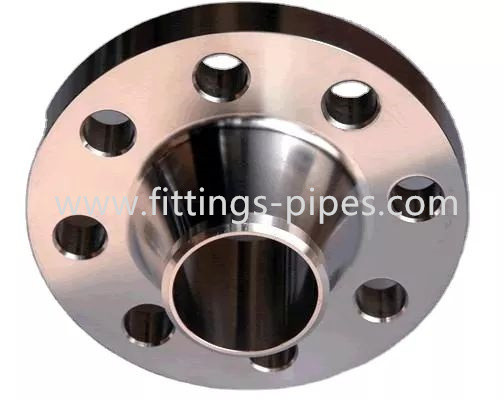

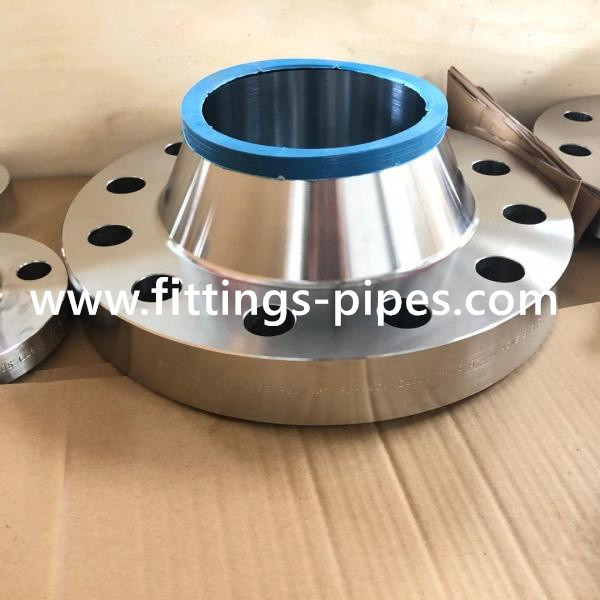

Monel 400 Wn Nickel Alloy Flanges 600# 26" B16.47 Series B Astm B564 Uns N04400 High Pressure Pipe Flanges

ASTM B564 UNS N04400 Monel 400 WN Nickel Alloy Flange 600# 26" B16.47 SERIES B
