Product Description

Detail Information
Payment Terms::	T/T, L/C, Western Union	OD:	15mm-6000mm
Pressure ::	Class150/300/600/9001500/2500,Class150,150#-2500#,5K-30K	Material ::	Stainless Steel,alloy Steel
Standard ::	ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, Etc.	Packaging Details ::	Wooden Box, Pallet Or According To Customer Requirements
Highlight:	Pn64 High Pressure Pipe Flanges , 10Inch High Pressure Pipe Flanges , 10 Inch Pipe Flanges N08820

Product Description

High Pressure Socket Welding Steel Pipe Flange Nickel Alloy B564 N08820 10" Pn64 High Pressure Pipe Flanges

Specifications	ASTM B564 / ASME SB564
Size	1/2″NB TO 60″NB
Standards	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Other Hastelloy C276 Flanges we have

Standard	Type	Class	Size
ASME B16.5	WN/LWN/SO/Blind/Lap Joint	150#-2500#	1/2"-24" (Except Blind Flange 2500lb 1/2"-12")
	SW flange	150#-1500#	1/2"-3" (Except 1500# 1/2"-2 1/2")
	Threaded	150#-900#	1/2"-24"
	Threaded	1500# 2500#	1/2"-2 1/2"
ASME B16.47 Series A	WN/blind flange	150# -900#	22"-48" (Except 900# Size:26"-48")
ASME B16.47 Series B	WN/blind flange	75#-300#	26"-48"
ASME B16.47 Series B	WN/blind flange	400# 600# 900#	26"-36"
DIN2527	Blind flange	PN6-PN100	DN10-DN1000
DIN2543	SO flange	PN16	DN10-DN1000
DIN2544	SO flange	PN25	DN10-DN1000
DIN2545	SO flange	PN40	DN10-DN500
DIN2565	Threaded flange with Neck	PN6	DN6-DN200
DIN2566	Threaded flange with Neck	PN16	DN6-DN150
DIN2567	Threaded flange with Neck	PN25 PN40	DN6-DN150
DIN2568	Threaded flange with Neck	PN64	DN10-DN150
DIN2569	Threaded flange with Neck	PN100	DN10-DN150
EN1092-1:2002	Plate flange for welding/ loose plate flange with weld-on plate collar or for lapped pipe end/Blind Flange/WN flange	PN2.5-PN100	DN10-DN4000
JIS B2220	Welding flange, lap joint flange, threaded flange	PN6-PN100	DN10-DN1500
BS4504 BS10 TableD/E	Plate Flange for welding/ WN flange/blank Flange	PN6-PN100	DN10-DN1500
Other Products	Anchor/swivel/girth/l ap joint/reducing/orifice
	Spectacle blind/paddle blind/ spacer ring/orifice plate/bleed ring
	Special Products: rings/ forgings/disc/shaft sleeves
Sealing Surface	RF FF RTJ TF GF LF LM
Flange Face Finish	Stock finish/spiral serrated/ concentric serrated/smooth finish (Ra 3.2 and 6.3 micrometers)
	125-250 AARH(it is called smooth finish)
	250-500 AARH(it is called stock finish)
Coating	Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade	Nickel Alloy Steel	ASTM/ASME B/SB564 UNS N02200(NICKEL 200), UNS N04400(MONEL 400),
		UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),
		UNS N06601(INCONEL 601), UNS N06625(INCONEL 625), UNS N10276(HASTELLOY C276),
		ASTM/ASME B/SB160 UNS N02201(NICKEL 201), ASTM B/SB472 UNS N08020(Alloy 20)
	Copper Alloy	ASTM/ASME B/SB151 UNS C70600(CuNi 90/10), C71500(CuNi 70/30)
	Stainless Steel	ASTM/ASME A/SA182 F304,304L,304H,309H,310H, 316,316H,316L,316LN,
	Stainless Steel	317,317L,321,321H,347,347H
	Duplex and Super Duplex Steel	ASTM/ASME A/SA182 F44,F45,F51,F53,F55,F60,F61
	Carbon steel	ASTM /ASME A/SA105(N)
	Low Temp Carbon Steel	ASTM/ASME A/SA350 LF2
	High Yield Carbon Steel	ASTM/ASME A/SA694 F52,F56 F60, F65, F70
	Alloy Steel	ASTM/ASME A/SA182 GR F5, F9, F11,F12,F22,F91
	Titanium	ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

About Hastelloy C276 Flanges

Hastelloy Alloy C276 Pipe Flanges Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C276	0.010max	1.00max	0.08max	0.03max	2.50max	50.99min	14.50–16.50	4.00–7.00	15.00–17.00	0.04 max

Hastelloy C276 Plate Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 1,15,000 , MPa – 790	Psi – 52,000 , MPa – 355	40 %

Equivalent Grades for C276 Hastelloy Industrial Pipe Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C276	2.4819	N10276	NW 0276	ХН65МВУ	NiMo16Cr15W	ЭП760

Hastelloy C276 Flanges Test Certificates

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,

• Raw Materials Certificate

• 100% Radiography Test Report

• Third Party Inspection Report, etc

Material Testing:

We at Ganpat Industrial Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area

• Hardness Test

• Chemical Analysis – Spectro Analysis

• Positive Material Identification – PMI Testing

• Flattening Test

• Micro and MacroTest

• Pitting Resistance Test

• Flaring Test

• Intergranular Corrosion (IGC) Test

ASME SB564 ASME B16.5 150#-2500# RAISED FACE HASTELLOY C276 FORGED SO FLANGE FAQ:

Q:How does your factory do regarding quality control?

A:Quality is priority. we always attach great importance to quality controlling from the beginning to the end.Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.

Q:May I have some samples before bulk order?

A:Yes, of course. samples are free but you have to pay the courier.

Q:Can we visit your Company?

A:Surely. Welcome to China and we will be honored to have a customer and friend.

Q:What is the payment terms?

A:T/T, L/C ,Western Union,etc.

Q:What's your delivery time?

A:For stocks, we can send the goods to loading port within 7 days after receiving your deposit.

For production period, it usually needs about 10days- 60days after receiving the deposit.

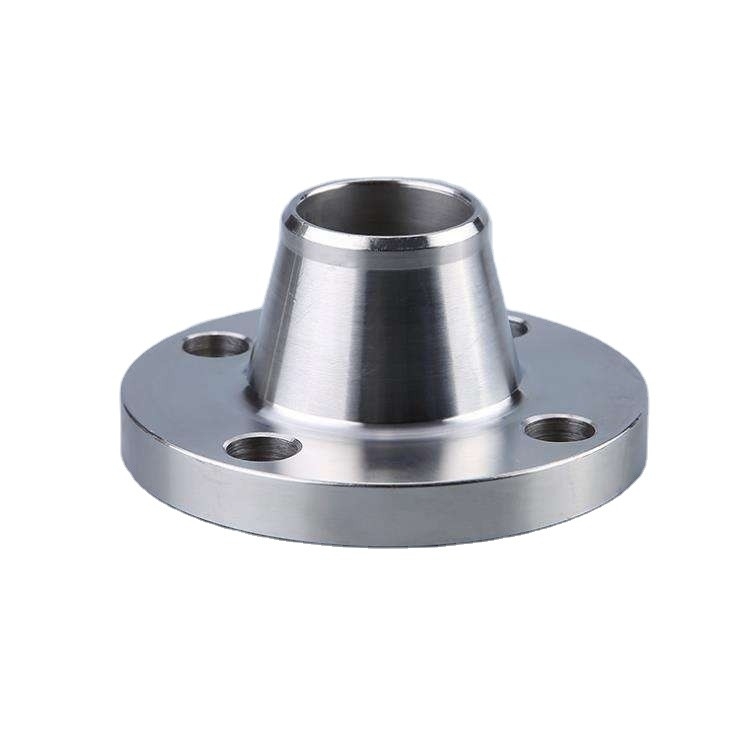

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 0

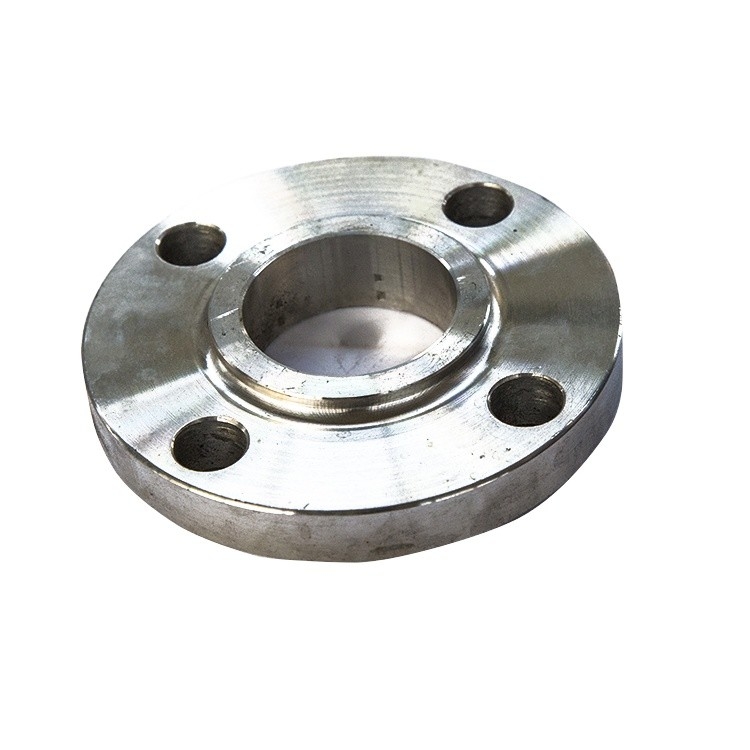

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 1

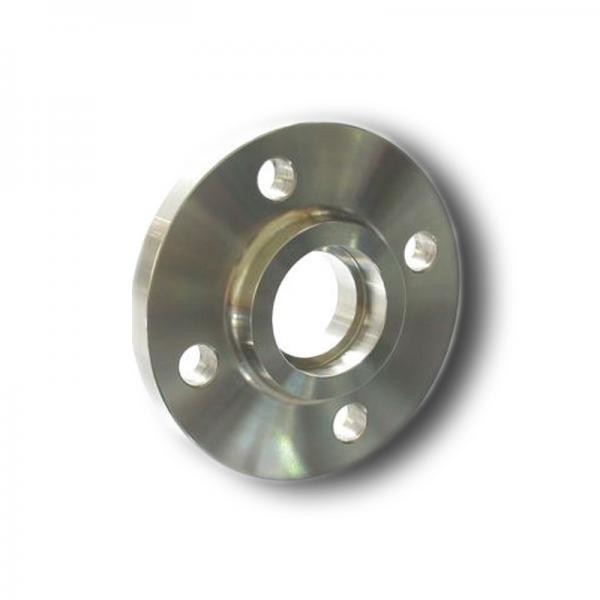

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 2

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 3

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 4

Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820 5
